Description

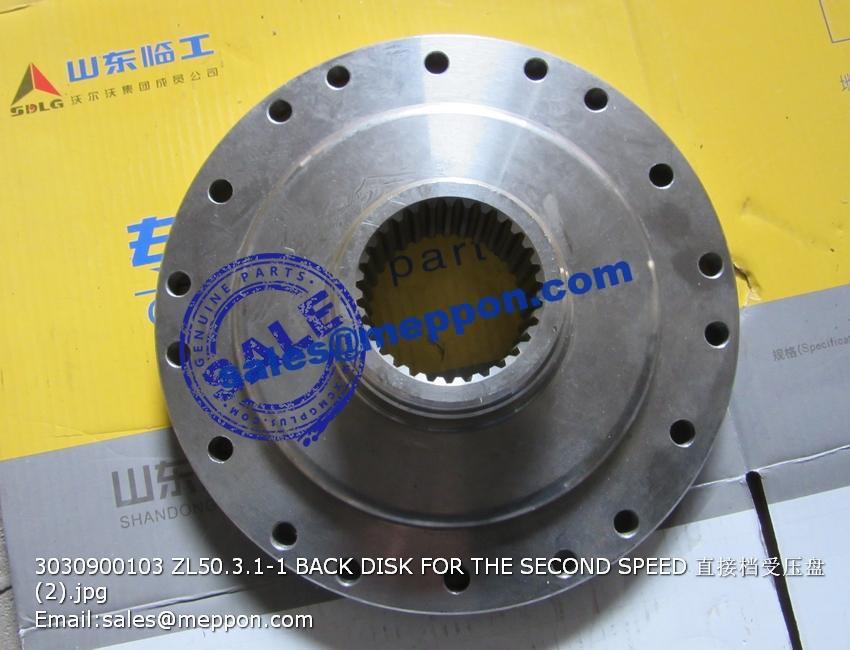

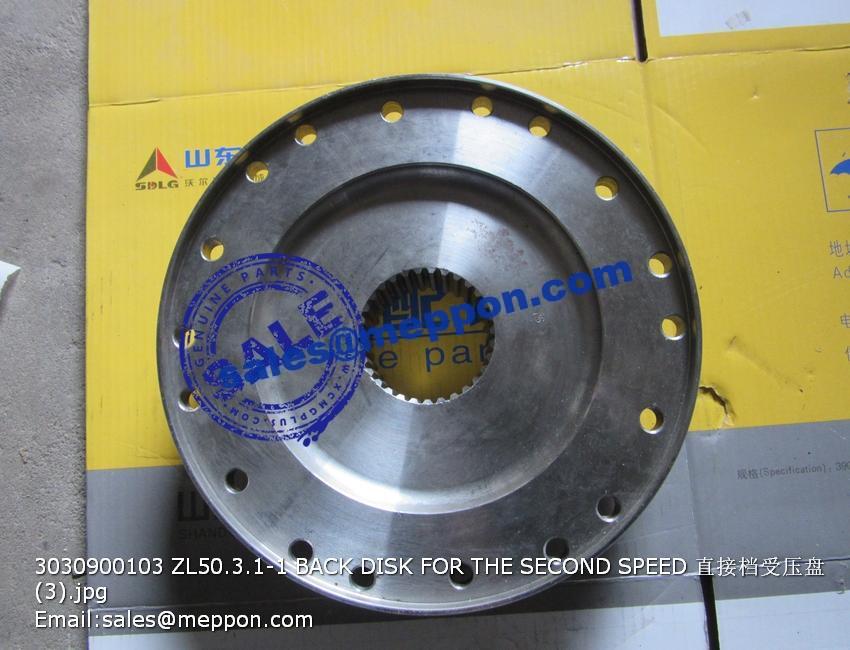

3030900103 ZL50.3.1-1 BACK DISK FOR THE SECOND SPEED

1 4021000015 滚动轴承GB276-6022 BALL BEARING GB276-6022 Y 1
2 3030900112 销 PIN Y 6
3 3030900103 直接档受压盘 BACK DISK FOR THE SECOND SPEED Y 1
4 4013000162 螺母GB6170-M8-8 NUT GB6170-M8-8 N 12
5 4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn N 12
6 2030900020 直接档主动片 DRIVE DISK ASS’Y FOR THE SECOND SPEED Y 2
7 3030900104 直接档轴 SHAFT FOR THE SECOND SPEED Y 1
8 3030900106 直接档从动片 DRIVEN DISK FOR THE SECOND SPEED Y 1
9 4011000105 螺栓GB5783-M8*20EpZn-8.8 BOLT GB5783-M8*20EpZn-8.8 N 12
10 4021000016 滚动轴承GB276-6204 BALL BEARING GB276-6204 Y 1
11 4015000023 挡圈GB894.1-65-65Mn RIONG SNAP GB894.1-65-65Mn N 1
12 3030900114 碟形弹簧 DISH SPRING Y 1
13 3030900107 直接档活塞 PISTION Y 1
14 3030900113 密封环 SEALING RING Y 1
15 3030900115 销 PIN Y 3
16 3030900109 直接档油缸 CYLINDER ASS’Y FOR THE SECOND SPEED Y 1
17 3030900108 中间输出齿轮 OUTPUT GEAR OF THE INTER-SHAFT Y 1
18 4021000024 滚动轴承GB276-6312 BALL BEARING GB276-6312 Y 1

19 3030900111 旋转油封 SEAL Y 1
20 4090000011 低碳钢丝GB343-1.6*200-SZ STEEL WIRE GB343-1.2*1200-SZ Y 1
21 3030900105 螺栓 BOLT M12X1.25X100 Y 12
22 4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn N 12
23 3030900110 旋转油封 SEAL Y 1
