Description

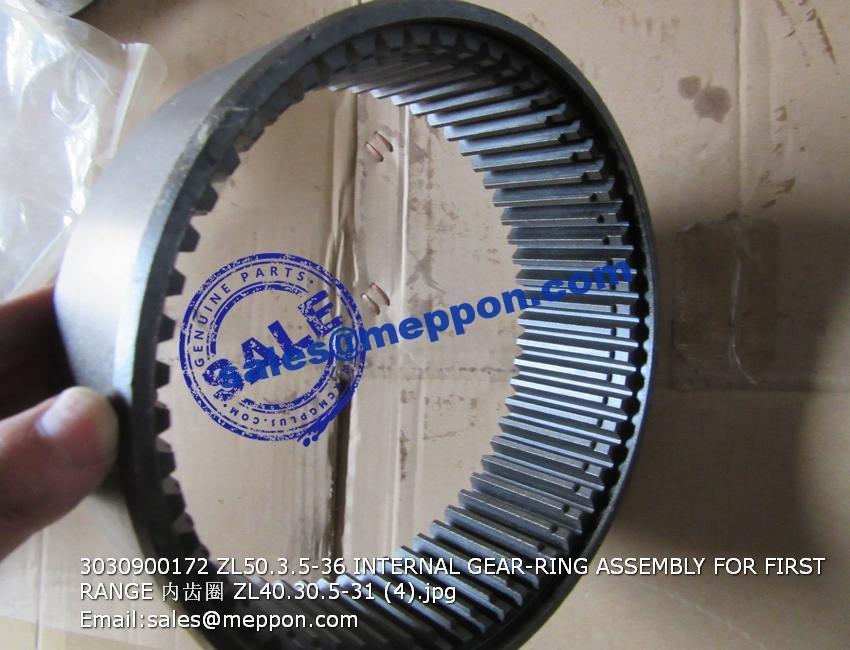

3030900172 ZL50.3.5-36 INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE ZL40.30.5-31

4110000042107 连接壳体4644 330 385 CONN. HOUSING 4644 330 385
7200001454 六角头螺钉0636 010 460 HEXAGON SCREW 0636 010 460
4110000042124 张紧销钉0631 329 100 SPANNSTIFT 0631 329 100
7200001456 张紧销钉0631 329 072 SPANNSTIFT 0631 329 072
7200001457 盖4139 301 485 COVER 4139 301 485
7200001458 隔板4644 330 239 MEMBRANE 4644 330 239
4110000042109 六角头螺钉9636 016 221 HEXAGON SCREW 9636 016 221
7200001460 垫圈4644 330 228 WASHER 4644 330 228
7200001461 垫圈0630 001 049 WASHER 0630 001 049
7200001462 垫圈4166 330 123 WASHER 4166 330 123
7200001463 O形圈0634 313 260 O-RING 0634 313 260
7200001464 卡环0630 502 015 RETAINING RING 0630 502 015
7200001465 盖4644 330 242 COVER 4644 330 242
7200001466 六角头螺钉0636 015 169 HEXAGON SCREW 0636 015 169
4110000042125 中间环4644 330 222 INTERM. RING 4644 330 222
7200001468 螺钉0636 900 127 CAP SCREW 0636 900 127
4110000042002 变矩器4168034034 CONVERTER 4168034034
7200001470 输入轴4644 302 188 INPUT SHAFT 4644 302 188
7200001471 弹性销0631 329 267 SLOT.PIN 0631 329 267
7200001472 弹性销0631 329 124 SLOT.PIN 0631 329 124
7200001473 滚珠轴承0750 116 139 BALL BEARIN 0750 116 139
7200001474 调整垫圈s=0.3 4607 302 033 SHIM S=0.3 4607 302 033
4110000042066 调整垫圈s=0.5 4607 302 034 SHIM S=0.5 4607 302 034
4110000042067 调整垫圈s=0.6 4607 302 014 SHIM S=0.6 4607 302 014
4110000042068 调整垫圈s=0.7 4607 302 013 SHIM S=0.7 4607 302 013
4110000042069 调整垫圈s=0.8 4607 302 012 SHIM S=0.8 4607 302 012
4110000042070 调整垫圈s=0.9 4607 302 011 SHIM S=0.9 4607 302 011
4110000042072 调整垫圈s=1.0 4607 302 010 SHIM S=1.0 4607 302 010
4110000042075 调整垫圈s=1.1 4607 302 009 SHIM S=1.1 4607 302 009
4110000042078 调整垫圈s=1.2 4607 302 008 SHIM S=1.2 4607 302 008
4110000042081 调整垫圈s=1.3 4607 302 007 SHIM S=1.3 4607 302 007
4110000042084 调整垫圈s=1.4 4607 302 006 SHIM S=1.4 4607 302 006
7200001475 卡环0630 501 031 RETAINING RING 0630 501 031
7200001476 齿轮4644 302 206 SPUR GEAR 4644 302 206
7200001477 滚子轴承0750 118 200 ROLLER BEARING 0750 118 200
7200001478 活塞密封环0734 317 252 PISTON RING 0734 317 252
7200001479 进油法兰4644 302 250 OIL FEED.FLANGE 4644 302 250
7200001480 密封垫4644 302 211 GASKET 4644 302 211
7200001481 轴承盖4642 301 136 BEARING COVER 4642 301 136
7200001482 密封垫4644 301 262 GASKET 4644 301 262
7200001483 六角头螺钉0636 015 092 HEXAGON SCREW 0636 015 092
7200001484 活塞密封环0734 401 078 PISTON RING 0734 401 078
7200001485 滚针套0735 298 027 NEEDLE SLEEVE 0735 298 027
7200001486 轴封0750 111 231 SHAFT SEAL 0750 111 231
7200001487 输出轴4644 311 239 OUTPUT SHAFT 4644 311 239
7200001488 活塞密封环0634 402 025 PISTON RING 0634 402 025
7200001489 密封垫4644 301 265 GASKET 4644 301 265
4110000042013 齿轮泵0899 005 052 GEAR PUMP 0899 005 052
7200001491 滚珠轴承0750 116 104 BALL BEARING 0750 116 104
7200001492 滑键0631 501 052 FITTING KEY 0631 501 052
7200001494 垫圈s=1.0 0730 001 591 WASHER S=1.0 0730 001 591
4110000042035 垫圈s=0.9 0730 001 592 WASHER S=0.9 0730 001 592
4110000042034 垫圈s=0.8 0730 001 593 WASHER S=0.8 0730 001 593
4110000042033 垫圈s=0.7 0730 001 594 WASHER S=0.7 0730 001 594
4110000042032 垫圈s=0.6 0730 001 595 WASHER S=0.6 0730 001 595
4110000042031 垫圈s=0.5 0730 001 596 WASHER S=0.5 0730 001 596
4110000042030 垫圈s=0.4 0730 001 597 WASHER S=0.4 0730 001 597
4110000042029 垫圈s=0.3 0730 001 598 WASHER S=0.3 0730 001 598
4110000042028 垫圈s=0.2 0730 001 599 WASHER S=0.2 0730 001 599
4110000042027 垫圈s=0.1 0730 001 600 WASHER S=0.1 0730 001 600
7200001495 六角头螺钉0636 010 111 HEXAGON SCREW 0636 010 111
7200001496 六角头螺钉0636 010 123 HEXAGON SCREW 0636 010 123
7200001497 卡环0630 501 024 REATAINING RING 0630 501 024
4110000042116 箱体4644 301 391 GEARBOX HOUSING 4644 301 391
7200001432 螺塞0636 302 027 SCREW PLUG 0636 302 027
7200001433 O形圈0634 304 275 O-RING 0634 304 275
4110000042111 铭牌0899 317 344 TYPE PLATE 0899 317 344
7200001435 铆钉0631 311 009 GROOVE STUD 0631 311 009
7200001436 螺塞0636 305 046 SCREW PLUG 0636 305 046
4110000042007 O形圈0634 306 522 O-RING 0634 306 522
7200001438 盖板4644 301 298 COVER PLATE 4644 301 298
7200001439 盖板4644 301 192 COVER PLATE 4644 301 192
7200001686 六角头螺钉0636 015 278 HEXAGON SCREW 0636 015 278
4110000042026 垫圈0630 001 012 WASHER 0630 001 012
7200001442 封盖4466 351 081 SEALING CAP 4466 351 081
7200001443 O形圈0634 306 525 O-RING 0634 306 525
7200001444 螺塞0636 305 026 SCREW PLUG 0636 305 026
7200001445 螺塞0636 305 019 SCREW PLUG 0636 305 019
7200001446 O形圈0634 303 233 O-RING 0634 303 233
7200001448 透气塞0750 131 027 BREATHER 0750 131 027
7200001449 挡板4644 301 279 SCREEN SHEET 4644 301 279
7200001450 环首螺栓0636 804 003 LIFT. EYE BOLT 0636 804 003
7200001451 封盖4644 301 088 SEALING CAP 4644 301 088
7200001515 轴4644 308 611 AXLE 4644 308 611
7200001516 O形圈0634 313 529 O-RING 0634 313 529
7200001517 止推垫圈4644 308 610 THRUST WASHER 4644 308 610
7200001518 中间齿轮4644 308 614 IDLER GEAR 4644 308 614
4110000042120 圆柱头螺钉0636 104 146 CAP SCREW 0636 104 146
7200001520 滚子组0750 119 101 ROLLER SET 0750 119 101
7200001521 密封垫圈0630 362 024 SEALING DISC 0630 362 024
7200001532 轴 4644 351 076 AXLE 4644 351 076
7200001533 O形圈(49*3)0634313536 O-RING (49*3)0634313536
7200001534 活塞密封圈 0734 401 106 PISTON RING 0734 401 106
7200001535 螺柱0636 610 026 STUD 0636 610 026
7200001674 螺柱0636 610 014 STUD 0636 610 014
7200001675 六角螺母 0637 006 018 HEXAGON NUT 0637 006 018
7200001621 调整垫圈s=0.4 0730 003 501 SHIM S=0.4 0730 003 501
4110000042052 调整垫圈s=0.6 0730 003 502 SHIM S=0.6 0730 003 502
4110000042053 调整垫圈s=0.8 0730 003 503 SHIM S=0.8 0730 003 503
