Description

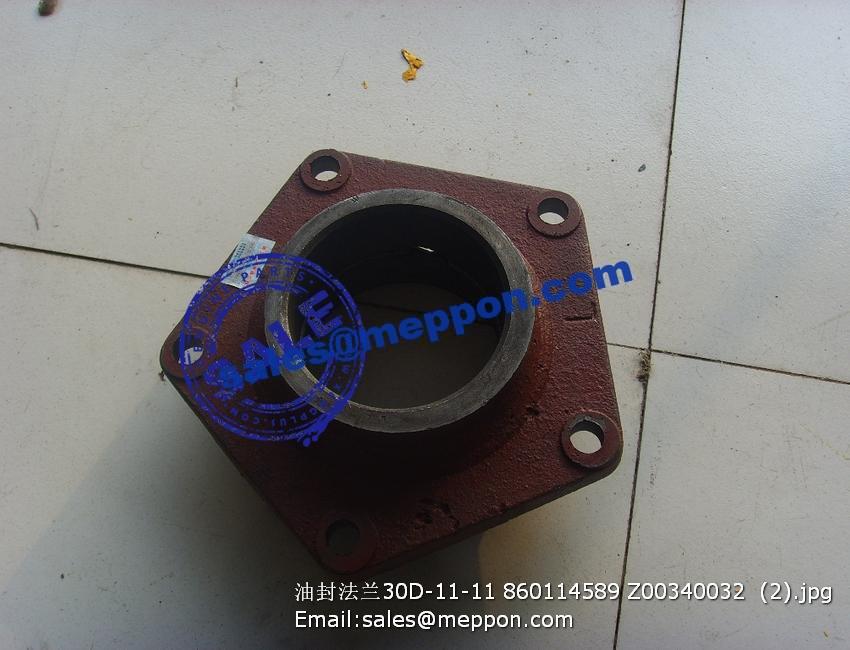

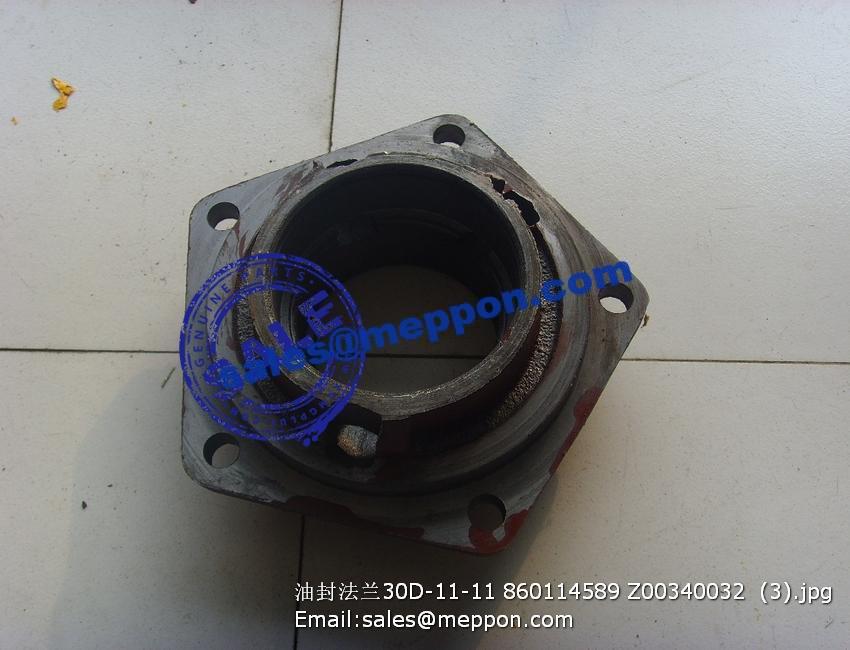

30D-11-11 860114589 Z00340032 4110000084119 58A0768 4110000084119 ZL30D-11-11 Oil Seal Flange
圆垫板 Round Plate 1 YJ315Y-00018
弹性板 Elastic Plate 2 YJ315Y-00002
垫片 Washer 4 YJ315Y-10001
罩轮 Cover Wheel 1 YJ315X-00002
滚针轴承4074106 Bearing 1 GB289-64
挡圈55 Ring 1 04065-05520
挡圈30 Ring 8 04064-03015
挡圈38 Ring 2 04064-03818
垫板 Washer 1 ZL30D-11-29
涡轮 Turbine 1 ZL30D-11-37
涡轮盘 Turbine Disc 1 ZL30D-11-28
挡圈60 Ring 1 04064-06020
导轮 Idle Pulley 1 ZL30D-11-27
O型圈338X3.55 O-ring 1 GB/3452.1-92
泵轮 Pump Wheel 1 YJ315X-00003
孔用挡圈110 Ring 2 GB893.1-86
轴承212 Bearing 1 GB276-89
O型圈130X3.1 O-ring 1 GB1235-76
泵轮座 Pump Wheel Seat 1 ZL30D-11-21
定位销 Position Pin 4 ZL30D-11-22
骨架油封 Frame Oil Seal 1 ZL30D-11-54
螺栓M10X30 Bolt 16 01010-51030
垫圈10 Washer 16 01602-21030
螺栓M6X10 Bolt 6 01023-30610
垫圈6 Washer 6 01602-20619
盖 Cover 1 YJ315X-00004
螺栓M12X25 Bolt 8 01010-51225
垫圈12 Washer 19 01602-21236
螺母M8 Nut 24 01508-10806
垫圈8 Washer 30 01602-20825
铆钉8X32 Rivet 1 04400-00832
销6X20 Pin 1 04025-00620
隔环 Ring 1 ZL30D-11-24
螺栓M8X35 Bolt 24 01010-50835
螺栓M8X20 Bolt 8 01010-50820
轻型弹簧垫圈8 Spring Washer 8 GB859-87
飞轮壳中节 Housing Body 1 YJ315X-00001
垫片 Washer 1 ZL30D-11-38
驱动油泵主动齿轮 Drive Gear 1 ZL30D-11-20
挡圈100 Ring 1 04064-01030
密封环80 Seal Ring 2 ZL30D-11-19
驱动油泵被动齿轮 Driven Gear 3 ZL30D-11-39
轴承206 Bearing 3 GB276-89
套 Sleeve 3 ZL30D-11-40
轴承50206 Bearing 3 GB277-64
止动环 Retaining Ring 3 ZL30D-11-04
垫片 Washer 3 ZL30D-11-03
挡圈68 Ring 3 04065-06825
驱动油泵轴 Pump Shaft 3 ZL30D-11-02
挡圈35 Ring 1 04064-03515
轴承307 Bearing 1 GB276-89
被动齿轮 Driven Gear 1 ZL30D-11-18
输出轴 Output Shaft 1 ZL30D-11-15
开口销5X45 Pin 1 GB91-86
挡圈90 Ring 1 04065-09030
轴承308 Bearing 1 GB276-89
密封垫 Seal Washer 1 ZL30D-11-07
油封法兰 Oil Seal Flange 1 ZL30D-11-11
油封55X82X22 Oil Seal 2 NJ130-2402025
输出法兰 Output flange 1 ZL30D-11-12
垫圈 Washer 1 ZL30D-11-13
密封垫 Seal Washer 1 ZL30D-11-17
垫圈 Washer 1 ZL30D-11-16
螺栓M12X30 Bolt 11 01010-51230
导轮座 Idler Pulley Seat 1 ZL30D-11-05
套 Sleeve 1 ZL30D-11-10
主动轴 Shaft 1 ZL30D-11-09
密封环60 Seal Ring 1 ZL30D-11-08
轴承310 Bearing 1 GB276-89
变矩器壳体 Torque Converter Housing 1 ZL30D-11-01
铆钉3X6 Rivet 4 04418-03060
标牌 Decal 1 09607-05080
吊环螺钉M16 Screw 1 GB/T825-88
主动齿轮 Gear 1 ZL30D-11-06
挡圈48 Ring 1 GB/T94-86
密封圈 Seal Ring 6 YJ315X-00009Z
减压阀 Pressure Reduction Valve 1 YJ320-01000Z
溢流阀 Overflow Valve 1 YJ315X-2
六角槽形螺母 Nut 1 ZL30D-11-14
