Description

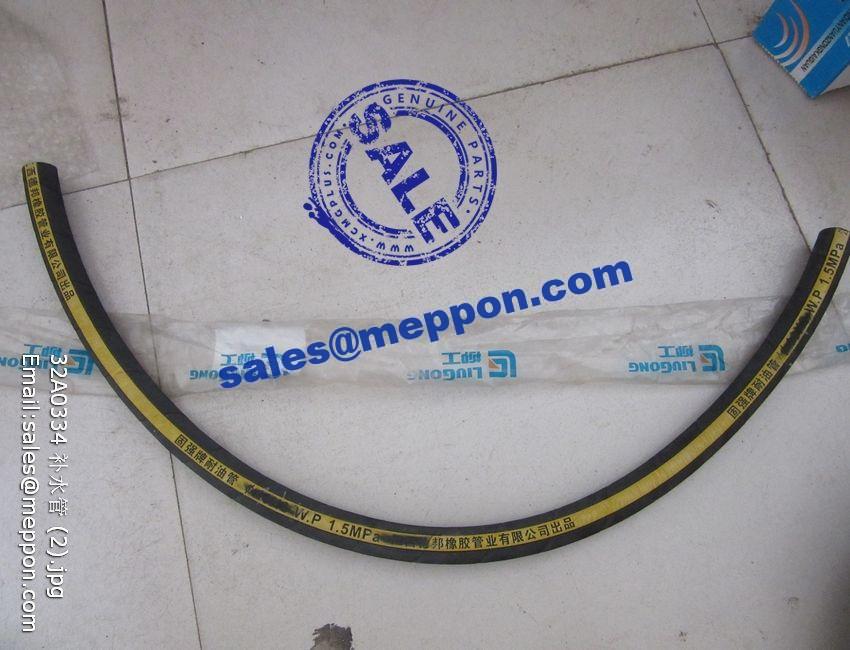

32A0334 HOSE LIUGONG CLG835 PARTS
1 S00010525 机体装配部件 CYLINDER BLOCK ASSY 1
2 G02-115-01 凸轮轴轴承 BUSHING, CAMSHAFT 7
3 S00011483 机体机加工部件 CYLINDER BLOCK ASSY (MACHINED) 1
4 G02-111-01 主轴承螺栓 BOLT, MAIN BEARING 14
5 G02-134-01 定位销 DOWEL PIN 1
6 B00001695 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 1 Q/SC584.1-R1/2/B2
7 B00001697 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 5 Q/SC584.1-R1/4/B2
8 G02-173-01 闷头 PLUG 4
9 761G-04-052D 闷头 PLUG 7
10 D02A-310-01 闷头(φ20) PLUG 1
11 S00011414 气缸盖垫片【Ｇ１２８】 GASKET, CYLINDER HEAD 1
12 761W-02-064A 定位套筒 RETAINER SLEEVE 2
13 S00008188 气缸盖螺栓 BOLT, CYLINDER HEAD 38
14 S00008189 气缸盖螺母 NUT, CYLINDER HEAD 38
15 761-02-003B 封水圈 SEAL, CYLINDER LINER 12
16 G02-117-01 防穴蚀封水圈 SEAL, CYLINDER LINER 6
17 G02-102-01 气缸套 CYLINDER LINER 6
18 B00001698 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 1 Q/SC584.1-R1/8
1 G02-113-01 主轴承下瓦 MAIN BEARING HALF(LOWER) 7
2 G02-112-01 主轴承上瓦 MAIN BEARING HALF(UPPER) 7
3 B00000102 圆柱销 PARALLEL PINS 4 GB/T119-A12*24
4 G02-138-03 支架 BRACKRT 2
5 B00004830 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 GB/T16674.2-M14*1.5*30
6 B00001725 六角头螺塞 HEXAGONAL HEAD SCREW PLUG 1 Q/SC587.1-M12*1.25
7 B00001821 铜垫圈 COPPER WASHER 1 Q/SC598-12*24
8 B00001833 铜垫圈 COPPER WASHER 1 Q/SC598-18*28
9 B00001728 六角头螺塞 HEXAGONAL HEAD SCREW PLUG 1 Q/SC587.1-M18*1.5
10 G02-114-01 曲轴推力轴承 THRUST BEARING,CRANKSHAFT 4
11 B00004884 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 GB/T16674.1-M8*16-F
12 S00024767 加油口盖板 COVER,OIL FILLER PORT 1
13 D12-314-01 O型橡胶密封圈 O-RING 2
14 S00018399 加油盖部件 COVER ASSY, OIL FILLER 1
15 B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 4 Q/SC622-M8*20
16 S00014680 加油弯管 PIPE ELBOW, OIL FILLER 1
17 S00006214 活塞冷却喷嘴部件 ORIFICE ASSY, PISTON COOLING JET 6
18 S00000193 机体底板 BEDPLATE, CYLINDER BLOCK 1
19 B00002047 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 14 Q/SC622-M12*25
