Description

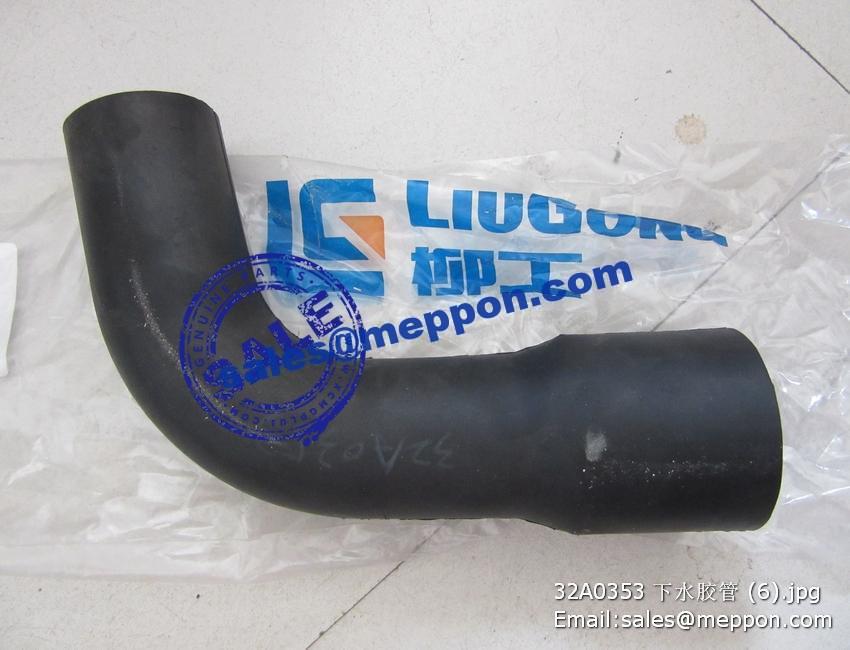

32A0353 LIUGONG CLG835 WHEEL LOADER HOSE

1 B00000102 圆柱销 PARALLEL PINS 4 GB/T119-A12*24
2 S00011666 隔圈 SPACER RING 2
3 S00009003 齿轮室 HOUSING, GEAR 1
4 B00001999 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 14 Q/SC622-M10*25
5 S00009002 齿轮室盖板 PLATE, GEAR HOUSING COVER 1
6 B00002137 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*25
7 G02-119-02 前油封 CRANKSHAFT SEAL, FRONT 1
8 B00001989 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M10*100
9 B00002139 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 15 Q/SC622-M8*30
11 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*30
12 S00010452 油气分离器部件 CRANKCASE VENT FILTER ASSY 1
13 B00001563 喉箍 CLAMP 4 Q/SC1302-16~25
14 S00007507 油气分离器回油橡胶管 BLOW-BY FILTER HOSE 1
15 S00010487 油气分离器回油管 OIL RETURN PIPE, CRANKCASE VENT FILTER 1
16 S00000996 增压器回油橡胶管 TURBOCHARGER OIL RETURN HOSE 1
17 B00001571 喉箍 CLAMP 2 Q/SC1302-27~51
18 B00002365 橡胶水管 RUBBER HOSE, WATER 1 Q/SC646-38*100
19 S00015700 油气分离器出气管焊接部件 AIR OUTLET PIPE ASSY (WELDED), CRANKCASE VENT FILTER 1
20 B00000833 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 1 GB/T6177-M10-Y

1 S00010614 气缸盖机加工部件 CYLINDER HEAD ASSY (MACHINED) 1
2 761G-04-052D 闷头 PLUG 8
3 761Z-04-008A 进气门导管 VALVE GUIDE 6
4 761G-04-101A 气门导管 VALVE GUIDE 6
5 761G-04-073A 水孔套筒 SLEEVE 6
6 A761Z-04-004 进气门 VALVE, INTAKE 6
7 G04-104-02 排气门 VALVE, EXHAUST 6
8 B00000122 圆柱销 PARALLEL PINS 6 GB/T119-A6*18
9 S00010112 摇臂及摇臂轴装配部件 ROCKER ARM AND SHAFT ASSY 3
10 B00001696 内六角锥形螺塞 INNER HEXAGON TAPERED SCREW PLUG 6 Q/SC584.1-R1/4
11 B00000114 圆柱销 PARALLEL PINS 3 GB/T119-A3*8
12 B00000799 I型六角螺母 细牙 HEXAGON NUTS, STYLE 1, WITH FINE PITCH THREAD 12 GB/T6171-M12*1.25-10-Y
13 761-04-024B 气门间隙调整螺栓 VALVE LASH ADJUSTER 12
14 B00001555 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 9 Q/SC1294-8
15 765IA-04-003 管接头 JOINT ELBOW 3
16 765IA-04-020A 油管焊接部件 OIL PIPE ASSY (WELDED) 3
17 B00005711 铰接螺栓 HINGE BOLT 3 Q/SC642.1-01-M8*1*23-ZN.D
18 B00001131 双头螺柱 STUD 6 GB/T899-GM12-M12*90-8.8-Y
19 B00000836 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 12 GB/T6177-M12-Y
20 761W-04-008B 螺柱 STUD 6
21 S00021043 气缸盖罩 VALVE COVER 3
22 S00021345 气缸盖罩壳密封圈 VALVE COVER RING 3
23 761G-04-079A 垫片 GASKET 6
24 761G-04-078A 垫圈 WASHER 6
25 761G-04-092C 盖形螺母 ACORA NUTS 6
26 761G-04-104A 气门杆密封圈 VALVE STEM SEAL 6
27 761G-04-091A 锁簧 LOCK SPRING 12
28 763C-04-006A 气门小弹簧 VALVE SPRING 12
29 763C-04-007A 气门大弹簧 VALVE SPRING 12
30 763C-04-013 气门弹簧上座 VALVE SPRING RETAINER 6
31 761-04-034A 气门锁夹 VALVE COLLET 24
32 761Z-04-060 气门旋转器装配部件 VALVE ROTOCOLL ASSY 6
33 761JZ-04-003 进气门弹簧上座 VALVE SPRING RETAINER, INTAKE 6
34 S00008615 进气门座圈 VALVE SEAT INERT, INTAKE 6
35 S00008616 排气门座圈 VALVE SEAT INSERT, EXHAUST 6
