Description

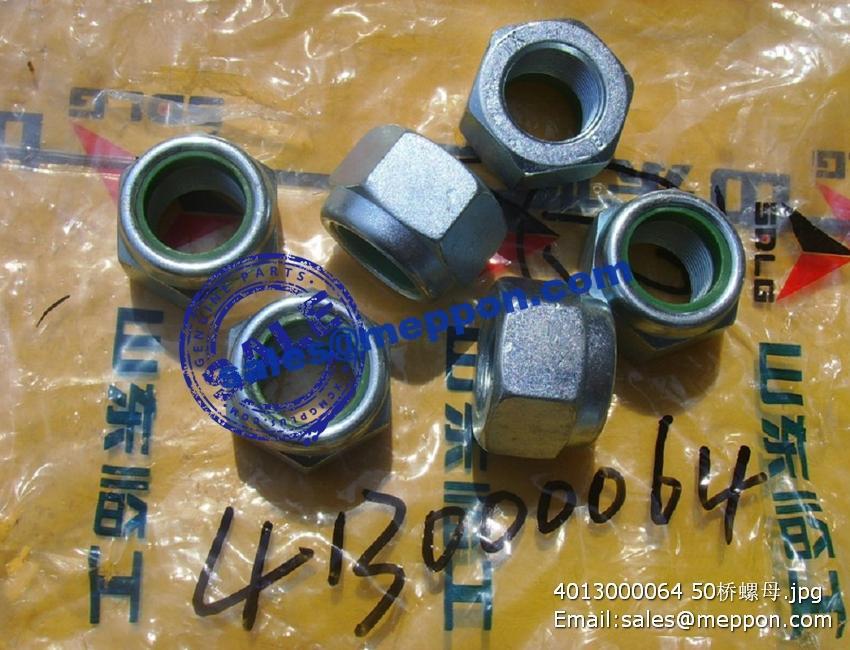

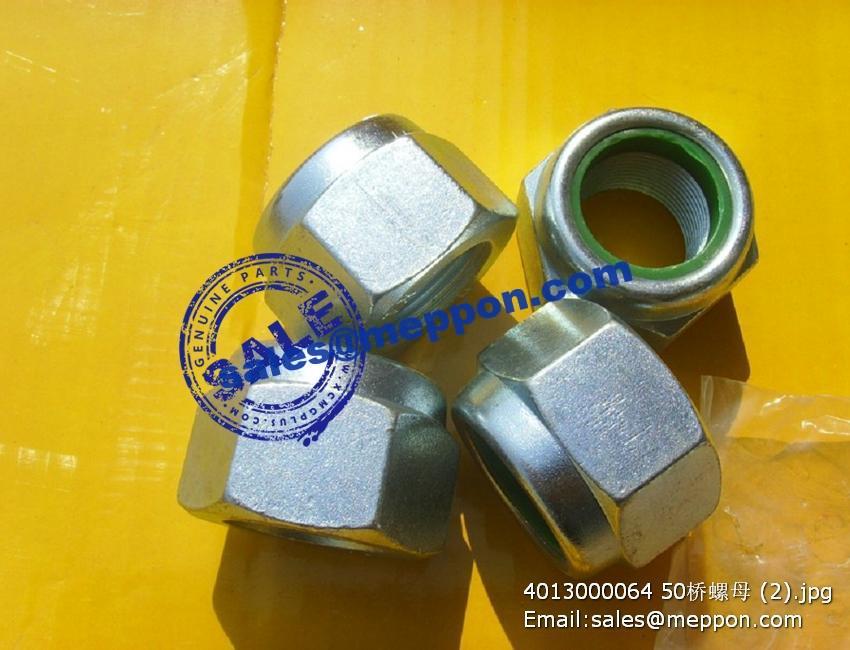

4013000064 SDLG AXLE NUT

4110000076186 阀芯4642306096 VALVE CORE 4642 306 096
4110000076175 挡销4620306252 BACKING PIN 4620 306 252
4110000076216 O 形圈0634303118 O-RING 0634 303 118
4110000076318 盖4620 306 415 COVER 4620 306 415
4110000076179 纸垫4620306479 GASKET 4620 306 479
4110000367141 六角头螺栓 0636 015 244 M5*18 DIN933 8.8 HEX. BOLT 0636 015 244 M5*18 DIN933 8.8
4110000076001 电磁阀0501315338 SOLENOID VALVE 0501 315 338
4110000367147 内六角头螺栓 0636 101 129 M5*12 DIN912 8.8 SOCKET BOLT 0636 101 129 M5*12 DIN912 8.8
4015000286 垫圈GB859-5-65Mn SPRING WASHER GB859-5-65Mn
4110000076390 电缆组件6029 241 303 CABLE SET 6029 241 303
4014000191 螺钉GB65-M4*12-4.8 SLOTTED SCREW GB65-M4*12-4.8
4110000367119 鞍型弹性垫圈 0630 302 076 SADDLE FLEXIBLE WASHER 0630 302 076
4110000076303 电磁阀罩壳 4620 306 259 SOLENOID VALVE HOUSING 4620 306 259
4110000076129 O形圈O634303951 O-RING 0634 303 951
4110000076171 弓夹4620306241 CLAMP 4620 306 241
4030000311 螺塞JB1000-M10*1EpZn-35 PLUG JB1000-M10*1EpZn-35
4110000076224 紫铜垫圈 0634 801 152 A10*13.5 DIN7603 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4110000076351 箱体 YD13 301 001 (500) HOUSING YD13 301 001 (500)
4110000076239 螺塞 M26*1.50636305019 PLUG 0636 305 019 AM26*1.5
4110000076013 O形圈 0634 303 233 H 23*2 O-RING 0634 303 233 H 23*2
4110000076284 变速器铭牌 403091A NAME PLATE 403091A
4019000012 铆钉GB827-3*5-BL2 RIVET GB827-3*5-BL2
4110000076237 螺塞 AM14*1.50636305007 PLUG SCREW 0636 305 007 AM14*1.5
4110000076014 O形圈 0634 306 522 11*2 O-RING 0634 306 522 11*2
4110000076297 挡板 YD13 301 002 BAFFLE YD13 301 002
4110000076300 挡油盘 YD13 301 003 SLINGER YD13 301 003
4011000632 螺栓GB5783-M8*16-8.8 BOLT GB5783-M8*16-8.8
4015000251 P垫圈GB848-8EpZn-300HV WASHER GB848-8EpZn-300HV
4110000076333 密封罩 4466 351 081Φ80 SEALING COVER 4466 351 081Φ80
4110000076015 O形圈 0634 304 275 27*2 O-RING 0634 304 275 27*2
4110000076240 螺塞 M30*1.50636305023 PLUG SCREW 0636 305 023 AM30*1.5
4110000076240 螺塞 M30*1.50636305023 PLUG SCREW 0636 305 023 AM30*1.5
4110000076015 O形圈 0634 304 275 27*2 O-RING 0634 304 275 27*2
4110000076331 螺塞 0637 510 206 M30*1.5 PLUG SCREW 0637 510 206 M30*1.5
4110000076157 通气帽 0750 131 027 BREATHER CAP 0750 131 027
4110000076337 润滑进油盖 YD13 301 004 LUBE-IN COVER YD13 301 004
4110000076046 O形圈 0634 313 529 57*3 O-RING 0634 313 529 57*3
4011000591 螺栓GB5782-M8*70EpZn-8.8 BOLT GB5782-M8*70EpZn-8.8
4110000076277 进油端盖 YD13 301 007 OIL-IN COVER YD13 301 007
4110000076018 纸垫 YD13 301 008 GASKET YD13 301 008
4011000723 螺栓GB5783-M8*20-8.8 BOLT GB5783-M8*20-8.8
4110000076332 螺塞 0636 305 011 AM18*1.5 PLUG SCREW 0636 305 011 AM18*1.5
4110000076019 O形圈 0636 306 524 15*2 O-RING 0636 306 524 15*2
4014000029 螺钉GB825-M16EpZn-20 SCREW GB825-M16EpZn-20
4.11E+12 涡轮轴 YD13 302 002 TURBINE SHAFT YD13 302 002
4021000021 滚动轴承GB276-6308 ROLLING BEARING GB276-6308
4110000076269 调整垫片0769120427 REGULATING SHIM 0769 120 427
4110000076210 轴用挡圈0630 501 031 40*1.75 RETAINING RING 0630 501 031 40*1.75
4110000076342 输入齿轮YD13 302 004 Z=50 INPUT GEAR YD13 302 004 Z=50
4021000182 轴承GB283-NJ209E BEARING GB283-NJ209E
4110000076256 搭扣密封环0734317252 SEALING RING 0734 317 252
4110000076335 配油法兰YD13 302 001 OIL FEED FLANGE YD13 302 001
4110000076024 纸垫 4644 302 211 GASKET 4644 302 211
4110000076025 泵轮轴承座4642 301 136 BEARING SEAT 4642 301 136
4110000076357 纸垫 YD13 302 005 GASKETYD13 302 005
4011000724 螺栓GB5783-M8*25-8.8 BOLT GB5783-M8*25-8.8
4110000076027 搭扣密封环0734 401 078 SEALING RING 0734 401 078
4110000076028 滚针轴承0735 298 027 HK75*83*16 NEEDLE BEARING 0735 298 027 HK75*83*16
4110000076367 轴用密封圈 0750 111 231 75*100*10 SEALING RING FOR SHAFT 0750 111 231 75×100×10
4110000076317 辅助驱动轴 YD13 302 003 STAND-BY DRIVE SHAFT YD13 302 003
4110000076030 搭扣密封环 0634 402 025 SEALING RING 0634 402 025
4110000076031 纸垫 4644 301 265 GASKET 4644 301 265
4110000076032 齿轮泵O501004171 GEAR PUMP 0501 004 171
4021000106 P滚动轴承GB276-6206 BEARING GB276-6206
4022000018 键GB1096-6*22-35 KEY GB1096-6*22-35
4021000106 P滚动轴承GB276-6206 BEARING GB276-6206
4011000303 螺栓GB5782-M8*85EpZn-8.8 BOLT GB5782-M8*85EpZn-8.8
4011000588 螺栓GB5782-M8*110EpZn-8.8 BOLT GB5782-M8*110EpZn-8.8
4110000076209 轴用挡圈0630 501 024 30*1.5 RETAINING RING 0630 501 024 30*1.5
4110000076282 变速箱密封垫（全套）-杭齿 SEALING SPACER(FULL SET)
4.11E+12 输出轴 YD13 303 001 OUTPUT SHAFT YD13 303 001
4110000076338 输出齿轮 YD13 303 003 Z=53 OUTPUT GEAR YD13 303 003 Z=53
4021000164 P轴承GB283-NJ213E BEARING GB283-NJ213E
4110000076309 调整垫片 1204 308 062 REGULATING SHIM 1204 308 062
4110000076170 压板4620303247 PRESS PLATE 4620 303 247
4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8
4110000076369 螺栓锁片 1269 302 164 BOLT RETAINER 1269 302 164
4110000076366 轴用密封圈0750 111 116 WTB,90*120*13 STAND-BY DRIVE SHAFT 0750 111 116 WTB,90*120*13
4021000023 滚动轴承GB276-6311 BEARING GB276-6311
4110000076213 孔用挡圈0630 502 048 120*4 RETAINING RING FOR HOLE 0630 502 048 120*4
4110000076268 调整垫片0769120338 REGULATING SHIM 0769 120 338
4110000076245 轴套 0730 062 296 L=20 SLEEVE 0730 062 296 L=20
4110000076339 输出法兰YD13 303 012 (SAE 7C) OUTPUT FLANGE YD13 303 012 (SAE 7C)
4110000076181 下隔板4642306050 LOWER BAFFLE 4642 306 050
4110000076040 密封垫4644306464 SEALING PAD 4644 306 464
4110000076041 密封垫4644306466 SEALING PAD 4644 306 466
4110000076343 输油板 4642 306 149 OIL-LINE PLATE 4642 306 149
4110000076325 节流嘴 4642 306 089 THROTTLE NOZZLE 4642 306 089
4110000076042 钢球O635460027 STEEL BALL 0635 460 027
4110000076252 弹簧0732041226 SPRING 0732 041 226
4011000448 螺钉GB70.1-M8*30EpZn-8.8 SCREW GB70.1-M8*30EpZn-8.8
4014000190 螺钉GB70.1-M8*45EpZn-8.8 SCREW GB70.1-M8*45EpZn-8.8
4014000116 螺钉GB70.1-M8*35EpZn-8.8 SCREW GB70.1-M8*35EpZn-8.8
4110000076187 上隔板4642306163 UPPER BAFFLE 4642 306 163
4110000076043 密封垫4642306318 SEALING PAD 4642 306 318
4110000076044 密封垫4642306320 SEALING PAD 4642 306 320
4014000190 螺钉GB70.1-M8*45EpZn-8.8 SCREW GB70.1-M8*45EpZn-8.8
4014000187 螺钉GB70.1-M8*75EpZn-8.8 SCREW GB70.1-M8*75EpZn-8.8
4030000311 螺塞JB1000-M10*1EpZn-35 PLUG JB1000-M10*1EpZn-35
4110000076224 紫铜垫圈 0634 801 152 A10*13.5 DIN7603 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4110000076214 紧定螺钉0631 610 025 M10*10 DIN913 10.9 SET SCREW 0631 610 025 M10*10 DIN913 10.9
4110000076224 紫铜垫圈 0634 801 152 A10*13.5 DIN7603 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4030000311 螺塞JB1000-M10*1EpZn-35 PLUG JB1000-M10*1EpZn-35
4110000076224 紫铜垫圈 0634 801 152 A10*13.5 DIN7603 COPPER SCREW 0634 801 152 A10*13.5 DIN7603
4110000076281 变速操纵阀密封垫（全套）-杭齿 SEALING SPACER(FULL SET)
4110000076391 输油板组件（含上、下隔板） OIL-LINE PLATE ASSEMBLY
