Description

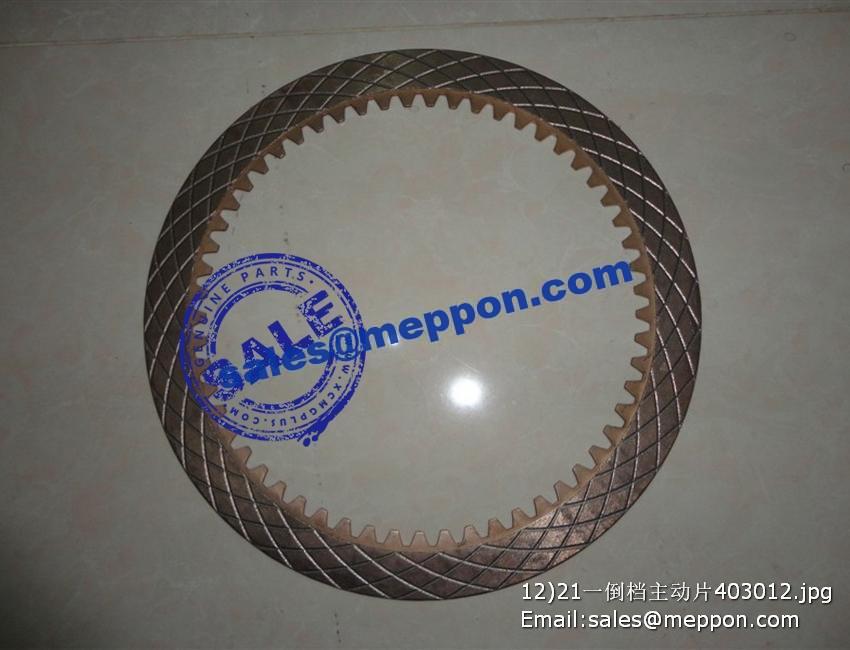

403012 403012-013 LG853.03.01.07 36280000002 The reverse 1st gear drive plat assembly 4110000184187 4110000184077 SP103445 42C0011

1 51204101214 螺栓 M10×30 Bolt M10×30 8.8 38 GB/T5783
2 51401100107 垫圈 10 Washer 10 78 GB/T93
3 36201100013 密封垫片 Seal gasket 1 LG853.03.01-012
4 60101101096 轴承 6210N Bearing 6210N 2 LG-6210N
5 51453580107 挡圈 90 Retaining ring 90 2 GB/T894.1
6 36201100014 转向泵驱动齿轮 Drive gear of steering pump 1 LG853.03.01-013
7 36201100015 转向油泵驱动轴 Drive shaft of steering oil pump 1 LG853.03.01-014
8 51574011101 平键 14×9×36 Flat key 14×9×36 1 GB/T1096
9 60101101098 轴承 6211 Bearing 6211 1 LG-6211
10 36201100016 轴承套 Bearing sleeve 1 LG853.03.01-015
11 36212000001 二轴总成 The Second shaft assembly 1 LG853.03.01.02
12 51513131703 圆柱销 10×30 Cylindrical pin 10×30 2 GB/T119.1
13 36201100018 圆柱堵塞 Cylinder block 1 LG853.03.01-017
14 36100100011 螺塞 Plug screw 1 LG853.02.01-011
15 51512071001 开口销 2.5×20 Cotter pin 2.5×20 1 GB/T91
16 51330000419 螺母 M10 Nut M10 8 1 GB/T6181
17 36224000001 透气阀总成 Vent valve assembly 1 LG853.03.01.12
18 36201100028 挡板 Baffle 1 LG853.03.01-028
