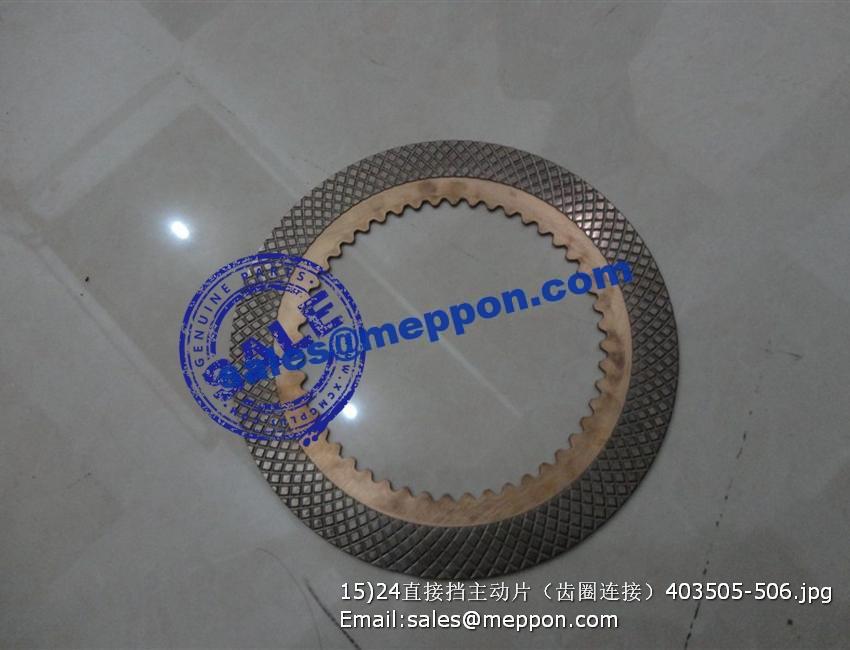

403505-506 LG853.03.01.05.01 36213000002 Direct speed driving disc

403505-506 LG853.03.01.05.01 36213000002 Direct speed driving disc

Description

403505-506 LG853.03.01.05.01 36213000002 Direct speed driving disc

55 36217000001 摩擦片隔离架总成 Bracket assembly of brake plate 1 LG853.03.01.08
56 36201100008 倒挡一挡从动片 The 1st reserve gear drive plate 10 LG853.03.01-007
57 36204000002 倒挡活塞总成 Reserve gear piston assembly 1 LG853.03.01.09
58 51204101114 螺栓 M10×25 Bolt M10×25 8.8 14 GB/T5783
59 36216000001 油底板总成 Oil pan assembly 1 LG853.03.01.04
60 60980000033 检油塞 Z1/4 Check oil driven plug Z1/4 2 T305C-010
61 56146014501 O 形圈 45×3.5 O-ring 45×3.5 1 GB/T1235-76
62 36221000013 加油管 B 组件 Oil filler tube assembly B 1 LG855.03.01.14.02
63 51203102014 螺栓 M10×70 Bolt M10×70 8.8 12 GB/T5782
64 51203101914 螺栓 M10×65 Bolt M10×65 8.8 1 GB/T5782
65 36201100020 压板 Press plate 2 LG853.03.01-019
66 60300000541 操纵阀(不带切断阀) Control valve(Without shut-off valve) 1 LG853.03.01.13B
67 36201100019 密封垫 Seal gasket 1 LG853.03.01-018
68 51203141414 螺栓 M18×40 Bolt M18×40 8.8 8 GB/T5782
69 36201100010 圆柱销 Cylindrical pin 1 LG853.03.01-009
70 36100100004 管接头 Pipe joint 2 LG853.02.01-005
71 36100100003 铜垫圈 Copper washer 3 LG853.02.01-004
72 51451580107 挡圈 90 Retaining ring 90 1 GB/T893.1
