Description

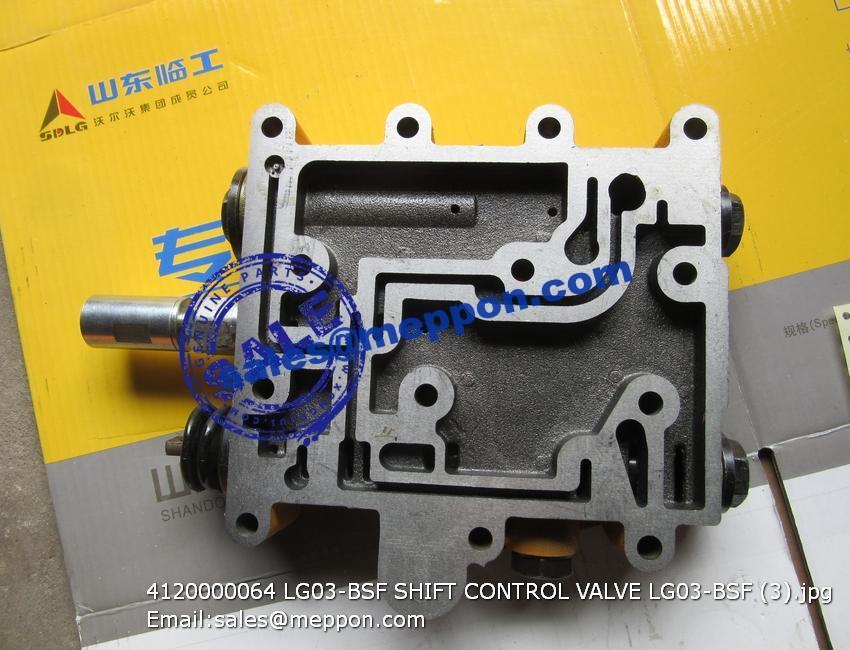

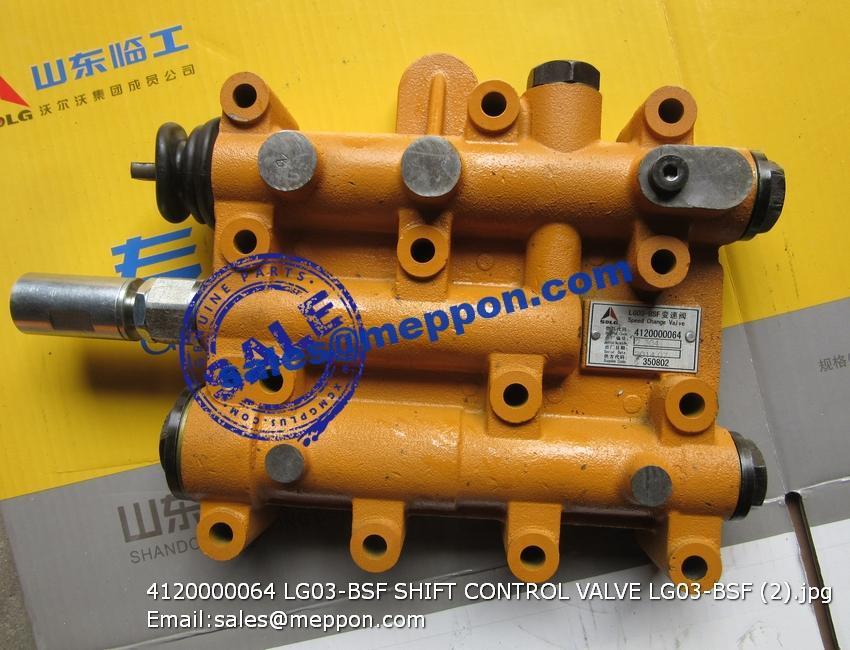

4120000064 SHIFT CONTROL VALVE LG03-BSF lg936l lg956l spare parts
1 4011000174 螺栓GB21-M10*70EpZn-8.8 BOLT GB21-M10*70EpZn-8.8 N 13
2 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 21
3 4120000064 变速操纵阀LG03-BSF SHIFT CONTROL VALVE LG03-BSF Y 1
4 29050011381 密封垫 GASKET Y 1
5 4120000125 接头体GB3733.2-G28EpZn-35 JOINT BODY GB3733.2-G28EpZn-35 Y 4
6 4030000013 O形圈GB1235-32*3.1 O-RING GB1235-32*3.1 Y 4
7 4120000345 螺塞Q/ZB286-ZG1/2″-Q235A PLUG SCREW Q/ZB286-ZG1/2″-Q235A Y 1
8 4014000030 吊环螺钉GB825-M20EpZn-20 SCREW GB825-M20EpZn-20 N 2
9 29050000061 透气管 PERMEABILITY CELL Y 1
10 29050000051 透气盖总成 COVER ASSEMBLY Y 1
11 29050011361 密封垫 GASKET Y 1
12 29050011371 密封垫 GASKET Y 1
13 4120000063 变速泵LG03-BSB TRANSMISSION PUMP LG03-BSB Y 1
14 3030900101 压力表接头 MANOMETER JOINT Y 1
15 4011000048 螺栓GB5782-M10*50EpZn-8.8 BOLT GB5782-M10*50EpZn-8.8 N 6
16 4011000052 螺栓GB5782-M10*75EpZn-8.8 BOLT GB5782-M10*75EpZn-8.8 N 2
17 29050011311 A301变速箱总成 A301 TRANSMISSION ASSEMBLY N 1
18 3030900098 圆柱堵塞 BOTT Y 1
19 29050000091 管夹 PIPE CLIP Y 1
20 4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 2
21 3030900208 弯管 ELBOW PIPE Y 1
22 29050010711 变速压力油管 TRANSMISSION OIL PRESSURE PIPE Y 1
23 29010001111 接头 JOINT Y 1
24 29050000031 变速泵吸油管总成 HOSE ASS’Y Y 1
25 4013000020 螺母GB6170-M20EpZn-8 NUT GB6170-M20EpZn-8 N 2
26 4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn N 2
27 4015000176 垫圈GB97.1-20EpZn-300HV WASHER GB97.1-20EpZn-300HV N 2
28 29050000121 垫圈 WASHER Y 4
29 29050000101 减震块 SHOCK MOUNT Y 4
30 29050000111 连接座 SEAT Y 2
31 4011000097 螺栓GB5783-M18*40EpZn-8.8 BOLT GB5783-M18*40EpZn-8.8 N 8
32 4015000029 垫圈GB93-18-65Mn WASHER GB93-18-65Mn N 8
33 4011000236 螺栓GB5782-M20*130EpZn-8.8 BOLT GB5782-M20*130EpZn-8.8 N 2
34 4041000056 分体法兰LGB117-312550 FLANGE LGB117-312550 Y 1
35 4030000029 O形圈GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 1
36 4190000010 检油塞LG03-JYS1/4″ PLUG FOR CHECK UP LG03-JYS1/4″ Y 1
37 4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 4
38 3030900232 垫片 SHIM Y 2
39 2030900065 滤油器总成 OIL-FILTER ASSEMBLY Y 1
40 4015000013 挡圈GB893.1-70-65Mn RETAINER RING GB893.1-70-65Mn N 1
41 4190000007 环形磁铁LG03-CT70*32*14 RING MAGNET LG03-CT70*32*14 Y 1
42 3030900230 压盖 PRESS COVER Y 1
43 4011000106 螺栓GB5783-M8*25EpZn-8.8 BOLT GB5783-M8*25EpZn-8.8 N 6
44 4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn N 6
45 4044000002 标牌LGB402-C-A301 RATING PLTAE LGB402-C-A301 Y 1
46 4019000012 铆钉GB827-3*5-BL2 RIVET GB827-3*5-BL2 N 4
47 2030900047 加油弯管 PIPE Y 1
48 4030000096 胶管JB8406-B38*380 TUBE JB8406-B38*380 Y 1
49 4120000383 胶管夹箍Q/ZB251－1.5 CLIP Q/ZB251－1.5 Y 1
50 29050000261 加油管盖 COVER Y 1
51 2030900083 加油管 OIL FILLING PIPE Y 1
52 2190900287 LG936双变总成 LG936 BIVARIATE ASSEMBLY Y 1
