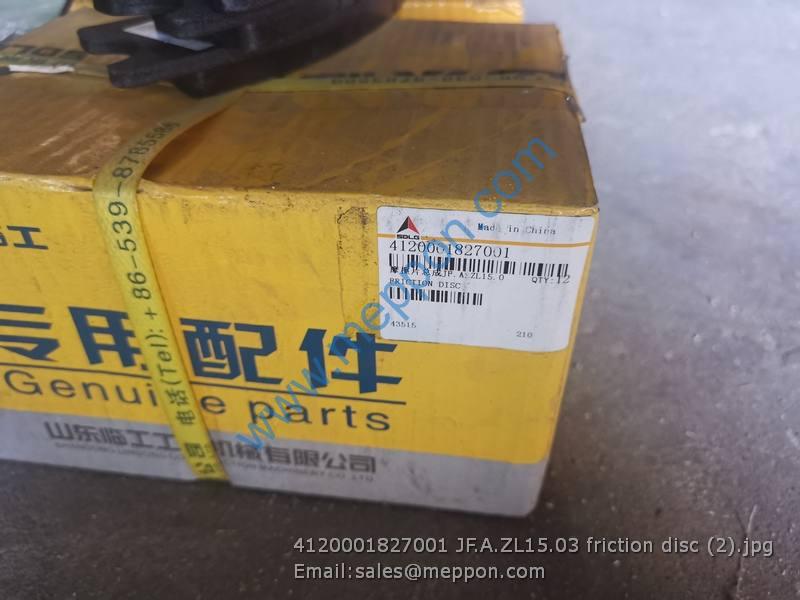

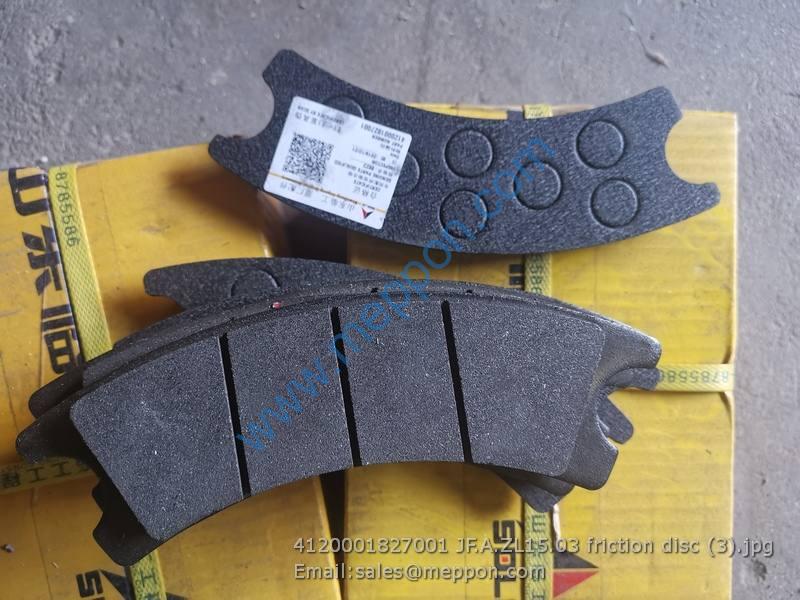

4120001827001 JF.A.ZL15.03 friction disc SDLG

Description

4120001827001 JF.A.ZL15.03 friction disc SDLG

1S11333561002 制动管路-空压机至干燥器组件 1
component
Steel pipe assembly-air compressor to
1113335611007 钢管总成-空压机至软管 1
hose
1417035600027 卡套式端直角异径接头体 Body, straight thread reducing elbow
1417035600120 密封垫 Gasket 1
NMO20.0X2.65G O 型密封圈 O-ring 1
Q351B22T15 六角薄螺母-细牙 Hexagon thin nut-fine thread
1417035600045 单管夹支架 Bracket, single-pipe clamp
Q68612 单管夹片 Single-pipe clip 1
1133VJPGG-01ZA01
Q174B0616 十字槽盘头六角螺钉 Cross recessed pan head hexagon screw
1133VJPGG-01ZA02
Q33006 全金属六角法兰面锁紧螺母 Hexagon flange locking-nut, full metal
High temperature resistant rubber hose
1110835600029 高温橡胶管总成 1
assembly
Steel pipe assembly-hose to bulkhead
1113335611005 钢管总成-软管至隔壁接头 1
joint
1417035600046 单管夹角形支架 Angular bracket, single-pipe clamp
六角头螺栓、弹簧垫圈和平垫 Hexagon head bolt, spring washer and
Q1460835 2
圈组合件 washer unit
Q33008 全金属六角法兰面锁紧螺母 Hexagon flange locking-nut, full metal
Q174B0616 十字槽盘头六角螺钉 Cross recessed pan head hexagon screw
Q68612 单管夹片 Single-pipe clip 2

Q33006 全金属六角法兰面锁紧螺母 Hexagon flange locking-nut, full metal
Q81312 卡套式隔壁直通接头体 Bulkhead union elbow-body
Q351B18T15 六角薄螺母-细牙 Hexagon thin nut-fine thread
Steel pipe assembly-port 1 of drier to
H0356102148A0 钢管总成-干燥器 1 口至车架

1S11333561011 制动管路-空压机至干燥器 Brake line-air compressor to drier
1106635600536 直角接头体(一) Right-angle connector (I)
Q351B22T15 六角薄螺母-细牙 Hexagon thin nut-fine thread
Q72322 密封垫圈 Seal washer 1
Steel pipe assembly-air compressor to
1516335601007 钢管总成-空压机至软管 1
hose
1417035600045 单管夹支架 Bracket, single-pipe clamp
Q68610 单管夹片 Single-pipe clip 3
Q150B0616 六角头螺栓 Hexagon head bolt 3
Q33006 全金属六角法兰面锁紧螺母 Hexagon flange locking-nut, full metal
High temperature resistant rubber hose
1110835600029 高温橡胶管总成 1
assembly
Q150B0835 六角头螺栓 Hexagon head bolt 1
Q33008 全金属六角法兰面锁紧螺母 Hexagon flange locking-nut, full metal
1110835600077 支架 Bracket 1
Q351B18T15 六角薄螺母-细牙 Hexagon thin nut-fine thread
H0356102178A0 钢管总成-软管至车架 Steel pipe assembly, hose to frame
1418135680021 支架 Bracket 1
六角头螺栓、弹簧垫圈和平垫 Hexagon head bolt, spring washer and
Q1460845 1
圈组合件 washer unit

1S11083561300 制动管路-储气筒组件 Brake line-air cylinder component
1417035680005 六角头螺塞 Hexagon head plug 2
NMO14.0X2.65G O 型密封圈 O-ring 1
1417035600175 卡套式端直通变径接头体 Body, straight thread reducing connector
1417035600120 密封垫 Gasket 4
NMO20.0X2.65G O 型密封圈 O-ring 3
1417035600172 卡套式直角接头 Union elbow-body 1
1110835613006 U 形螺栓-紧固储气筒 U-bolt-fastening air reservoir 2
1324035600006 卡套式直角接头 Union elbow-body 1 5133VHCHN-0SZA01
1110835613801 六角头螺塞 Hexagon head plug 3
1417035600002 卡套式端直角变径接头 Straight thread reducing elbow
1417035600027 卡套式端直角异径接头体 Body, straight thread reducing elbow
1110835613004 40L 复合储气筒总成 40L combined air reservoir assembly
1110835613003 40L 储气筒总成 40L air reservoir assembly
1110835613005 U 形螺栓-紧固储气筒 U-bolt-fastening air reservoir 2
1417035600034 手动放水阀 Manual water drain valve
1325135605007 过渡接头总成 Adapter assembly 2

1S11333563001 制动管路-储气筒组件 Brake line-air cylinder component
1417035680005 六角头螺塞 Hexagon head plug 4
1417035600120 密封垫 Gasket 14
NMO20.0X2.65G O 型密封圈 O-ring 14
1419335630013 5L 储气筒(铝合金) Air cylinder (5L, aluminum alloy)
Q150B0820 六角头螺栓 Hexagon head bolt 3
Q40308 弹簧垫圈 Spring washer 3
Q40108 平垫圈 Plain washer 3
1133VJPGG-01ZA01
1417035600034 手动放水阀 Manual water drain valve
1133VJPGG-01ZA02
Q351B22T15 六角薄螺母-细牙 Hexagon thin nut-fine thread
1324035600006 卡套式直角接头 Union elbow-body 2
Q340B10 1 型六角螺母 Hexagon nut, style 1
Q40310 弹簧垫圈 Spring washer 4
Q40210 大垫圈 Large washer 4
H0356306013A0 40L 储气筒紧箍带 Strap, air cylinder (40L)
H0356306001A0 储气筒垫带 Protector, air cylinder
1417035600174 卡套式端直通异径接头体 Body, straight thread reducing connector

40L combined air reservoir assembly
H0356302045A0 40L 复合储气筒总成(铝合金) 1
(aluminum alloy)
1126335680012 40L 储气筒垫块 Air reservoir seat pad (40L)
Q150B0620 六角头螺栓 Hexagon head bolt 4
Q40306 弹簧垫圈 Spring washer 4
Q40206 大垫圈 Large washer 4
40L aluminum alloy air reservoir
H0356302041A0 40L 铝合金储气筒总成 1
assembly
1417035600027 卡套式端直角异径接头体 Body, straight thread reducing elbow
1310835600031 三通接头 Tee fitting 2

1S11333563003 制动管路-储气筒组件 Brake line-air cylinder component
1417035680005 六角头螺塞 Hexagon head plug 5
1417035600120 密封垫 Gasket 17
NMO20.0X2.65G O 型密封圈 O-ring 17
1417035600040 再生储气筒 Regeneration air reservoir 2
Q150B0820 六角头螺栓 Hexagon head bolt 12
Q40308 弹簧垫圈 Spring washer 6
Q40108 平垫圈 Plain washer 6
1417035600034 手动放水阀 Manual water drain valve
Q351B22T15 六角薄螺母-细牙 Hexagon thin nut-fine thread
1324035600006 卡套式直角接头 Union elbow-body 1
Q340B10 1 型六角螺母 Hexagon nut, style 1
Q40310 弹簧垫圈 Spring washer 4
Q40210 大垫圈 Large washer 4
1126335603003 U 型螺栓-紧固储气筒 U-bolt-fastening air reservoir 2
1325135605007 过渡接头总成 Adapter assembly 2
1417035600174 卡套式端直通异径接头体 Body, straight thread reducing connector
