Description

4130001227 SDLG MOTOR GRADER LGG828 LGG8200 SPARE PARTS

1 4130001231 后尾灯XH9-3 REAR TAILLIGHT XH9-3 Y 6
2 4013000047 螺母GB6172.1-M4EpZn-05 NUT N 18
3 4015000033 垫圈GB93-4-65Mn WASHER GB93-4-65Mn N 18
4 4130001144 倒车蜂鸣器 ANNUNCIATOR Y 1
5 4011000101 螺栓GB5783-M6*20EpZn-8.8 BOLT GB5783-M6*20EpZn-8.8 N 6
6 4015000207 垫圈GB97.1-6EpZn-300HV WASHER GB97.1-6EpZn-300HV N 6
7 4130001230 机油压力传感器M10X1 OIL PRESSURE SENSOR M10X1 Y 1
8 4130001218 启动继电器 STARTUP RELAY Y 2
9 4130001154 温度传感器 TEMPERATURE SENSOR Y 2
10 4130001229 变速箱压力传感器NPT1/8 TRANSMISSION PRESSURE SENSOR NPT1/ 8 Y 1
11 28320002671 中央控制板 CENTRAL CONTROL BOARD Y 1
12 4130001140 喇叭 Horn Y 1
13 4011000105 螺栓GB5783-M8*20EpZn-8.8 BOLT GB5783-M8*20EpZn-8.8 N 1
14 4015000072 垫圈GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV N 1
15 4130001232 组合灯50E-II COMBINED LAMP50E-II Y 2
16 4013000007 螺母GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 N 10
17 4015000162 垫圈GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 10
18 4130001148 蓄电池6-SPB-50B BATTERY Y 2
19 4130001149 正极电线接头 POSITIVE POLE WIRE JOINT Y 1
20 4130001150 负极电线接头 WIRE JOINT-CATHODE Y 1
21 4130001223 电瓶线护套 BATTERY WIRE SHEATH Y 1
22 28320003471 电瓶架 BATTERY RACK Y 1

23 4130001233 燃油油位传感器 FUEL LEVEL SENSOR Y 1
24 4130001228 电瓶线总成 BATTERY ASSEMBLY LINE Y 1

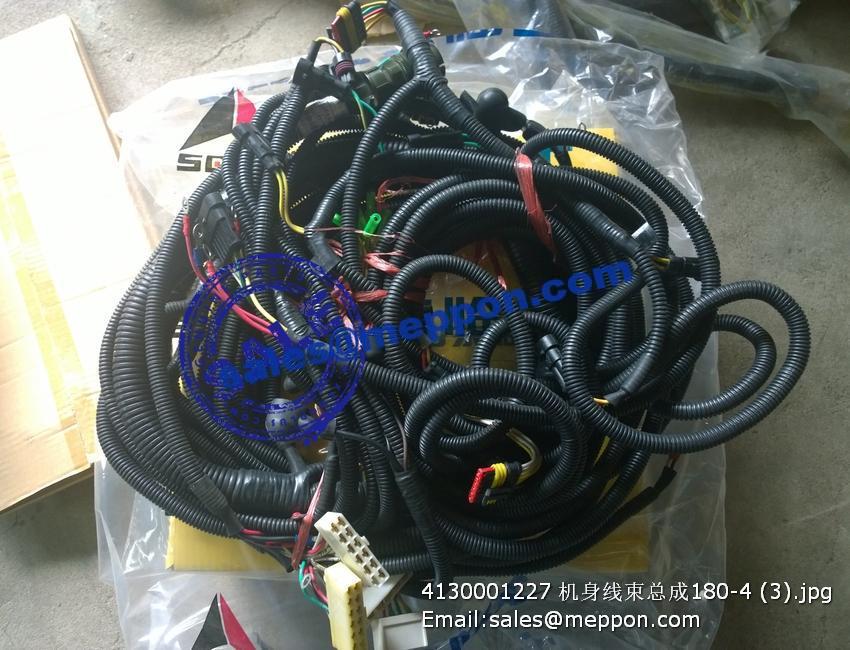

25 4130001227 机身线束总成 THE WIRING HARNESS ASSEMBLY Y 1
26 28320002661 操纵箱总成 CONTROL BOX ASSEMBLY Y 1
27 4130001507 报警压力开关 ALARM PRESSURE SWITCH Y 1
28 4130001560 制动压力开关0166-40701-1-025 PRESSURE SWITCH0166-40701-1-025 Y 1
29 28320002651 仪表台总成 INSTRUMENT PANEL ASSEMBLY Y 1
30 4011000082 螺栓GB5783-M10*25EpZn-8.8 BOLT GB5783-M10*25EpZn-8.8 N 6
31 28320003481 电瓶压板 BATTERY PLATE Y 1
32 28320003491 橡胶垫1 RUBBER PAD 1 Y 1
33 28320003501 橡胶垫2 RUBBER PAD 2 Y 1
34 4130001225001 仪表台气弹簧(JKQ19-90-407) SPRING(JKQ19-90-407) Y 1
