Description

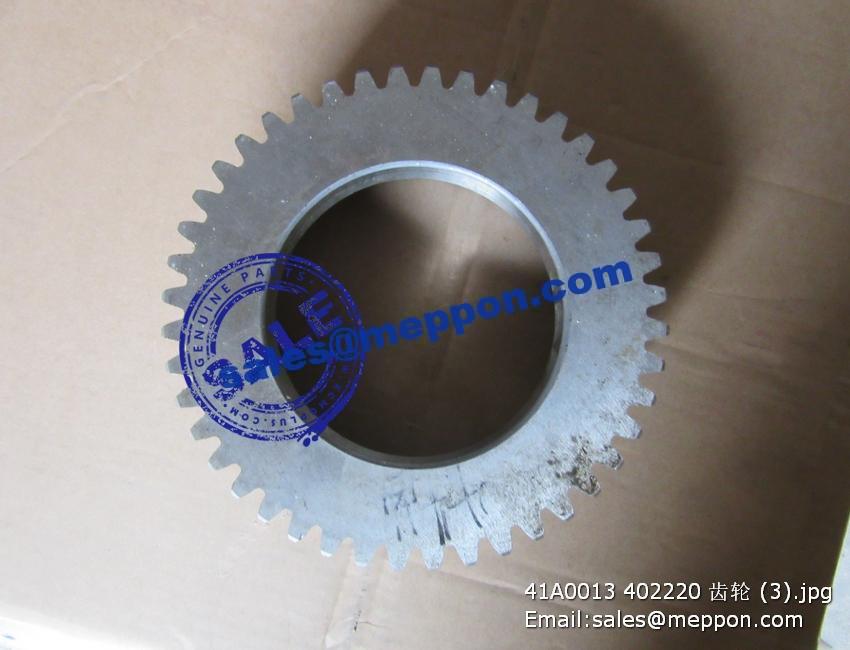

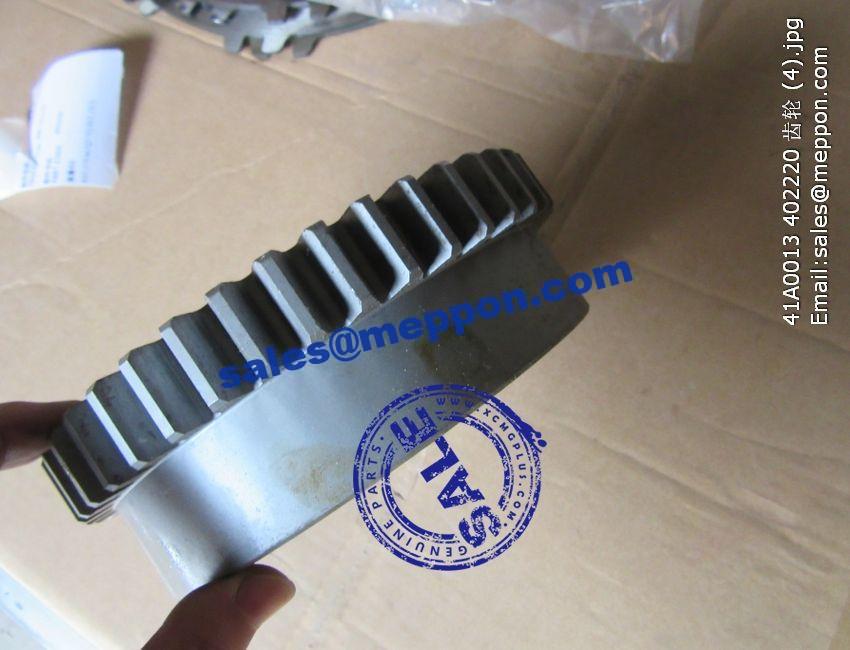

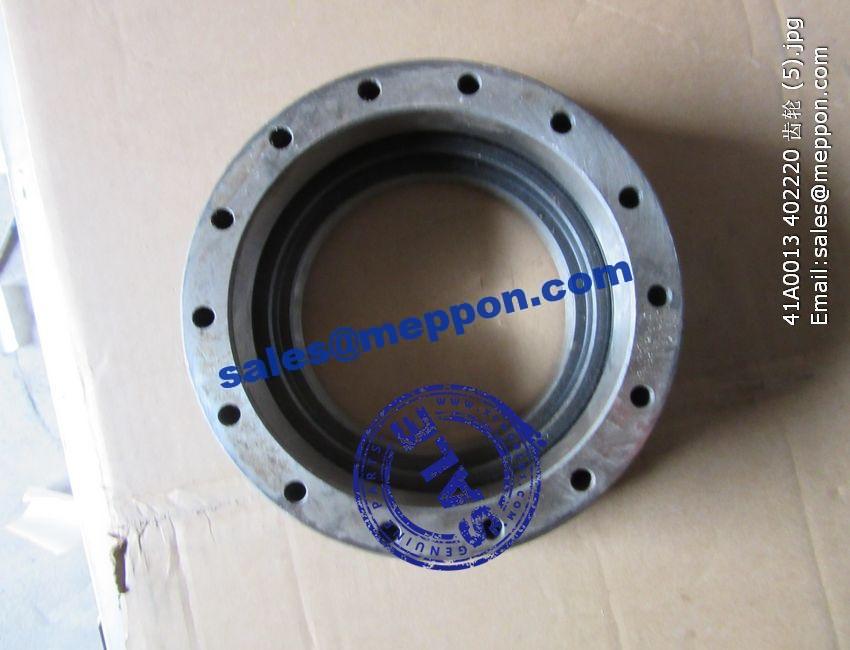

41A0013 402220 1ST RING GEAR LIUGONG WHEEL LOADER SPARE PARTS

1 80A0013 000 密封垫片 GASKET 1
2 21B0005 000 球轴承6012 BALL BEARING 1
3 21B0006 000 球轴承6311 BALL BEARING 1
4 80A0014 001 密封圈 GASKET 1
5 00B0002 000 螺栓 BOLT 26
6 06B0002 000 垫圈 WASHER 56
7 21B0023 002 日本NSK6210NR BALL BEARING 2
8 26B0002 000 推力球轴承51111 BALL BEARING 1
9 21B0007 000 球轴承6016 BALL BEARING 1
10 80A0015 000 油封环 SEAR RING 1
11 40A0004 003 输入一级齿轮 GEAR 1
12 40A0005 002 输入二级齿轮 GEAR 1
13 80A0016 000 油封环 SEAL RING 1
14 52C0071 000 超越离合器 OVERRUN CLUTCH 1 Z
15 07B0011 000 挡圈 SNAP RING 1
16 42C0094 001 倒档行星架组件 PLANET CARRIER AS 1 Z
17 42C0092 001 一档行星架组件 PLANET CARRIER AS 1 Z
18 42C0013 000 倒挡活塞总成 PISTON AS 1
19 75A0009 000 弹簧 SPRING 15
20 60A0036 000 弹簧销轴 GUIDE PIN 15
21 07B0009 000 挡圈 SNAP RING 2
22 13B0169 000 油封 OIL SEAL 2
23 12B0105 000 O形圈 O-RING 2
24 55A0061 002 隔套 SPACER 2
25 71A0117 002 油封座 SEAL SEAT 2
26 56A0027 000 垫圈 WASHER 2
27 21B0008 000 球轴承6312 BALL BEARING 3
28 55A1094 001 轴套 SPACER 1
29 62A0011 003 输出轴 OUTPUT SHAFT 1
30 40A0006 003 输出轴齿轮 OUTPUT SHAFT GEAR 1
31 01A0014 001 泄油管 DRAIN TUBE 1
32 53A0027 000 挡油盖 OIL RETAINER 1
33 03B0050 000 带槽螺母 NUT 2
34 08B0032 000 销 PIN 2
35 12B0034 000 O形圈 O-RING 4
36 00B0025 000 螺栓 BOLT 4
37 06B0013 000 垫圈 WASHER 4
38 80A0098 000 密封垫 GASKET 1
39 53A0171 003 端盖 END COVER 1

40 00B0121 000 螺栓 BOLT 8
41 06B0008 000 垫圈 WASHER 8
42 53A0029 000 中盖 COVER 1
43 42C0096 000 直接档组件 DIRECT DRIVE GP 1 Z
44 00B0019 000 螺栓 BOLT 8
45 41A0013 005 一档内齿圈 1ST RING GEAR 1
46 42C0011 000 一挡油缸总成 1ST CYLINDER AS 1
47 42C0012 000 一档活塞总成 1ST CLUTCH PISTON AS 1
48 52C0147 000 箱体 HOUSING 1
49 56A0030 002 倒档一档从动片 DRIVEN DISK 8
50 37C0002 003 倒挡一档主动片总成 DRIVE DISK 8
51 52C0005 000 摩擦片隔离架总成 SPACER ASSEMBLY 1
52 41A0009 003 太阳轮 GEAR 1
53 28C0089 002 调整垫组件 ADJUSTING SHIM SET 2
54 60A0037 000 圆柱销 PIN 2
55 42C0014 000 透气盖总成 BREATHER CAP AS 1 Z
56 10D0023 000 透气管 BREATHER TUBE 1
57 04B0087 000 螺钉 SCREW 2
58 05A0008 001 堵头 PLUG 2
59 12B0379 000 O形密封圈 O-RING 2
60 60A0038 001 圆柱堵塞 CYLINDRICAL PLUG 1
61 03A0019 000 管接头 CONNECTOR 3
62 12B0144 000 O形密封圈 O-RING 3
63 00B0018 000 螺栓 BOLT 15
64 01B0028 000 螺栓 BOLT 3
65 82A0025 001 密封垫 GASKET 1
66 60A0040 000 圆柱销 PIN 1
67 10A0065 002 固定板 PLATE 1
68 43B0006 000 放水塞 PLUG 2
69 00B0020 000 螺栓 BOLT 6
70 06B0006 000 垫圈 WASHER 6
71 43B0003 001 磁铁 MAGNET 1
72 07B0012 000 挡圈 SNAP RING 1
73 53A0030 000 压盖 COVER 1
74 56A0032 000 垫片 GASKET 2
75 53C0027 000 滤油器 OIL FILTER 1
76 21B0013 000 球轴承6010 BALL BEARING 1
77 04B0022 000 螺钉 SCREW 4
78 55A0063 000 隔圈 SPACER 1

79 12B0035 000 O形圈 O-RING 1
80 03B0080 000 螺塞 PLUG 1
81 12B0351 000 O形密封圈 O-RING 1
82 74A1169 000 变速箱铭牌 NAMEPLATE 1
83 09B0002 000 铆钉 RIVET 4
84 55A0060 001 间隔套 SPACER 1
85 28C0102 000 调整垫圈 ADJUSTING SHIM 1
86 28C0103 000 调整垫圈 ADJUSTING SHIM 1
