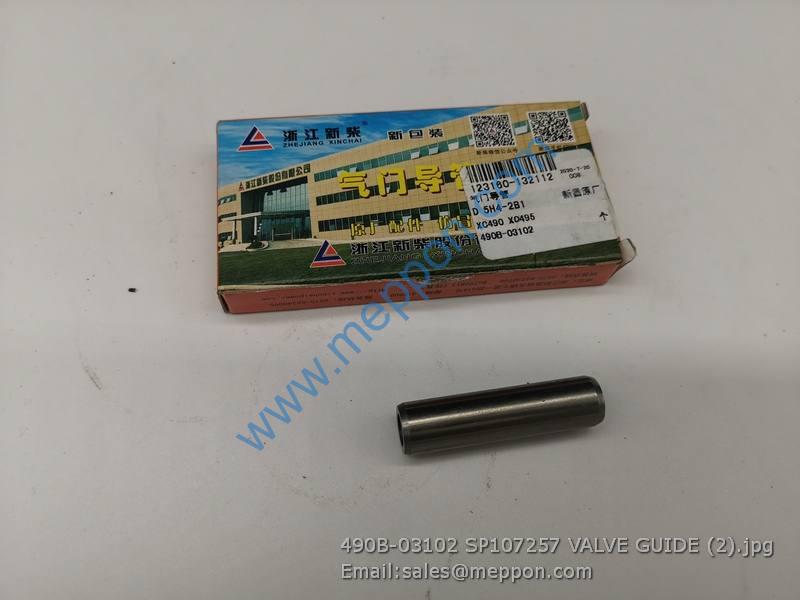

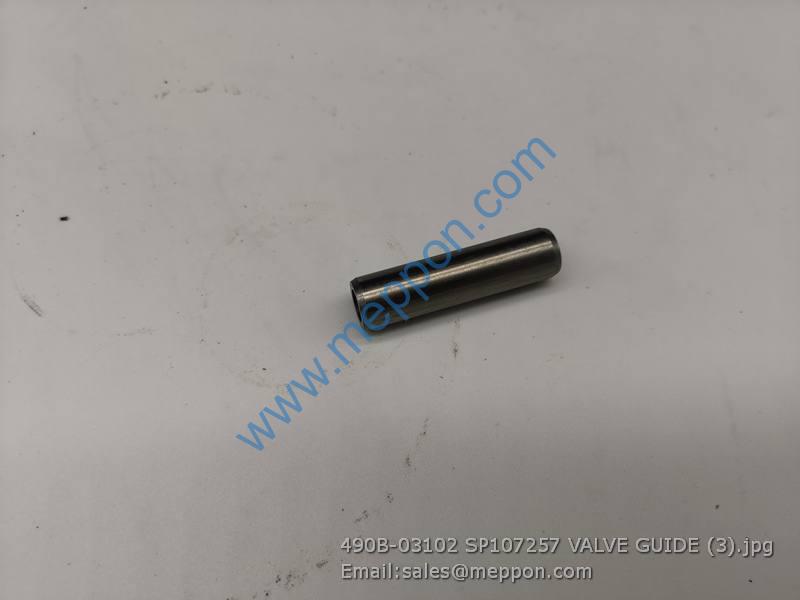

490B-03102 SP107257 VALVE GUIDE XINCHAI

Description

490B-03102 SP107257 VALVE GUIDE XINCHAI

GB/T5783-M8x18 螺栓 M8x18 Bolt M8x18
GB93-8 垫圈 8 Washer
GB/T97.1-8 垫圈 8 Washer
490B-02008 凸轮轴止推板 Thrust plate for camshaft
4D27G31-03110 堵套 Block set 4
GB/T1096-C8x7x22 普通平键 Key 1
495B-06001 凸轮轴 Camshaft 1
490B-06002 气门挺柱 Push tappet 8
490B-06003 气门推杆 Push rod 8
490B-01002A 气缸盖螺栓(甲) Bolt 14
4D27G31-55001 电热塞 Glow plug 4
A490BZL-03102A 气门导管 Valve guide 8
A490BZL-03016 气门导管油封 Oil seal 8
A498B-03001 气门摇臂轴支座螺柱 Stud 4

GB/T97.1-10 垫圈 10 Washer
GB 93-10 垫圈 10
GB/T6170-M10 螺母 M10 Nut M10
A490B-03016A 喷油器压板 Pressure plate
A490B-03019 喷油器紧固螺栓 Bolt 4
490B-01003A 气缸盖螺栓(乙) Bolt 4
A490B-03109 喷油器铜套 Sleeve tube 4
A490B-55100 电热塞连接线部件 Glow plug connecting line
490B-03200 气门摇臂轴部件 Valve rocker arm part
GB/T5782-M10x65 螺栓 M10x65 Bolt M10x65
490B-03006 气门锁夹 Split valve retainer
490B-03007 气门弹簧上座 Valve spring seat,upper
490B-03005 气门内弹簧 Valve spring,inner
490B-03004 气门外弹簧 Valve spring,outer

490B-03011 气门弹簧下座 Lower seat,valve spring
490B-03015 排气门 Exhaust valve 4
490B-03014 进气门 Intake valve 4
4D27G31-03111 堵塞 Block 1
GB/T5783-M8x22 螺栓 M8x22 Bolt M8x22
490B-03012 后端盖 Rear cover 1
490B-03013A 后端盖衬垫 Gasket 1
490B-01078 碗形塞片 30 Pulg 30
490B-03107 进气门座 Intake valve seat
490B-03108 排气门座 Exhaust valve seat
A490B-03101A 气缸盖 Cylinder head 1
490B-03017 碗形堵塞 20 Pulg 20
490B-03009-2 吊耳 Hoisting bracket
GB/T5783-M8x20 螺栓 M8x20 Bolt M8x22

490BPG-16002 正时齿轮室盖垫片 Timing gear housing cover gasket
GB/T5783-M8x16 螺栓 M8x16 Bolt M8x16
490B-02012-1 惰齿轮轴压板 Idler gear shaft plate
GB/T5782-M8x60 螺栓 M8x60 Bolt M8x60
490BPG-02100 过油管焊接部件 Fuel injection pipe welding unit
GB/T5782-M8x40 螺栓 M8x40 Bolt M8x40
490BPG-82003 厚垫圈 Thick washer 1
GB/T5782-M8x70 螺栓 M8x70 Bolt M8x70
GB/T119.2-8×20-B 销 8×20-B Pin 8×20-B
GB/T5782-M12x45 螺栓 M12x45 Bolt M12x45
GB859-12 垫圈 12 Washer
490B-02011 凸轮轴正时齿轮压板 Camshaft timing gear plate
490BPG-02009 凸轮轴正时齿轮 Camshaft timing gear
490BPG-02006 正时惰齿轮 Timing idler gear
