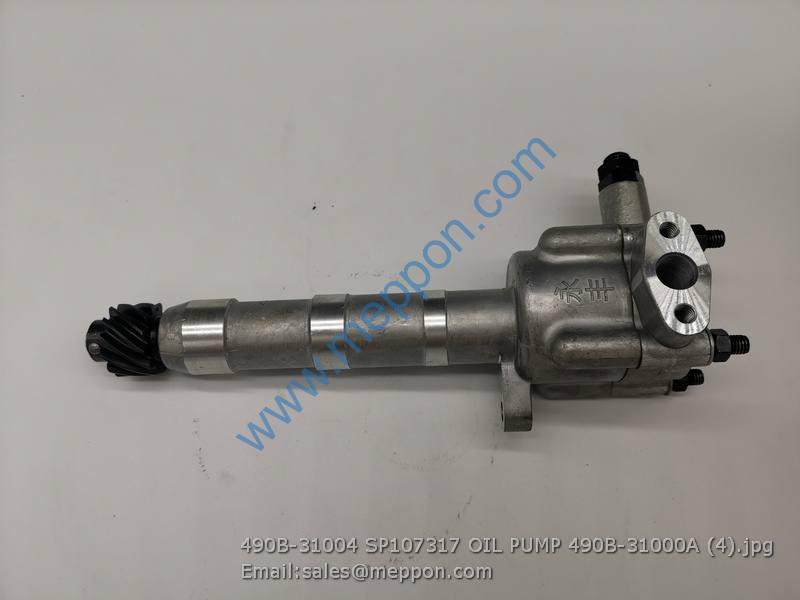

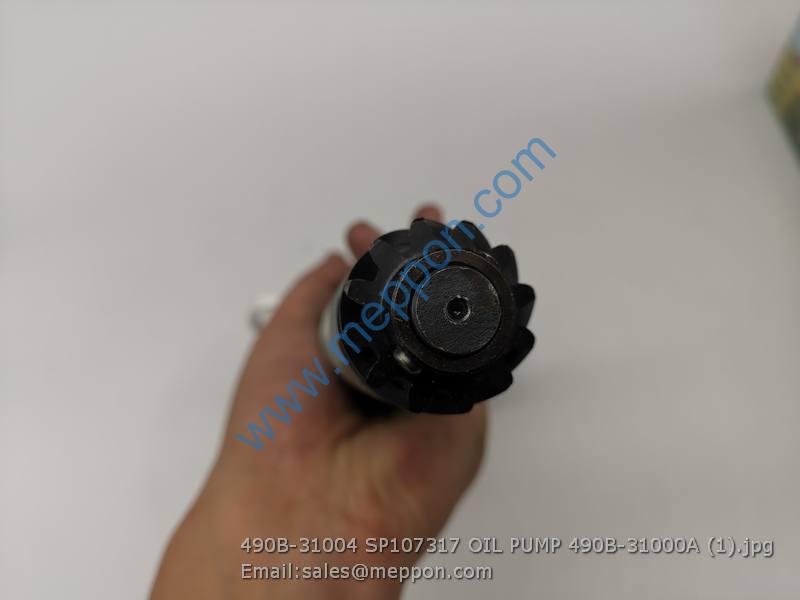

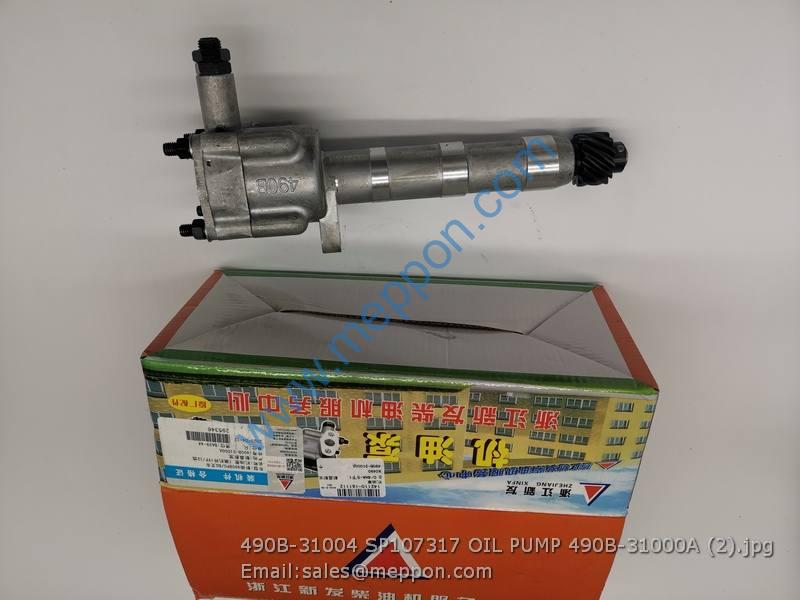

490B-31004 SP107317 OIL PUMP 490B-31000A xinchai

Description

490B-31004 SP107317 OIL PUMP 490B-31000A xinchai

4D27G31-02015A 喷油泵正时齿轮轴套 1
sleeve
GB93-6 垫圈 6 Washer
GB/T5783-M6x16 螺栓 M6x16 Bolt M6x16
4D27G31-21100 电控 VE 泵 Electronically controlled VE pump
JB/T8870-D12 喉箍 D12 Hose clamp
4D27G31-23000 高压油管总成 High pressure fuel tube assembly
4D27G31-25100 喷油器回油胶管 Injector leak-off pipe
4D27G31-22000-1 喷油器 Fuel injector 4
490B-01076-1 柴油滤清器垫板 Fuel filter plate
GB/T97.1-8 垫圈 8 Washer
GB93-8 垫圈 8 Washer
GB/T5783-M8x25 螺栓 M8x25 Bolt M8x25
498B-25002 喷油器回油管 Injector leak-off pipe
498B-25004 喉箍 Hose clamp 8

498B-25001 喷油器回油防漏帽 Fuel injector oil cap
Fuel supply tube from electric pump
4D27T31-25300 电动泵至滤清器输油管部件 1
to fuel filter
JB/T8870- D16 喉箍 D16 Hose clamp
4D27G31-24100 柴油滤清器 Fuel filter 1
GB/T5783- M8x30 螺栓 M8x30
Fuel supply tube from
4D27G31-25200 滤清器至喷油泵输油管部件 1
injection pump
490B-27001 电动泵 Electric pump 1
A498BT-21102 橡胶套 Rubber sleeve 1
A498BT-21101 电动泵抱箍 Electric pump clamp

4D27G31-28200-2A 线束 Circuit group 1
4D27G31-28204 线束支架 Circuit group bracket
4D27G31-28201 线束支架 Circuit group bracket
4D27G31-28202 线束支架 Circuit group bracket
4D27G31-28203 线束支架 Circuit group bracket
4D27G31-28100 ECU ECU 1

490B-31000A 机油泵总成 Oil pump assembly
490B-31006 集滤器垫片 Oil strainer gasket
490B-31100A 机油集滤器部件 Oil strainer unit
GB/T97.1-8 垫圈 8 Washer
GB93-8 垫圈 8 Washer
GB/T6170-M8 螺母 M8 Nut M8
GB899-AM8x38 螺柱 AM8x38 Stud AM8x38
GB899-AM8x45 螺柱 AM8x45 Stud AM8x45
GB/T5783-M8x20 螺栓 M8x20 Bolt M8x20
490B-33000 机油管路总成 Oil pipeline assembly
490B-33005 出油管法兰垫片 Oil outlet pipe flange gasket
GB/T5783-M8x30 螺栓 M8x30 Bolt M8x30

490B-01073 机油滤清器垫片 Oil filter gasket
NB485B-32000 机油滤清器总成 Oil filter assembly
GB/T97.1-8 垫圈 8 Washer
GB93-8 垫圈 8 Washer
GB/T5782-M8x50 螺栓 M8x50 Bolt M8x50
GB/T5783-M8x30 螺栓 M8x30 Bolt M8x30
