Description

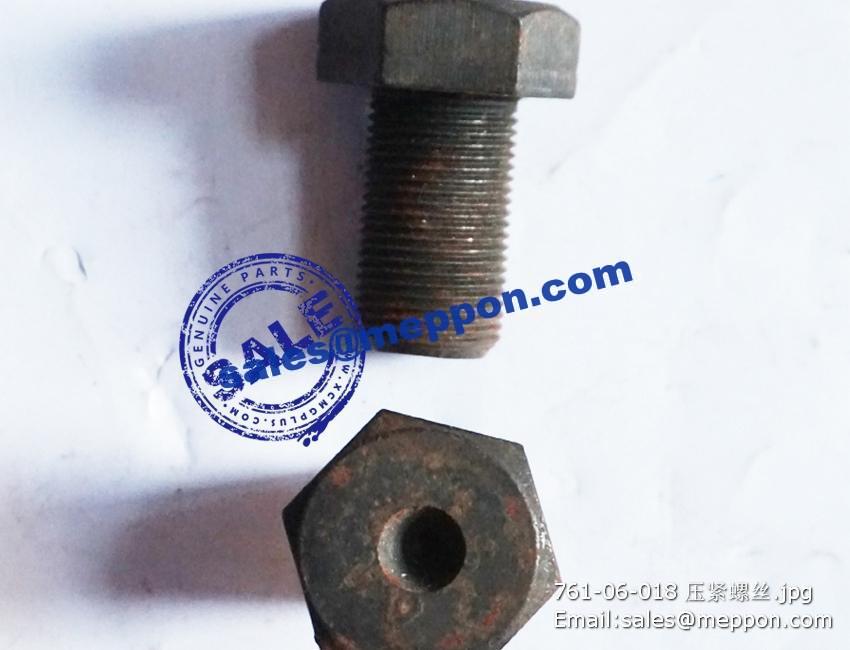

761-06-018 BOLT SHANGCHAI 6135K SPARE PARTS

1 B00000118 圆柱销 PARALLEL PINS 4 GB/T119-A5*14
2 B00000102 圆柱销 PARALLEL PINS 4 GB/T119-A12*24
3 G02-173-01 闷头 PLUG 4
4 G02-115-01 凸轮轴轴承 CAMSHAFT BEARING 7
5 761G-04-052D 闷头 PLUG 7
6 B00000297 O形橡胶密封圈 O-RING 2 GB/T3452.1-16*3.55
7 S00008189 气缸盖螺母 CYLINDER HEAD NUT 38
8 S00008188 气缸盖螺栓 CYLINDER HEAD BOLT 38
9 761W-02-064A 定位套筒 RETAINER SLEEVE 2
10 气缸套维修组件 CYLINDER LINER SERVICE GROUP 6
G02-102-01 气缸套 1
13 G02-117-01 防穴蚀封水圈 SEAL, CYLINDER LINER 6
14 761-02-003B 封水圈 SEAL, CYLINDER LINER 12
15 S00010124 发动机吊环 ENGINE LIFTING EYE 1
16 B00002066 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M12*55
17 D02A-161-01 闷头（φ20） PLUG 1
18 B00001697 内六角锥形螺塞 HEXAGON COUNTERSUNK CONE PIPE PLUG 5 Q/SC584.1-R1/4/B2
19 S00001515 定位套 RETAINER SLEEVE 2
20 B00000412 六角头螺栓 HEXAGON HEAD BOLT 1 GB/T5782-M10*90
21 B00001993 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M10*130
22 B00004890 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 10 GB/T16674.1-M10*85-10.9-F
23 B00001996 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*20
24 B00001725 六角头螺塞 HEXAGONAL HEAD SCREW PLUG 1 Q/SC587.1-M12*1.25
25 B00001999 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M10*25
26 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 Q/SC622-M10*30
27 B00001695 内六角锥形螺塞 HEXAGON COUNTERSUNK CONE PIPE PLUG 1 Q/SC584.1-R1/2/B2
28 B00001275 平垫圈 PLAIN WASHER 1 GB/T97.1-10-200HV-Y
29 B00001237 弹簧垫圈 SPRING WASHER 1 GB/T93-10
30 B00002161 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*70
31 B00002158 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M8*65
32 S00006214 活塞冷却喷嘴部件 PISTON-COOLING ORIFICE ASSY 6
33 B00001821 铜垫圈 COPPER WASHER 1 Q/SC598-12*24
34 S00011483 机体机加工部件 CYLINDER BLOCK ASSY (MACHINED) 1
36 G02-109-01A 主轴承盖 MAIN BEARING CAP 6
37 G02-110-01A 推力挡主轴承盖 CAP, THRUST BEARING 1
38 G02-111-01 主轴承螺栓 BOLT, MAIN BEARING 14
39 G02-134-01 定位销 DOWEL PIN 1
