Description

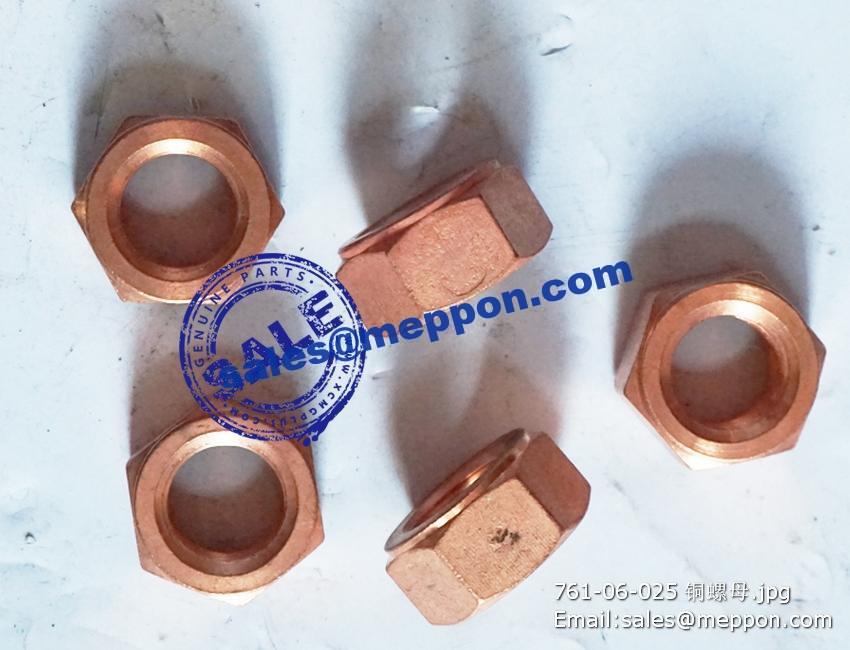

761-06-025 NUT

1 S00013440 飞轮螺栓 BOLT, FLYWHEEL 8
2 G06-002-06 飞轮齿圈装配部件 FLYWHEEL AND RING GEAR ASSY (ASSEMBLED) 1
3 763G-06-003A 起动齿圈 RING GEAR, ENGINE START 1
4 B00004832 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.2-M14*1.5*50
5 B00004831 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 13 GB/T16674.2-M14*1.5*40
6 飞轮壳维修组件 FLYWHEEL HOUSING SERVICE GROUP 1
G02-103-09 飞轮壳 1
7 S00015078 曲轴后油封 CRANKSHAFT SEAL, BACK 1
8 G02-104-01 飞轮壳垫片 FLYWHEEL HOUSING GASKET 1
9 B00000102 圆柱销 PARALLEL PINS 4 GB/T119-A12*24
10 B00004830 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 GB/T16674.2-M14*1.5*30
11 761-02-033A 支架 BRACKET 2
12 B00001728 六角头螺塞 HEXAGON PIPE PLUG 2 Q/SC587.1-M18*1.5
13 B00002111 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M6*12
14 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*16
15 761G-02-046A 指针盖板 POINTER COVER 1
16 763G-02-013 指针 FINGER 1
17 B00000952 吊环螺钉 LIFTING SCREW 2 GB/T825-M16-Y
18 限压阀盖维修组件 PRESSURE REGULATOR COVER SERVICE GROUP 1
G02-130-01 限压阀盖 1
19 B00001552 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-24
20 起动机维修组件 STARTING MOTOR SERVICE GROUP 1
S00011506 起动机 1
21 765I-11-002 垫片 GASKET 1
22 B00002056 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M12*35-ZN.D
