Description

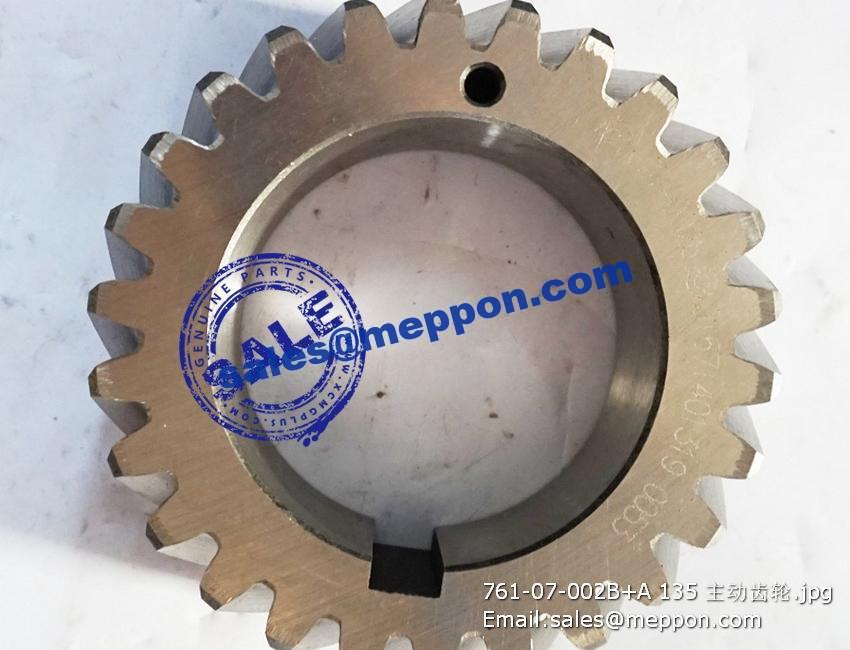

761-07-002B+A 4135 6135 PS07005 SP100855 GEAR

1 B00001989 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M10*100
2 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*30
3 S00010452 油气分离器 CRANKCASE FILTER 1
4 S00007507 油气分离器回油橡胶管 CRANKCASE FILTER OIL RETURN TUBE 1
5 B00001563 喉箍 CLAMP 4 Q/SC1302-16~25
6 S00010487 油气分离器回油管 CRANKCASE FILTER OIL RETURN TUBE 1
7 S00000996 增压器回油橡胶管 TURBOCHARGER OIL RETURN HOSE 1
8 B00002365 橡胶水管 RUBBER HOSE, WATER 1 Q/SC646-38*100
9 B00001571 喉箍 CLAMP 2 Q/SC1302-27~51
10 S00010488 油气分离器出气管 AIR OUTLET PIPE, CRANKCASE VENT FILTER 1
11 B00002008 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M10*40-10.9
12 B00002139 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 16 Q/SC622-M8*30
14 齿轮室盖板维修组件 GEAR HOUSING COVER SERVICE GROUP 1
S00009002 齿轮室盖板 1
15 G02-119-02 前油封 FRONT SEAL 1
16 保险铁丝 LOCK WIRE 1
17 B00002004 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M10*35
18 B00000288 六角头头部带孔螺栓 HEX HEAD BOLT WITH WIRE HOLE ON HEAD 1 GB/T32.3-M16*1.5*35
19 771-07-029 压板 CLAMP 1
20 B00002078 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M12*90
21 S00010582 推力板 THRUST PLATE 1
22 S00005670 传动惰齿轮 IDLER GEAR, DRIVE PUMP 1
23 G07-105-02 凸轮轴传动齿轮 GEAR, CAMSHAFT 1
24 G07-001-01 定时惰齿轮机械加工部件 TIMING IDLER GEAR ASSY (MACHINED) 1
25 S00008986 高压油泵齿轮 GEAR, FUEL INJECTION PUMP 1
26 G07-104-01 惰齿轮轴 IDLER SHAFT 1
27 B00001999 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 12 Q/SC622-M10*25
28 B00000102 圆柱销 PARALLEL PINS 2 GB/T119-A12*24
29 S00009003 齿轮室 HOUSING, GEAR 1
32 B00001098 双头螺柱 STUD 5 GB/T899-GM10-M10*25-8.8-Y
33 B00000833 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 10 GB/T6177-M10-Y
34 B00001104 双头螺柱 STUD 4 GB/T899-GM10-M10*35-8.8-Y
36 B00000198 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 GB/T16674.2-M14*1.5*35
37 S00000162 发动机前支撑 FRONT ENGINE SUPPORT 2
38 B00002137 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M8*25
39 O形橡胶密封圈 O-RING 1
40 S00011666 隔圈 SPACER RING 2
