Description

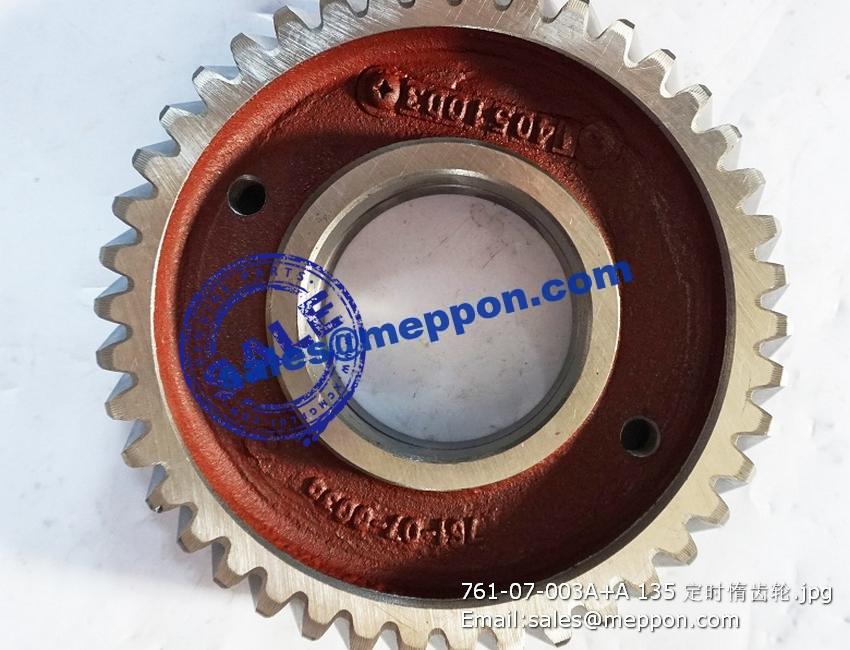

761-07-003A+A 4135 6135 IDLER GEAR PS07006 SP100856

1 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 12 Q/SC622-M10*30
2 G16-002-04 风扇铆接部件 FAN ASSY RIVETED 1
3 G16-103-11 过渡盘 ADAPTER 1
4 B00002047 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M12*25
5 B00001803 加大毛垫圈 ENLARGED ROUGH WASHER 1 Q/SC597-12*50
6 风扇皮带盘维修组件 FAN PULLEY SERVICE GROUP 1
G16-102-11 风扇皮带盘 1
7 B00000245 滚动轴承 BALL BEARING 2 GB/T276-6308-Z
8 S00011689 三角带 V-BELT 1
9 G16-110-02 内隔圈 INTERNAL SPACER 1
10 B00000836 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 4 GB/T6177-M12-Y
11 G16-111-01 风扇轴 FAN SHAFT 1
12 B00001479 直通式压注油杯 GREASE FILLING JET 1 JB/T7940.1-M10*1
13 B00001724 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M10*1
14 S00010436 风扇座架部件 FAN BEARING ASSY 1
S00010435 风扇座架 1
15 B00001124 双头螺柱 STUD 4 GB/T899-GM12-M12*35-8.8-Y
16 B00002000 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M10*25-ZN.D
17 S00011508 发电机撑条 ROD-ALTERNATOR 1
18 B00004910 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 GB/T16674.1-M10*130-10.9
19 S00011521 整体式交流发电机 ALTERNATOR 1
20 B00001275 平垫圈 PLAIN WASHER 1 GB/T97.1-10-200HV-Y
21 B00001237 弹簧垫圈 SPRING WASHER 1 GB/T93-10
22 B00000766 I型六角螺母 HEXAGON NUT (TYPE 1) 1 GB/T6170-M10-10-Y
