Description

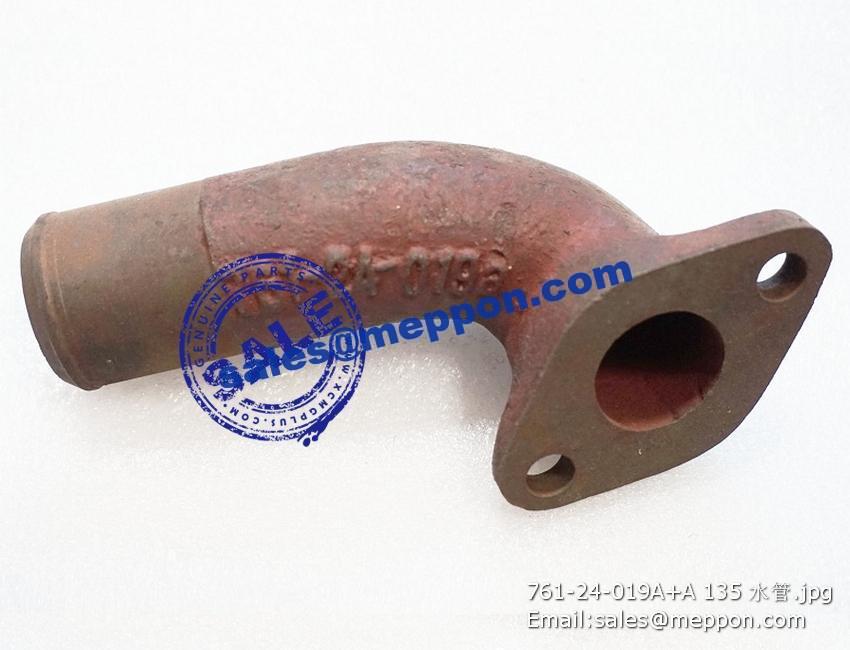

761-24-019A+A 135 water hose PS07044

S00002093 气缸盖垫片 CYLINDER HEAD GASKET 1
B00004812 碗形垫片–气缸盖 FOR GASKET – Q72235 1
S00001687 螺塞–气缸盖 PIPE PLUG 2
B00005510 六角法兰面螺栓–前吊环 HEXAGON BOLTS WITH FLANGE – GB/T16674.1-M10*30-10.9-DAC 4
S00008115 发动机前吊环 ENGINE LIFTING EYE, FRONT 1
S00021269 闷头–缸盖 PLUG 12
S00008843 闷头（25）–缸盖 PLUG 6
S00001567 气缸盖螺栓 BOLT, CYLINDER HEAD 26
B00004384 钢球–喷油器接管油道内 STEEL BALL – GB/T308-6.35 6
S00002387 O型橡胶密封圈—-喷油器隔套 O-RING 6
S00002015 喷油器隔套 SPACING SLEEVE, INJECTOR 6
B00005059 六角法兰面螺栓–凸轮轴支撑 HEXAGON BOLTS WITH FLANGE – GB/T16674.1-M10*90-10.9-F 7
B00004382 圆柱销–凸轮轴支撑座盖 DOWEL, PIN – GB/T119-A5*12 18
B00004349 六角法兰面螺栓–凸轮轴支撑 HEXAGON BOLTS WITH FLANGE – GB/T16674.1-M10*100 1
B00000121 圆柱销–凸轮轴齿轮 DOWEL, PIN – GB/T119-A6*12 1
S00003481 凸轮轴齿轮 GEAR, CAMSHAFT 1
S00001516 气门弹簧上座 INTAKE SPRING, INTAKE 24
S00002127 气门锁夹 VALVE COLLET 48
S00001801 气门弹簧 VALVE SPRING 24
S00002065 气门杆油封 VALVE STEM SEAL 24
B00002028 六角法兰面螺栓–气缸盖齿轮室螺栓 BOLT – Q/SC622-M10*75-10.9 2
S00002366 气门导管 VALVE GUIDE 24
D02A-161-01 闷头–缸盖 PLUG 1
S00002444 后盖部件 BACK COVER ASSY 1
B00004368 六角法兰面螺栓–后盖 HEXAGON BOLTS WITH FLANGE – GB/T16674.1-M8*20 2
S00030261 发动机后吊环 ENGINE LIFTING EYE, REAR 1
B00005715 六角法兰面螺栓–发动机后吊环 HEXAGON BOLTS WITH FLANGE – GB/T16674.1-M10*45-10.9-DAC 4
S00001631 进气门 VALVE, INTAKE 12
S00002289 排气门 VALVE, EXHAUST 12
S00001887 缸盖上水管 CYLINDER HEAD WATER TUBE 6
S00003104 齿轮室垫片 GASKET, GEAR HOUSING 1
S00010175 凸轮轴 CAMSHAFT 1
S00010581 气缸盖 CYLINDER HEAD 1
