Description

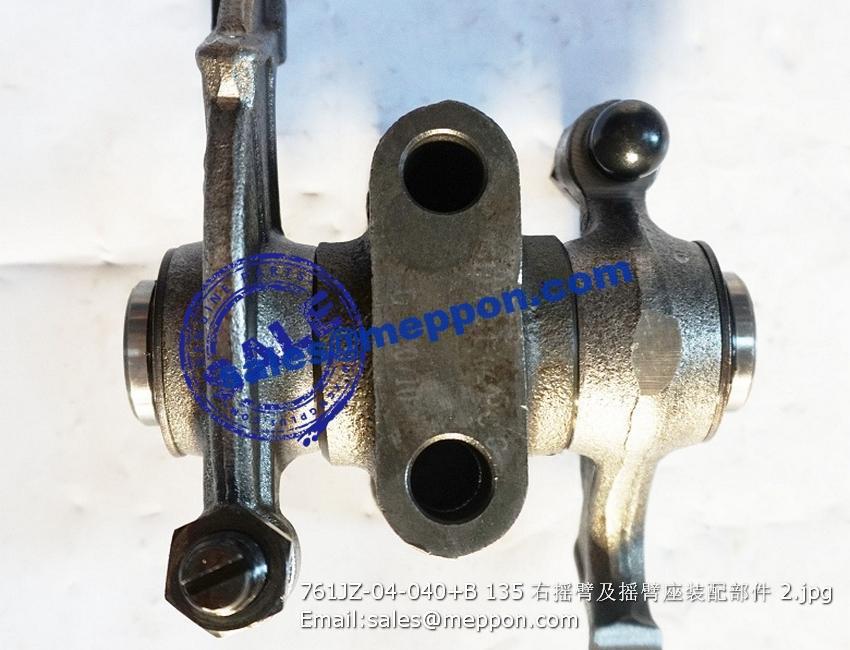

761JZ-04-040+B 6135k 4135k rocker arm and seat
B00002042 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M12*150 4
B00002142 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*35 4
S00013391 水泵垫片 GASKET, WATER PUMP 1
B00002150 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*50 2
D02A-107-900 气缸盖螺栓 BOLT , CYLINDER HEAD 26
D02A-129-900 齿轮室垫片 GASKET, GEAR HOUSING 1
S00019351 凸轮轴推力板 THRUST PLATE, CAMSHAFT 1
B00000506 六角头螺栓 HEXAGON HEAD BOLTS-FULL THREAD – GB/T5783-M10*25-10.9 3
D02A-166-01 螺塞(Z1/8) PIPE PLUG 3
B00002139 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*30 4
D02A-321-901 垫块 SPACER 2
D02A-321-900 垫 块 SPACER 2
S00016074 机体后盖板 REAR CYLINDER BLOCK PLATE 1
D02A-116-01 后盖板O型密封圈 REAR CYLINDER BLOCK PLATE O RING 1
D02A-118-02B 曲轴后端油封 REAR OIL SEAL RING, CRANKSHAFT 1
D02A-112-900 主轴承下瓦 LOWER MAIN BEARING 6
B00000102 圆柱销 PARALLEL PINS – GB/T119-A12*24 2
D02A-110-900 主轴承上瓦 UPPER MAIN BEARING 6
B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*20 8
B00002058 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M12*40-10.9 12
D02A-109-901 气缸盖垫片【９ＤＦ】 GASKET, CYLINDER HEAD 1
B00002159 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*65-10.9 11
D02A-312-01 圆柱销 PARALLEL PINS 2
B00000098 圆柱销 PARALLEL PINS – GB/T119-A10*20 2
B00001999 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M10*25 1
D02A-502-900 水泵进水管 WATER PUMP INLET PIPE 1
D02A-500-900 水泵进水口垫片 WATER PUMP INLET GASKET 1
B00001992 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M10*110-10.9 2
D02A-164-01 内六角螺塞(Z1/2) HEXAGONAL SOCKET HEAD PLUG 1
D02A-168-01 六角头螺塞 HEXAGONAL HEAD SCREW PLUG 1
B00001378 O形橡胶密封圈 O-RING – GB3452.1-16*2.65 1
D02A-178-900 放水开关 WATER DRAIN COCK 1
D02A-133-900 机油冷却器垫片 GASKET, OIL COOLER 1
D02A-304-900 套筒销 DOWEL SLEEVE 1
D02A-111-900 曲轴推力轴承(上) THRUST BEARING (UPPER), CRANKSHAFT 1
D02A-323-900 曲轴推力轴承(下） THRUST BEARING (LOWER), CRANKSHAFT 1
B00001020 弹性圆柱销 SPRING-TYPE STRAIGHT PINS-SLOTTED,HEAVY DUTY – GB/T879-12*12 2
B00002153 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE – Q/SC622-M8*55 3
D02A-305-900 套筒销 DOWEL SLEEVE 2
D02A-162-40 凸轮轴闷头 CAMSHAFT PLUG 1
D02A-113-01B 凸轮轴轴承 BUSHING, CAMSHAFT 7
D02A-310-01 闷头（φ20） PLUG 1
D02A-161-01 闷头(φ20) PLUG 1
D04-167-01A 闷头（φ35） PLUG 9
D04-133-01 闷头(φ58) PLUG 1
D04-166-01A 闷头（φ28） PLUG 1
D02A-813-900 节流塞 THROTTLE PLUG 1
D02A-813-901 节流塞 THROTTLE PLUG 1
D02A-324-40 O型圈 O-RING 1
D02A-161-31 闷头(φ20) PLUG 1
D02A-002-900 机体机加工部件 CYLINDER BLOCK ASSY (MACHINED) 1
D02A-106-900 主轴承盖螺栓 BOLT, MAIN BEARING CAP 14
D02A-322-900 套筒销 DOWEL SLEEVE 2
