Description

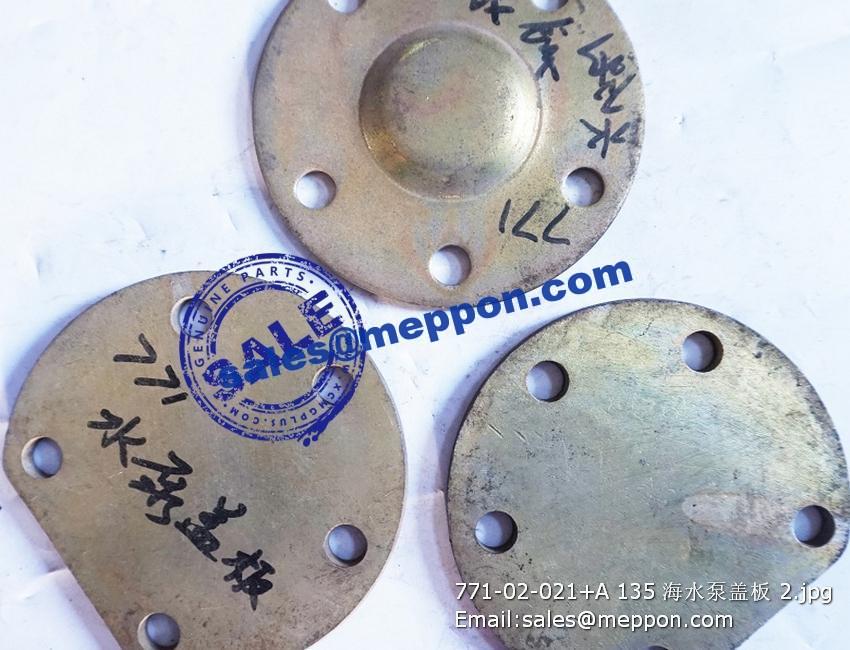

771-02-021+A 135 PS07721 sea water pump cover plate

1 B00002142 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*35
2 D12-304-01 垫块 SPACER 2
3 B00000958 标牌铆钉 NAMEPLATE RIVET 4 GB/T827-2.5*6-L3
4 B00002177 铰接螺栓 BANJO BOLT 2 Q/SC642.1-01-M10*1
5 B00001814 铜垫圈 COPPER WASHER 4 Q/SC598-10*16
6 D12-002-30 限烟器软管部件 HOSE ASSY, AIR/FUEL RATIO CONTROL 1
7 D02A-164-01 内六角螺塞(Z1/2) PLUG 1
8 D12-001-34 进气管部件 AIR INTAKE PIPE ASSY 1
9 B00001535 弹簧卡箍 SPRING CLAMP 1 Q/SC1092-60
10 D12-104-32B 橡胶连接管 AIR INTAKE HOSE 1
11 B00001537 弹簧卡箍 SPRING CLAMP 1 Q/SC1092-65
12 D02B-300-01 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8
13 D12-310-01 进气接管 ADAPTER, AIR INTAKE PIPE 1
14 B00001543 弹簧卡箍 SPRING CLAMP 2 Q/SC1092-90
15 D12B-105-01A 橡胶连接胶管 AIR INTAKE HOSE 1
16 B00001729 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M20*1.5
17 B00001836 铜垫圈 COPPER WASHER 1 Q/SC598-20*28
18 D12-308-01 进气口垫片 GASKET, AIR INTAKE PIPE 1
19 D12-305-01 盖板 COVER 1
20 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8 Q/SC622-M8*25
21 D12-309-01B 铭牌 NAMEPLATE 1
22 B00002134 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*20
