Description

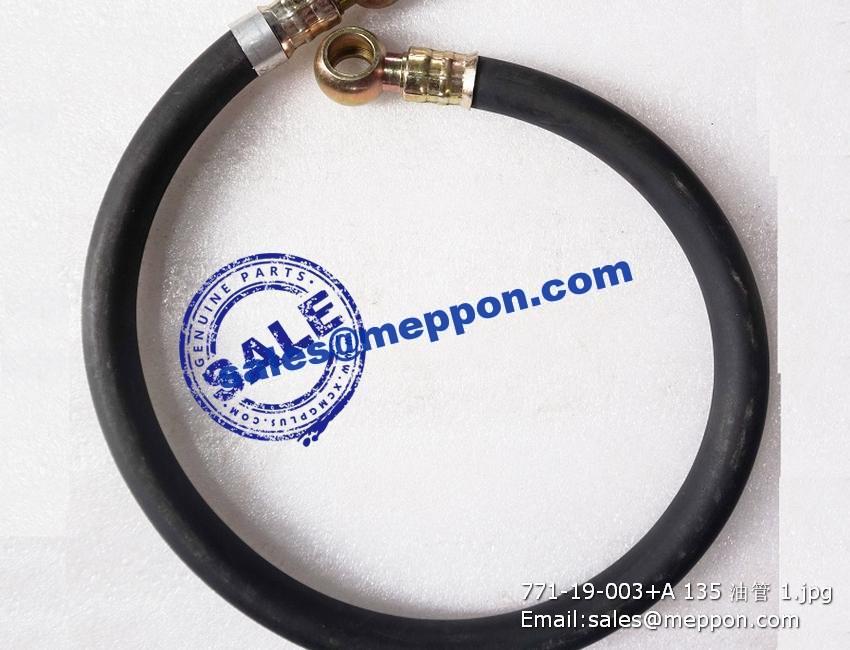

771-19-003+A 135 oil hose PS07797 SP101068

1 D02A-001-41 机体装配部件 CYLINDER BLOCK ASSY (ASSEMBLED) 1
1.1 D02A-002-32 机体机械加工部件 CYLINDER BLOCK MACHINED ASSEMBLY 1
1.2 D28-107-01 O型圈 O-RING 1
1.3 D02A-142-05 油尺管 OIL DIPSTICK TUBE 1
1.4 D02A-113-01B 凸轮轴轴承 CAMSHAFT BEARING 7
1.5 D02A-309-01 圆柱闷头 CUP PLUG 1
1.6 D02A-161-01 闷头（φ20） CUP PLUG 1
D02A-161-31 闷头(φ20) CUP PLUG 2
1.7 D04-166-01A 闷头（φ28） CUP PLUG 2
1.8 D02A-308-01 闷头 CUP PLUG 1
1.9 B00001546 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-12
1.10 D02A-170-01 螺塞 PIPE PLUG 1
1.11 D02A-324-40 O型圈 O-RING 1
1.12 D02A-162-40 凸轮轴闷头 CUP PLUG 1
1.13 D02A-310-01 闷头（φ20） CUP PLUG 1
1.14 D04-167-01A 闷头（φ35） CUP PLUG 8
2 D02A-313-801 内六角螺塞 PLUG 1
3 B00000301 O形橡胶密封圈 O-RING 1 GB/T3452.1-26.5*2.65
4 D02A-179-01 管接螺母 NUT 1
5 B00002165 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*80
6 B00002145 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*40
7 D02A-173-40 油泵托架 SUPPORT 1
8 B00002033 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M10*90-10.9
9 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*25
10 D02A-174-40 油泵支架 SUPPORT 1
11 D02A-166-01 螺塞(Z1/8) PLUG 2
12 D02A-030-03 活塞冷却喷嘴部件 PISTON-COOLING ORIFICE ASSY 6
13 D02A-111-40 曲轴推力轴承(上) THRUST BEARING (UPPER), CRANKSHAFT 1
D02A-323-40 曲轴推力轴承下瓦 THRUST BEARING (LOWER), CRANKSHAFT 1
14 D02A-112-40 主轴承下瓦 MAIN BEARING（DOWN） 6
15 D02A-110-40 主轴承上瓦 MAIN BEARING（UP） 6
16 D02A-114-01C 凸轮轴推力板 CAMSHAFT THRUST PLATE 1
17 B00000631 六角头螺栓 HEXAGON HEAD BOLT 2 GB/T5783-M8*20
18 D02A-129-40 齿轮室垫片 GEAR HOUSING GASKET 1
19 B00002062 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M12*50
20 B00000098 圆柱销 SPRING PIN 2 GB/T119-A10*20
21 B00002142 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M8*35
22 B00002147 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*45
23 B00002153 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 7 Q/SC622-M8*55
24 B00001020 弹性圆柱销 ELASTIC PIN 3 GB/T879-12*12
25 D02A-307-01 垫片 GASKET 1
26 D02A-109-30B 气缸盖垫片 CYLINDER HEAD GASKET 1
27 D02A-107-40 气缸盖长螺栓 CYLINDER HEAD BOLT (LONG) 20
28 D02A-108-40 气缸盖短螺栓 CYLINDER HEAD BOLT (SHORT) 6
29 D02A-104-43 气缸套 CYLINDER LINER 6
30 D02A-171-30A 缸套封水圈 SEAL 18
31 D02A-312-01 圆柱销 SPRING PIN 2
32 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-10
33 B00001724 六角头螺塞 HEXAGON PIPE PLUG 2 Q/SC587.1-M10*1
34 D02A-133-30A 机油冷却器垫片 OIL COOLER GASKET 1
35 D02A-311-01 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2
36 D02A-306-01A 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 6
37 B00001811 加大毛垫圈 ENLARGED ROUGH WASHER 1 Q/SC597-8*26
38 B00001378 O形橡胶密封圈 O-RING 1 GB3452.1-16*2.65
39 D02A-168-01 六角头螺塞 HEXAGON PIPE PLUG 1
40 D02A-163-01 内六角螺塞(Z3/4) PLUG 1
41 B00000102 圆柱销 DOWEL,PIN 2 GB/T119-A12*24
42 D02A-115-01B 后盖板 PLATE 1
43 D02A-116-01 后盖板O型密封圈 O-RING 1
44 D02A-118-02B 曲轴后端油封 CRANKSHAFT REAR SEAL 1
45 B00002114 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8 Q/SC622-M6*16
46 B00002057 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 12 Q/SC622-M12*40
