Description

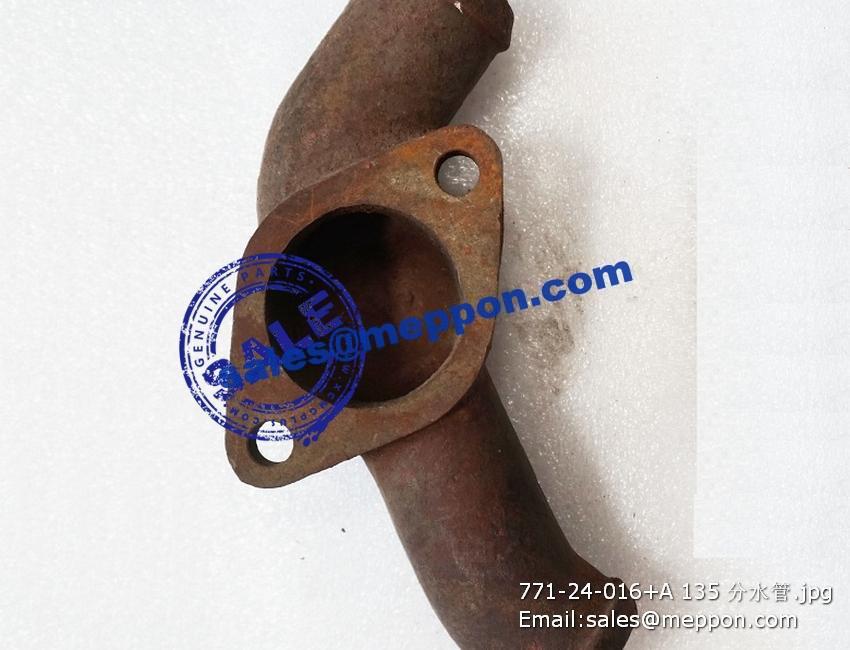

771-24-016+A 135 hose PS07811

1 B00002132 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 32 Q/SC622-M8*16
2 D03-001-37A 油底壳焊接部件 OIL SUMP ASSY (WELDED) 1
3 D03-110-01 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1
4 B00001727 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M16*1.5
5 B00001728 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M18*1.5
6 D03-110-02 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1

1 B00002047 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M12*25
2 D04-142-30C 前吊环 FRONT LIFTING EYE 1
3 D04-131-30 进气管垫片 GASKET, AIR INTAKE PIPE 6
4 D04-138-01A 加油盖 OIL FILLER COVER 1
5 D04-139-02 加油盖密封垫片 OIL FILLER COVER GASKET 1
6 D04-017-50 通气管接头部件 JOINT ASSY, FUMES DISPOSAL 1
7 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M6*12
8 B00001565 Q/SC1302-18~32: 喉箍 CLAMP 2
9 S00011811 油气分离器进气橡胶管 HOSE TO CRANKCASE VENTILATION FILTER 1
10 D04-143-30C 后吊环 REARLIFTING EYE 1
11 D04-001-38 气缸盖部件 CYLINDER HEAD ASSY 1
12 D04-135-30A 气缸盖罩密封带 VALVE COVER SEAL (RECTANGULAR) 1
13 D04-134-32 气缸盖罩壳 VALVE COVER 1
14 D04-007-32 摇臂总成 ROCKER ARM ASSY 6
15 D04-120-30 遥臂轴紧固螺栓 BOLT 6
16 D04-300-01A 罩壳螺栓密封圈 O-RING 6
17 D04-136-30B 缸盖罩壳螺栓 VALVE COVER BOLT 6
18 D04-301-01 罩壳螺栓密封圈垫圈 GASKET 6
19 B00002148 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 12 Q/SC622-M8*45-10.9
20 D04-148-30 喷油器紧固螺栓 INJECTOR BOLT 6
21 D04-147-32 喷油器压板 INJECTOR CLAMP 6
22 D04-307-01A 进气管螺栓 BOLT, AIR INTAKE PIPE 6
23 D04-302-02 喷油器压板垫块 INJECTOR CLAMP SPACER 6
24 B00002016 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 6 Q/SC622-M10*55
25 D04-128-30A 推杆 PUSH ROD 12
26 D04-127-30C 挺柱 TAPPET 12
27 D04-113-30A 气门弹簧 VALVE SPRING 12
28 D04-107-30 排气门杆油封 VALVE STEM SEAL, EXHAUST 12
29 D04-114-30B 气门弹簧上座 VALVE SPRING RETAINER 12
30 D04-115-30A 气门锁夹 VALVE COLLET (HALF) 24
31 D04-111-31B 排气门 EXHAUST VALVE 6
32 D04-110-34 进气门 INTAKE VALVE 6
33 D04-306-01 调温器双头螺栓 THERMOSTAT STUD 4
34 D04-151-30 放气接头 JOINT 1
35 D04-309-01 内六角螺塞(Z3/8) PLUG 1
36 D04-305-01 调温器双头螺栓 THERMOSTAT STUD 2
37 B00000846 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 6 GB/T6177-M8-Y
38 D04-304-01 调温器垫片 THERMOSTAT GASKET 1
39 D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 12
40 D04-144-30 排气管垫片 GASKET, EXHAUST MANIFOLD 6
41 D04-164-01 商标 TRADEMARK 1
