Description

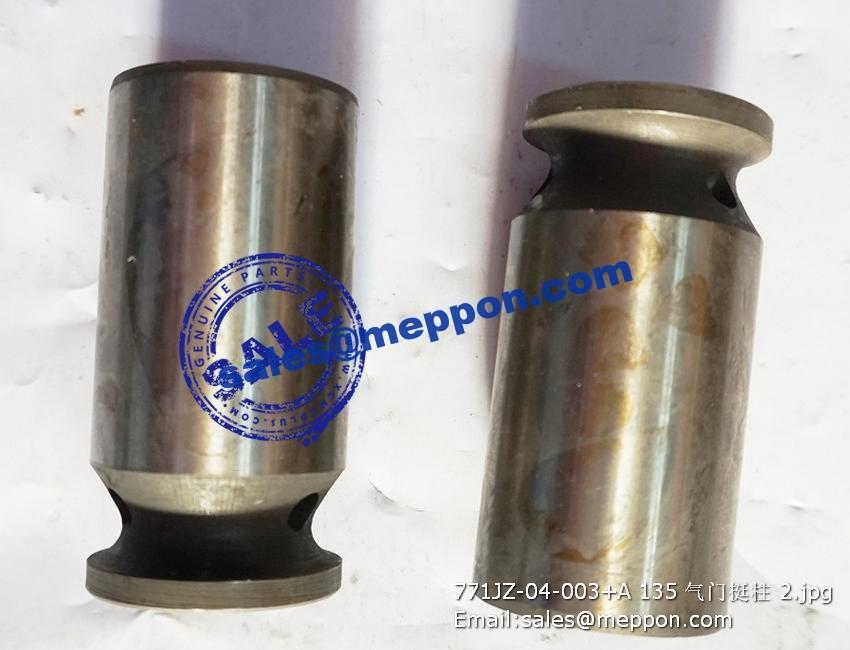

771JZ-04-003+A 135 VALVE TAPPET PS07846

1 D17-002-02 机油滤清器部件 OIL FILTER ASSY 1

1 D18-000-160 机油冷却器总成 OIL COOLER GROUP 1

1 D19-118-01 接头 JOINT 1
2 B00002193 垫圈 WASHER 2 Q/SC642.1-03-12
3 B00002178 铰接螺栓 BANJO BOLT 1 Q/SC642.1-01-M12*1.25
4 D19-110-05B 增压器进油管 OIL INLET PIPE, TURBOCHARGER 1
5 D19-113-02 垫片 GASKET 1
6 B00001999 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M10*25
7 S00000546 增压器回油管焊接部件 TURBOCHARGER OIL RETURN TUBE ASSY (WELDED) 1
8 D19-114-01A 吸油管法兰垫片 GASKET, PIPE FLANGE-OIL SUCTION PUMP 1
9 B00003351 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW 2 GB/T70.1-M6*20
10 D19-001-01 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP 1
11 B00001252 弹簧垫圈 SPRING WASHER 1 GB/T93-6
12 B00001297 平垫圈 PLAIN WASHER 1 GB/T97.1-6-200HV-Y
13 B00002118 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M6*20
14 B00000843 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 1 GB/T6177-M6-Y
15 D19-105-01 吸油管支架 BRACE, OIL SUCTION PIPE-OIL SUCTION PUMP 1
16 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M6*12
17 D02A-171-80 O型圈 O-RING 2
