Description

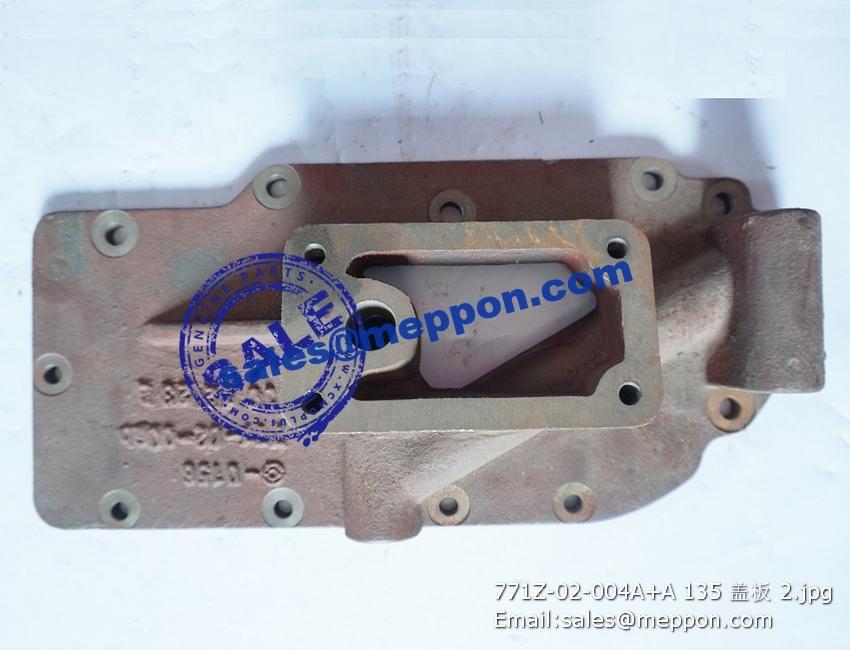

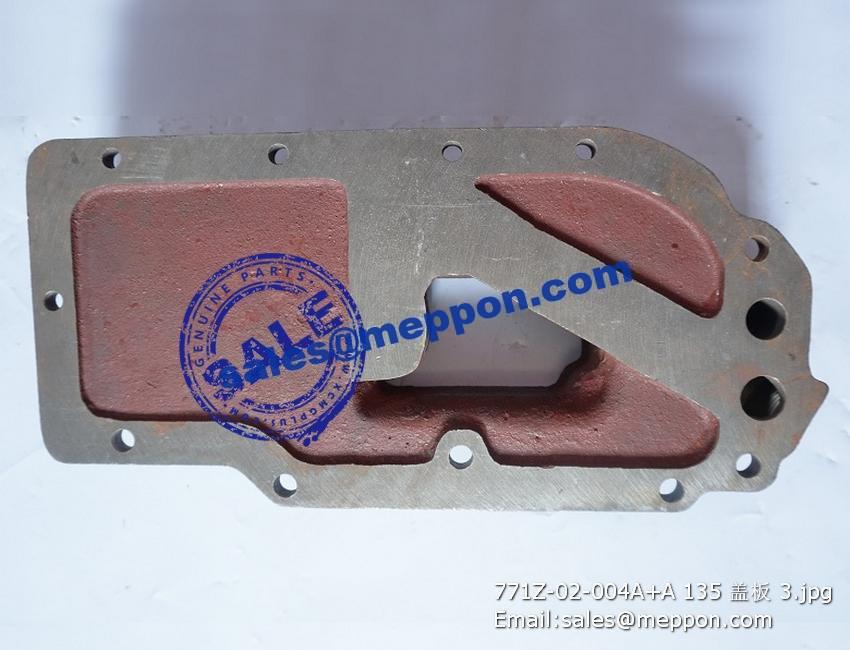

771Z-02-004A+A 135 COVER PS07866

1 D20-000-32 水泵组件 WATER PUMP GROUP 1

1 D04-309-01 内六角螺塞(Z3/8) HEXAGON COUNTERSUNK PIPE PLUG 1
2 D22-101-38 调温器体 THERMOSTAT HOUSING 1
3 D22-102-04 调温器 THERMOSTAT ASSY 2
4 D22-103-33 垫片 GASKET 1
5 D22-105-01 套筒销 ELASTIC PIN 2
6 B00000121 圆柱销 DOWEL,PIN 2 GB/T119-A6*12
7 D02A-163-01 内六角螺塞(Z3/4) HEXAGON COUNTERSUNK PIPE PLUG 1

1 D24A-005-30 “DCA4”水滤器部件 DCA4 WATER FILTER ASSY 1
2 B00001563 喉箍 CLAMP 4 Q/SC1302-16~25
3 D24A-006-01 水滤器盖部件 BASE ASSY, WATER FILTER 1
4 D24A-112-42 水滤器固定板 MOUNTING PLATE, WATER FILTER 1
5 B00002139 六角法兰面螺栓 HEX HEAD BOLT 4 Q/SC622-M8*30
6 D24A-116-34 水滤器进水胶管 WATER FILTER INLET HOSE 1
7 D24A-110-30A 出水管 WATER OULET TUBE 1
8 D02A-164-01 内六角螺塞(Z1/2) PLUG 1
9 D24A-115-02 直管接头 JOINT 2
10 D24A-135-02 护套弹簧 SPRING 1
11 D24A-116-34 水滤器连接接管 JOINT, WATER FILTER 2
12 D22-105-01 套筒销 ELASTIC PIN 2
13 D24A-107-02A 橡胶进水弯管 WATER INLET ELBOW 1
14 B00001575 喉箍 CLAMP 2 Q/SC1302-52~76
