Description

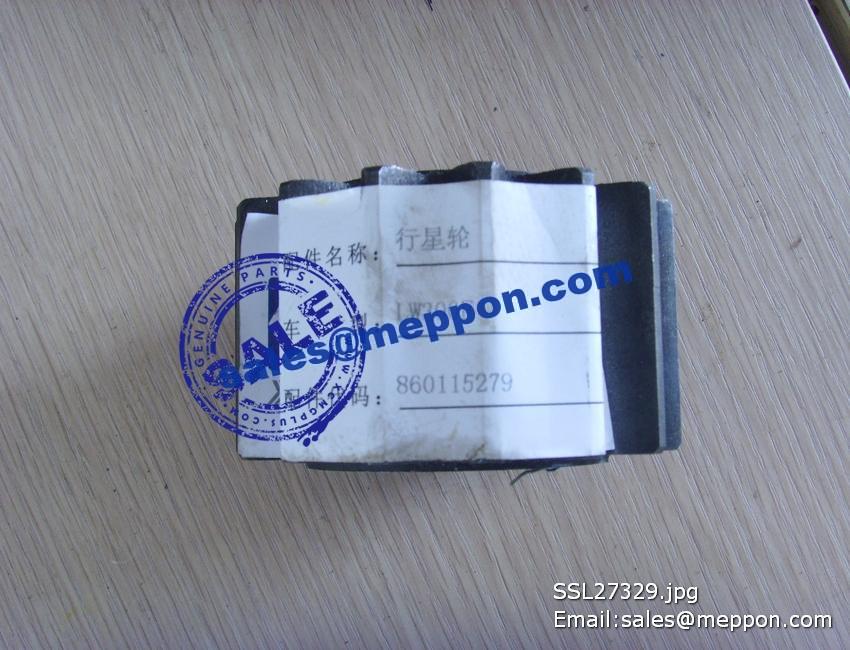

79001547AD 860115279 83240204 PLANET GEAR LW300F XCMG PARTS

1 橡胶水管 HOSE B00002398(Q/SC646-45*250) 1
2 喉箍 CLAMP B00001573(Q/SC1302-40~64) 10
3 橡胶水管 HOSE B00002395(Q/SC646-45*150) 1
4 六角头螺栓 BOLT B00000509(GB/T5783-M10*30) 2
5 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 4
6 冲制光垫圈 STAMPED WASHER B00001766(Q/SC596-10*18) 4
7 橡胶水管 HOSE B00002391(Q/SC646-45*100) 1
8 调温器装配部件 THERMOSTAT ASSY G24-004-12+A 1
8.1 垫片 GASKET 761-24-004A+A 2
8.2 蜡质调温器 THERMOSTAT, WAX 761G-24-003B+A 2
8.3 垫片 GASKET 761G-24-006B+A 1
8.4 调整垫片 ADJUST GASKET 761G-24-041+A 1
8.5 调温器体 HOUSING, THERMOSTAT G24-116-02+A 1
8.6 调温器座 BASE, THERMOSTAT G24-145-01+A 1
8.7 六角头螺栓 BOLT B00000392(GB/T5782-M10*60) 4
8.8 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 4
8.9 方头锥形螺塞 SQUARE HEAD CONE PIPE PLUG B00001716(Q/SC585-R1/2) 1
9 除气管 AIR DISCHARGING PIPE G24-151-01+B 1
10 橡胶水管 HOSE B00002321(Q/SC646-19*380) 1
11 喉箍 CLAMP B00001569(Q/SC1302-21~44) 3
12 水管焊接部件 WATER PIPE ASSY (WELDED) G24-003-05+B 1
13 垫片 GASKET 761G-24-044+A 1
14 六角头螺栓 BOLT B00000631(GB/T5783-M8*20) 2
15 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 2
16 橡胶水管 HOSE G24-142-01+A 1
17 水管 HOSE G24-109-01+A 1
18 橡胶水管 HOSE B00002408(Q/SC646-51*145) 1
19 垫片 GASKET G24-113-01+A 1
20 放水阀 WATER DRAIN COCK 741G-02-004+A 1
21 水管 HOSE G24-110-01A+A 1
22 垫片 GASKET G18-107-01+A 1
23 六角头螺栓 BOLT B00000392(GB/T5782-M10*45) 2
24 水管焊接部件 WATER PIPE ASSY (WELDED) G24-013-01+A 1
1 高压油管部件(第一缸) HIGH PRESSURE FUEL PIPE ASSY, NO.1 CYLINDER G26-001-03+A 1
2 高压油管部件(第二缸) HIGH PRESSURE FUEL PIPE ASSY, NO.2 CYLINDER G26-002-03+A 1
3 高压油管部件(第三缸) HIGH PRESSURE FUEL PIPE ASSY, NO.3 CYLINDER G26-003-03+A 1
4 高压油管部件(第四缸) HIGH PRESSURE FUEL PIPE ASSY, NO.4 CYLINDER G26-004-03+A 1
5 高压油管部件(第五缸) HIGH PRESSURE FUEL PIPE ASSY, NO.5 CYLINDER G26-005-03+A 1
6 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) 761-26A-010+A 1
7 铰接螺栓 BANJO BOLT B00002232（Q/SC642.3-1-M8*1*22） 6
8 复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001555（Q/SC1294-8） 12
9 六角头螺栓 BOLT B00000611(GB/T5783-M6*25) 12
10 弹簧垫圈 SPRING WASHER B00001252(GB/T93-6) 12
11 平垫圈 WASHER B00001297(GB/T97.1-6-200HV-Y ) 12
12 上夹片 CLAMP A762ZA-26-004+A 6
13 夹箍衬垫 CLAMP A762ZA-26-003+A 12
14 油管固定支架焊接部件 FUEL RETURN PIPE ASSY (WELDED) A762ZA-26-010+A 6
15 平垫圈 WASHER B00001275(GB/T97.1-10-200HV-Y) 6
16 高压油管部件(第六缸) HIGH PRESSURE FUEL PIPE ASSY, NO.6CYLINDER G26-006-03+A 1
17 夹片 CLAMP G26-115-01+A 1
18 夹片 CLAMP G26-117-01+A 11
19 六角头螺栓 BOLT B00000591(GB/T5783-M5*20) 8
20 弹簧垫圈 SPRING WASHER B00001251(GB/T93-5) 8
21 I型六角螺母 BOLT B00000787(GB/T6170-M5-Y) 8
22 六角头螺栓 BOLT B00000631(GB/T5783-M8*20) 1
23 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 1
24 低压油管 FUEL PIPE, LOW PRESSURE 771-26-014 +A 1
25 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) 771-26-180+A 1
26 柴油软管 FUEL HOSE 763G-26-001A+A 1
27 夹箍 CLAMP G26-104-01+A 1
28 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 1
29 小六角头螺栓 Hexagon head bolts-Full thread B00001910(Q/SC611.1-M10*28) 1
30 夹片 CLAMP G26-114-01+A 1
31 低压油管 FUEL PIPE, LOW PRESSURE 771-26-015+A 1
32 夹片焊接部件 CLAMP ASSY (WELDED) G26-007-01+A 2
33 夹片 CLAMP G26-116-01+A 2
34 塑料回油管 PLASTIC HOSE,INJECTOR LEAK-OFF 761G-26A-007+A 1
35 垫块 SPACER 765KB-02-002+A 2
36 回油管焊接部件 FUEL RETURN PIPE ASSY (WELDED) 761-26A-020+A 1
