Description

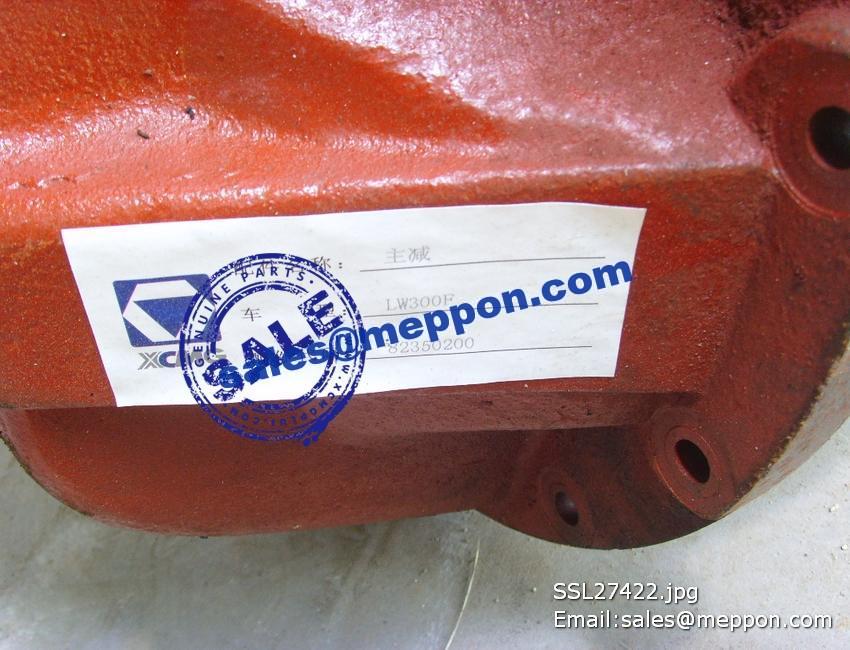

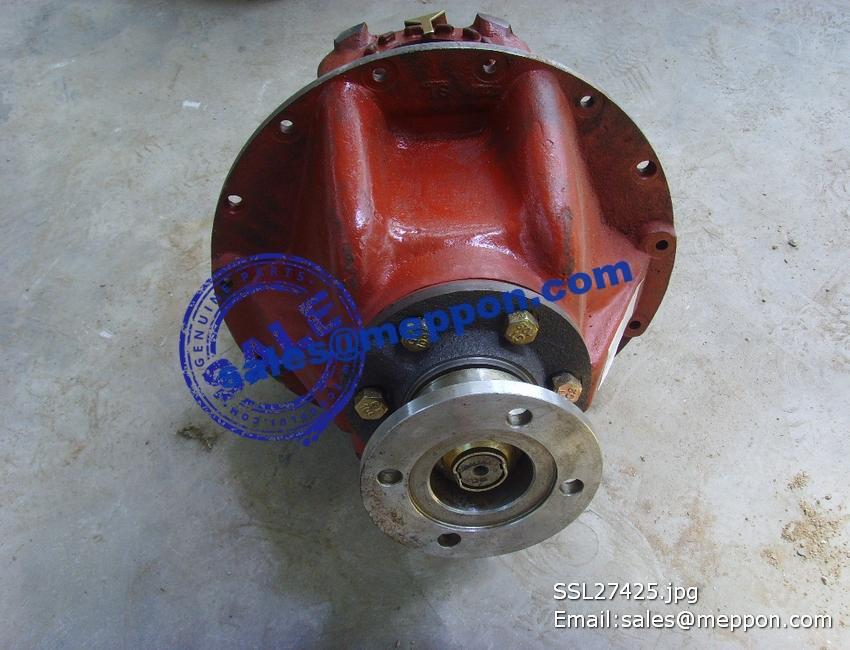

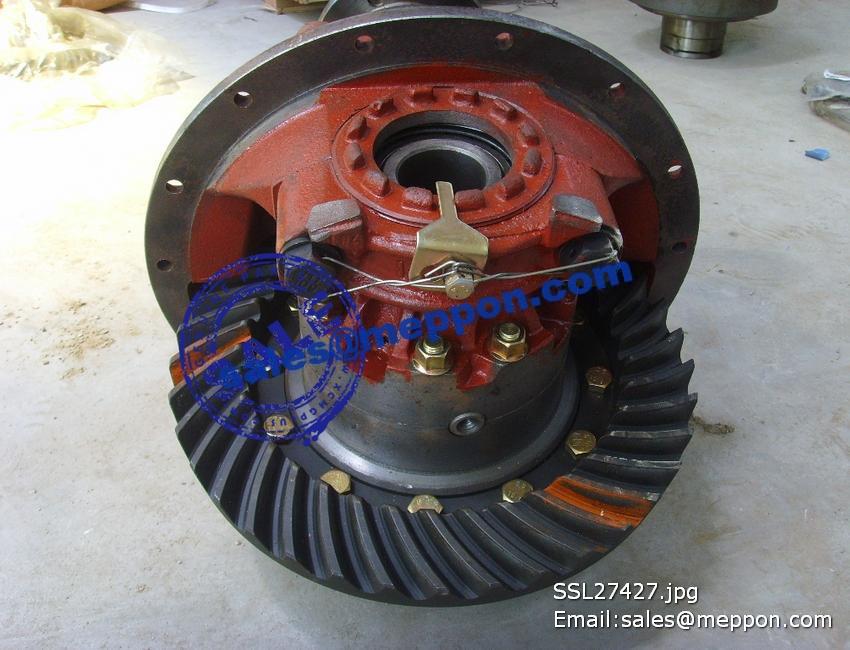

82350200 Carrier assembly 75205088A 75205088B

1 六角头螺栓 BOLT B00000637(GB/T5783-M8*30) 1
2 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 1
3 小六角头螺栓 BOLT B00001923(Q/SC611.1-M10*75) 1
4 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 4
5 加大毛垫圈 ENLARGED ROUGH WASHER B00001796(Q/SC597-10*26) 1
6 整体式无刷交流发电机 ALTERNATOR G11-102-04A+A 1
7 发电机支架 ALTERNATOR BRACKET G11-105-01+A 1
8 撑杆套 BUSHING G11-107-01+A 1
9 I型六角螺母 NUT B00000772(GB/T6170-M12-Y) 2
10 螺纹撑杆 WHORL STAY BAR G11-106-01+A 1
11 起动电机 STARTING MOTOR 765I-11-003+A 1
12 垫片 GASKET 765I-11-002+B 1
13 小六角头螺栓 BOLT B00001934(Q/SC611.1-M12*35) 3
14 弹簧垫圈 SPRING WASHER B00001237(GB/T93-12) 3
15 汽车V带 AUTOMOTIVE V-BELT B00001344(GB12732-AV17*1400) 1
16 六角头螺栓 BOLT B00000377(GB/T5782-M10*(150)-10.9) 1
17 小六角螺母 SMALL HEX HEAD NUT B00001883(Q/SC610.1-M10) 1
18 平垫圈 PLAIN WASHER B00001275(GB/T97.1-10-200HV-Y) 1
19 小六角头螺栓 BOLT B00001908(Q/SC611.1-M10*25) 2
20 冲制光垫圈 STAMPED WASHER B00001766(Q/SC596-10*18) 2
21 蓄电池连接线装配部件 WIRE ASSY.(WITH BATTERY) 761-11-020A+A 1
22 起动机与蓄电池连接线装配部件 WIRE ASSY.(CONNECT STARTING MOTOR WITH BATTERY) 761-11-010A+A 1
23 蓄电池接地线装配部件 WIRE ASSY, BATTERY TO EARTH 761-11-030A+A 1
1 进气管 AIR INTAKE PIPE G12-102-05+A 1
2 中冷器垫片 GASKET, INTERCOOLER G12-106-01+A 1
3 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 28
4 I型六角螺母 NUT B00000793(GB/T6170-M8-Y) 6
5 双头螺柱 STUD B00001159(GB/T899–M8*20-8.8-Y) 6
6 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREW B00000917(GB/T70-M8*25) 22
7 垫片 GASKET G12-108-01+A 1
8 六角头螺栓 BOLT B00000509(GB/T5783-M10*30) 4
9 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 8
10 进气弯管焊接部件 AIR INTAKE PIPE ELBOW ASSY (WELDED) G12-002-01+B 1
11 喉箍 CLAMP B00001583(Q/SC1302-78~101) 2
12 套管 HOSE A762ZA-12-003A+A 1
13 六角头螺栓 BOLT B00000505(GB/T5783-M10*25) 4
14 六角法兰面螺栓 BOLT B00002132(Q/SC622-M8*16) 2
15 橡胶水管 HOSE B00002465(Q/SC646-89*80) 1
16 喉箍 CLAMP B00001586(Q/SC1302-91~114) 2
17 空滤器支架焊接部件 AIR FILTER BRACKET ASSY (WELDED) G12-003-02+B 1
18 过渡接管焊接部件 AIR CROSSOVER TUBE ASSY (WELDED) G12-004-01+A 1
1 顶套 TIP SLEEVE G13-106-02+B 6
2 O型密封圈 O-RING U641A-8M5253+A 12
3 垫片 GASKET G13-108-01+A 6
4 闷头 PLUG 761G-04-052D+A 13
5 方头锥形螺塞 SQUARE HEAD CONE PIPE PLUG B00001719(Q/SC585-R1/4/B2) 1
6 垫片 GASKET 761Z-13-007A+A 1
7 双头螺柱 STUD B00001148(GB/T899-M10*30-8.8-Y) 4
8 I型六角螺母 NUT B00000768(GB/T6170-M10-Y) 4
9 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 24
10 夹箍 CLAMP S00003033+02 2
11 盖板支架 COVER PLATE SUPPORT S00003032+02 2
12 衬垫 GASKET G13-104-01+A 2
13 六角法兰面螺栓 BOLT B00001993(GB/T5787-M10*20) 4
14 六角头螺栓 BOLT B00000634(GB/T5783-M8*25) 18
15 水冷排气管 WATER COOLED EXHAUST MANIFOLD G13-101-03+A 1
16 垫片 GASKET G13-102-01+A 1
17 盖板 COVER PLATE G13-109-01+A 1
18 六角法兰面螺栓 BOLT B00002084(Q/SC622-14*35) 4
19 六角头螺栓 BOLT B00000694(GB/T5786-M8*1*20) 6
1 单节机油泵组件 LUBE OIL PUMP GROUP G15-000-01+A 1
1 机油滤清器部件 OIL FILTER ASSY D17-002-02+B 2
2 机油滤清器装配部件 OIL FILTER ASSY G17-003-01+A 1
2.1 空心螺套 SHEATH G17-104-01+A 2
2.2 机油滤器座 BASE, OIL FILTER G17-103-01A+A 1
3 接头 JOINT G17-102-01+A 1
1 机油冷却器盖 COVER, OIL COOLER G18-101-01A+A 1
2 主油道调压阀体 BODY, PRESSURE REGULATING VALVE-OIL GALLEY G18-102-01+A 1
3 主油道调压弹簧 SPRING, PRESSURE REGULATING VALVE-OIL GALLEY G18-103-01+A 1
4 主油道调压螺帽 NUT, PRESSURE REGULATING VALVE-OIL GALLEY G18-104-01+A 1
5 垫片 GASKET G18-105-01+A 1
6 垫片 GASKET G18-106-01A+A 4
7 垫片 GASKET G18-107-01+A 1
8 旁通阀盖 COVER, BYPASS VALVE-OIL FILTER G18-108-01+A 1
9 阀座 VALVE SEAT G18-109-01+A 1
10 弹簧 SPRING G18-110-01+A 1
11 弹簧座 SPRING SEAT G18-111-01+A 1
12 旁通阀阀芯 CORE G18-112-01+A 1
13 六角头螺栓 BOLT B00000505(GB/T5783-M10*25) 1
14 六角头螺栓 BOLT B00000528(GB/T5783-M10*70) 1
15 六角头螺栓 BOLT B00000634(GB/T5783-M8*25) 4
16 I型六角螺母 NUT B00000793(GB/T6170-M8-Y) 1
18 双头螺柱 STUD B00001138(GB/T899-GM8-M8*30-8.8-Y) 1
19 盖形螺母 NUT B00001236(GB/T923-M8) 8
20 弹簧垫圈 SPRING WASHER B00001237(GB/T93-10) 2
21 弹簧垫圈 SPRING WASHER B00001253(GB/T93-8) 13
22 平垫圈 WASHER B00001299(GB/T97.1-8-200HV-Y) 13
23 内六角头螺塞 HEXAGON COUNTERSUNK PIPE PLUG B00001708(Q/SC584.2-M24*1.5) 2
24 内六角头螺塞 HEXAGON COUNTERSUNK PIPE PLUG B00001709(Q/SC584.2-M27*1.5) 2
25 调整铜垫圈 COPPER WASHER, OIL COOLER G18-113-01+A 1
26 复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001552(Q/SC1294-24) 2
27 复合式密封硬垫圈 RUBBER COATED HARD WASHER B00001553(Q/SC1294-27) 2
29 机油冷却器芯子部件 OIL COOLER CORE ASSY G18-001-01B+B 2
