Description

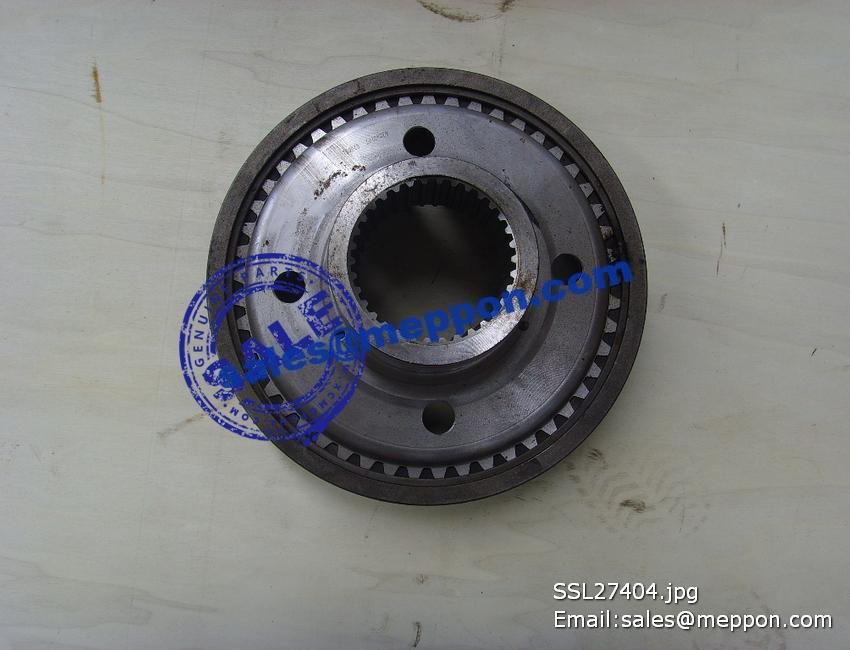

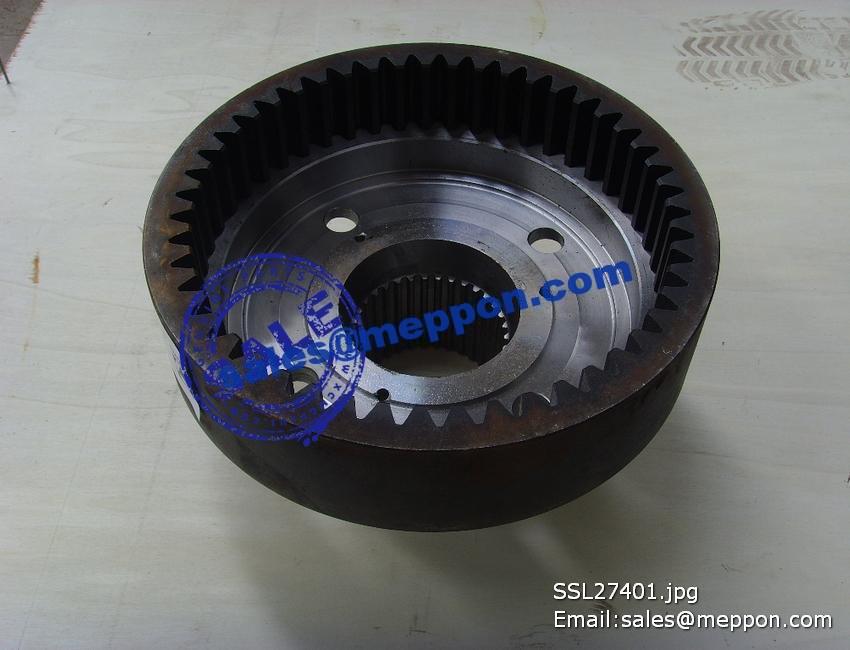

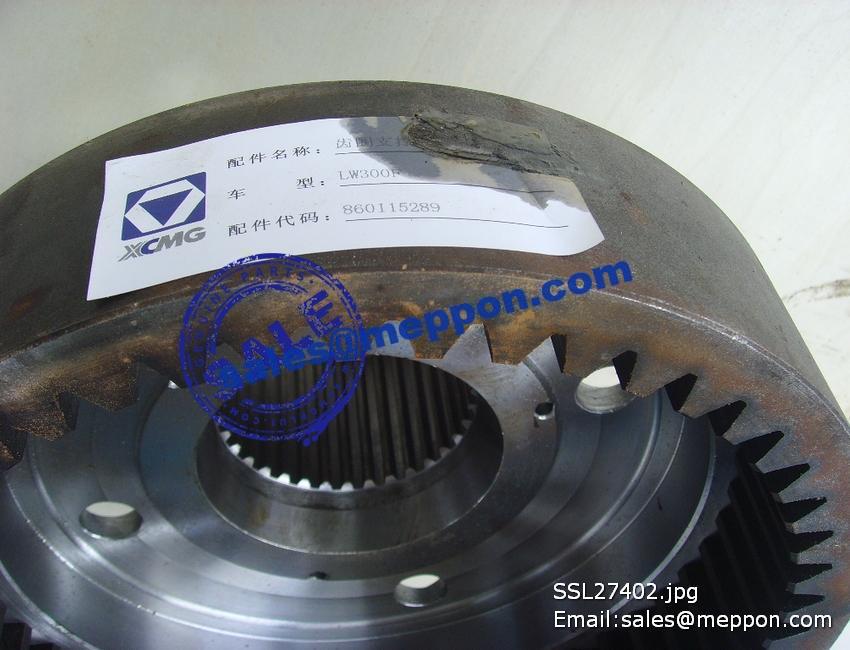

860115289 83240208 83240209 83240210 77500938BD INTERNAL GEAR XCMG LW300F LW300FN
| 1 | 齿轮室盖板 | PLATE, GEAR HOUSING COVER | G02-107-07+B | 1 |
| 2 | I型六角螺母 | NUT | B00000768(GB/T6170-M10-Y) | 5 |
| 3 | 双头螺柱 | BOLT | B00001098(GB/T899-GM10-M10*25-8.8-Y) | 5 |
| 4 | 弹簧垫圈 | SPRING WASHER | B00001237(GB/T93-10) | 114 |
| 5 | 垫片 | GASKET | G02-139-01+A | 1 |
| 6 | 平垫圈 | WASHER-HARD | B00001281(GB/T97.1-14-200HV-Y) | 15 |
| 7 | 弹簧垫圈 | SPRING WASHER | B00001241(GB/T93-14) | 31 |
| 8 | 六角头螺栓 | BOLT | B00000685(GB/T5786-M14*1.5*45) | 13 |
| 9 | 支架 | BRACKET | 761-02-033A+A | 2 |
| 10 | O型密封圈 | O-RING | 763CA-02-024+A | 1 |
| 11 | 六角头螺栓 | BOLT | B00000687(GB/T5786-M14*1.5*50) | 2 |
| 12 | 吊环螺钉 | BOLT, LIFTING EYE | B00000952(GB/T825-M16-Y) | 2 |
| 13 | 小六角头螺栓 | BOLT | B00001953(Q/SC611.1-M8*1*14) | 2 |
| 14 | 弹簧垫圈 | SPRING WASHER | B00001253(GB/T93-8) | 22 |
| 15 | 指针 | INDICATOR | 763G-02-013+A | 1 |
| 16 | 指针盖板 | PLATE, COVER INDICATOR | 761G-02-046A+A | 1 |
| 18 | 六角头螺栓 | BOLT | B00000631(GB/T5783-M8*20) | 2 |
| 19 | 平垫圈 | WASHER-HARD | B00001299(GB/T97.1-8-200HV-Y) | 6 |
| 20 | 平垫圈 | WASHER-HARD | 761W-02-009A+A | 38 |
| 21 | 气缸盖螺栓 | BOLT, CYLINDER HEAD | 761W-02-004C+A | 30 |
| 22 | 气缸盖螺母 | NUT, CYLINDER HEAD | 761W-02-005A+A | 38 |
| 23 | 气缸盖螺栓(长) | BOLT (LONG), CYLINDER HEAD | 761G-02-011+A | 8 |
| 24 | 垫圈 | WASHER | 761W-02-085A+A | 6 |
| 25 | 定位套筒 | DOWEL BUSHING | 761W-02-064A+A | 6 |
| 26 | 气缸盖垫片 | GASKET, CYLINDER HEAD | 7651A-02-001+A | 1 |
| 27 | 六角头螺栓 | BOLT | B00000502(GB/T5783-M10*20) | 3 |
| 30 | 机体机械加工部件 | CYLINDER BLOCK MACHINGED ASSEMBLY | G02-001-04+A | 1 |
| 30.1 | 机体 | CYLINDER BLOCK | G02-101-04+A | 1 |
| 30.2 | 主轴承盖 | CAP, MAIN BEARING | G02-109-01A+A | 6 |
| 30.3 | 推力挡主轴承盖 | CAP, THRUST BEARING | G02-110-01A+A | 1 |
| 30.4 | 主轴承螺栓 | BOLT, MAIN BEARING | G02-111-01+A | 14 |
| 30.5 | 定位销 | DOWEL PIN | G02-134-01+A | 1 |
| 31 | 凸轮轴轴承 | BUSHING, CAMSHAFT | G02-115-01+A | 7 |
| 32 | 放水阀 | WATER DRAIN COCK | 761G-02-105+A | 2 |
| 33 | 飞轮壳 | FLYWHEEL HOUSING | G02-103-07+A | 1 |
| 34 | 飞轮壳垫片 | GASKET, FLYWHEEL HOUSING | G02-104-01+A | 1 |
| 35 | 曲轴推力轴承 | THRUST BEARING, CRANKSHAFT | G02-114-01+A | 4 |
| 36 | 曲轴后端封油圈 | REAR OIL SEAL RING, CRANKSHAFT | G02-144-01A+A | 1 |
| 37 | 圆柱销 | DOWEL,PIN | B00000118(GB/T119-A5*14) | 4 |
| 38 | 小六角头螺栓 | BOLT | B00001922(Q/SC611.1-M10*70) | 1 |
| 39 | 平垫圈 | WASHER-HARD | B00001275(GB/T97.1-10-200HV-Y) | 92 |
| 40 | 油底壳密封垫 | SEAL PAD, OIL PAN | G02-116-01+B | 1 |
| 41 | 小六角头螺栓 | BOLT | B00001966(Q/SC611.1-M8*25) | 8 |
| 42 | 盖板 | COVER | G02-146-01+A | 1 |
| 43 | 垫片 | GASKET | G02-147-01+A | 1 |
| 44 | 活塞冷却喷嘴 | ORIFICE, PISTON COOLING JET | G02-150-01+A | 6 |
| 45 | 小六角头螺栓 | BOLT | B00001915(Q/SC611.1-M10*40) | 37 |
| 46 | 主轴承下瓦 | REAR MAIN BEARING HALF (LOWER) | G02-113-01+A | 7 |
| 47 | 主轴承上瓦 | REAR MAIN BEARING HALF (UPPER) | G02-112-01+A | 7 |
| 48 | 六角头螺栓 | BOLT | B00000509(GB/T5783-M10*30) | 13 |
| 49 | 喷油泵托架 | BRACKET, FUEL INJECTION PUMP | G02-118-01+A | 1 |
| 50 | 小六角头螺栓 | BOLT | B00001956(Q/SC611.1-M8*1*80) | 4 |
| 51 | 圆柱销 | DOWEL,PIN | B00000129(GB/T119-A8*18) | 2 |
| 52 | 复合式密封硬垫圈 | RUBBER COATED HARD WASHER | B00001551(Q/SC1294-22) | 1 |
| 53 | 小六角头螺栓 | BOLT | B00001974(Q/SC611.1-M8*65) | 4 |
| 54 | 小六角头螺栓 | BOLT | B00001975(Q/SC611.1-M8*70) | 2 |
| 55 | 小六角头螺栓 | BOLT | B00001942(Q/SC611.1-M14*1.5*35) | 16 |
| 56 | 齿轮室壳体 | HOUSING, GEAR | G02-105-04+C | 1 |
| 57 | 支架 | BRACKET | G02-138-03+A | 2 |
| 58 | 圆柱销 | DOWEL,PIN | B00000102(GB/T119-A12*24) | 12 |
| 59 | 六角头螺栓 | BOLT | B00000627(GB/T5783-M8*16) | 1 |
| 60 | 齿轮室盖板 | PLATE, GEAR HOUSING COVER | G02-107-04+B | 1 |
| 61 | 前油封 | CRANKSHAFT SEAL, FRONT | G02-119-02+A | 1 |
| 62 | 齿轮室壳体垫片 | GASKET, GEAR HOUSING | G02-106-01+B | 1 |
| 63 | 六角头螺栓 | BOLT | B00000505(GB/T5783-M10*25) | 8 |
| 64 | 复合式密封硬垫圈 | RUBBER COATED HARD WASHER | B00001545(Q/SC1294-10) | 4 |
| 65 | 铰接螺栓 | BOLT | B00002221(Q/SC642.3-1-M10*1*25) | 1 |
| 66 | 齿轮室盖板垫片 | GASKET, GEAR HOUSING COVER PLATE | G02-108-04+A | 1 |
| 67 | 封水圈 | WASHER SEAL | 761-02-003B+A | 12 |
| 68 | 防穴蚀封水圈 | WASHER SEAL | G02-117-01+A | 6 |
| 69 | 小六角头螺栓 | BOLT | B00001907(Q/SC611.1-M10*22) | 1 |
| 70 | 小六角头螺栓 | BOLT | B00001908(Q/SC611.1-M10*25) | 4 |
| 71 | 吊环 | LIFTING EYE | G02-163-01+A | 1 |
| 72 | 气缸套 | CYLINDER LINER | G02-102-01+B | 6 |
| 73 | 垫片 | GASKET | G02-159-01+A | 4 |
| 74 | 六角头螺栓 | BOLT | B00000512(GB/T5783-M10*35) | 8 |
| 75 | 膨胀水箱支架 | BRACKET, EXPANSION TANK | S00004335+02 | 1 |
| 76 | 六角法兰面螺栓 | HEX HEAD BOLT (FLANGED) | B00002111(Q/SC622-M12*30) | 4 |
| 77 | 圆柱销 | DOWEL,PIN | B00000130(GB/T119-A8*20) | 2 |
| 78 | 闷头(φ20) | PLUG (φ20) | D02A-161-01+A | 1 |
| 79 | 标牌铆钉 | RIVET, NAMEPLATE | B00000959(GB/T827-2.5*6-T3) | 4 |
| 80 | 标牌 | NAMEPLATE | G02-123-02A+B | 1 |
| 81 | 小六角头螺栓 | BOLT | B00001913(Q/SC611.1-M10*35) | 22 |
| 82 | 油尺焊接部件 | OIL DIPSTICK ASSY (WELDED) | G02-006-01+C | 1 |
| 83 | 六角头螺塞 | HEXAGON PIPE PLUG | B00001728(Q/SC587.1-M18*1.5) | 1 |
| 84 | 通气管装配部件 | FUMES DISPOSAL ASSY | G02-002-03+A | 1 |
| 84.1 | 通气管盖铆接部件 | COVER ASSY (RIVETED), FUMES DISPOSAL | 761-02-060A+A | 1 |
| 84.2 | 滤芯装配部件 | PARTS,FILTER ELEMENT | 761G-02-040A+A | 1 |
| 85 | 油尺套管焊接部件 | SLEEVE PIPE ASSY (WELDED), OIL DIPSTICK | G02-005-01+C | 1 |
| 86 | 小六角头螺栓 | BOLT | B00001897(Q/SC611.1-M10*105) | 1 |
| 87 | 闷头 | PLUG | G02-173-01+A | 4 |
| 88 | 内六角锥形螺塞 | HEXAGON COUNTERSUNK CONE PIPE PLUG | B00001695(Q/SC584.1-R1/2/B2) | 1 |
| 89 | 内六角锥形螺塞 | HEXAGON COUNTERSUNK CONE PIPE PLUG | B00001697(Q/SC584.1-R1/4/B2) | 5 |
| 90 | 闷头 | PLUG | 761G-04-052D+A | 7 |
| 91 | 六角头螺栓 | BOLT | B00000385(GB/T5782-M10*130) | 3 |
| 92 | 六角头螺栓 | BOLT | B00000396(GB/T5782-M10*50) | 2 |
| 93 | 六角头螺栓 | BOLT | B00000409(GB/T5782-M10*80) | 10 |
| 94 | 六角头螺栓 | BOLT | B00000412(GB/T5782-M10*90) | 2 |
| 95 | 机油冷却器垫片 | GASKET, OIL COOLER | G02-121-02+A | 1 |
| 96 | O形橡胶密封圈 | O-RING | B00000296(GB/T3452.1-14*2.65) | 1 |
| 97 | 套管 | SLEEVE PIPE | G02-124-01+A | 1 |
| 98 | 双头螺柱 | BOLT | B00001098(GB/T899-GM10-M10*100-8.8-Y) | 2 |
| 99 | 小六角头螺栓 | BOLT | B00001900(Q/SC611.1-M10*125) | 2 |
| 100 | 盖板 | G02-177-01+A | 1 |
