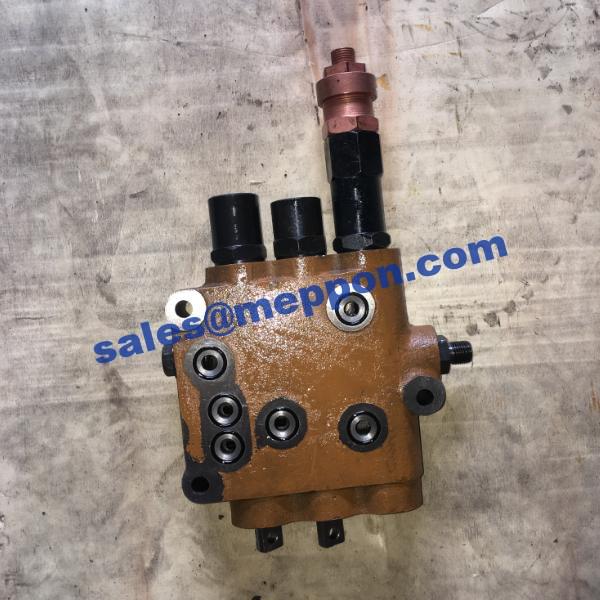

957H.4.7 957 VALVE CHANGLIN WHEEL LOADER

Description

957H.4.7 957 VALVE CHANGLIN WHEEL LOADER

1 Z50B.4.6-1 1 轴承盖 Bearing cover 1 9560007-
2 Z50B.4.1-3 1 纸垫 Paper pad 1组 9560007-
3 B-G00894A-00017 1 挡圈 50 Snap ring 3 9560007-
4 B-G002760-00030 1 滚动轴承 6310 Bearing 2 9560007-
5 Z50B.4.6-3 1 轴套 Bushing 1 9560007-
6 B-G002760-00007 1 滚动轴承 6010 Bearing 1 9560007-
7 956.4A.4-1L 1 倒档齿轮 Rear gear 1 9560007-
8 B-G002760-00009 1 滚动轴承 6012 Bearing 2 9560007-
9 Z50B.4.2-16 1 轴承垫 Bearing washer 2 9560007-
10 Z50B.4.2-11 1 卡环 Snap ring 4 9560007-
11 Z50B.4.2-22 1 压盖 Cover 2 9560007-
12 Z50B.4.2-7 1 主动摩擦片 Drive disc 14 9560007-
13 Z50B.4.2-8 1 从动摩擦片 Drive disc 12 9560007-
14 Z50B.4.2-15 1 波形弹簧 Wave spring 24 9560007-
15 Z50B.4.2-12 1 活塞 Piston 2 9560007-
16 Z50B.4.2-23 1 挡圈 Retainer 8 9560007-
17 Z50B.4.2-24 1 矩形密封圈 Seal ring 2 9560007-
18 Z50B.4.6-5 1 缸体 Cylinder body 1 9560007-
19 Z50B.4.6-9 1 齿圈 Gear ring 1 9560007-
20 Z50B.4.2-10 1 活塞回位弹簧 Retraction spring 8 9560007-
21 Z50B.4.2-9 1 活塞回位拉杆 Retraction drag linker 8 9560007-
22 B-G057830-00010 1 螺栓 M10×30 ZnD Bolt 12 9560007-
23 B-G000930-00001 1 垫圈 10 Washer 12 9560007-
24 B-G000780-00006 1 螺钉 M12×12 Screw 2 9560007-
25 Z30.4.1-19 1 油封环 Searing 4 9560007-
26 Z50B.4.6-8 1 前进倒退挡轴 Forward and reverse haft 1 9560007-
27 Z50E.4.5-1 1 前进挡齿轮 Forward gear 1 9560007-
28 B-G002760-00008 1 滚动轴承 6011 Bearing 1 9560007-
29 Z50B.4.6-7 1 轴套 Bushing 1 9560007-
30 B-G09877A-00022 1 油封 FB50×70×12B Oil seal 1 9560007-
W-15-00114 1 油封AE2857E0(NOK) Oil seal 1 9560007-
31 Z50B.4.6-10 1 轴承盖 Bearing cover 1 9560007-
