Description

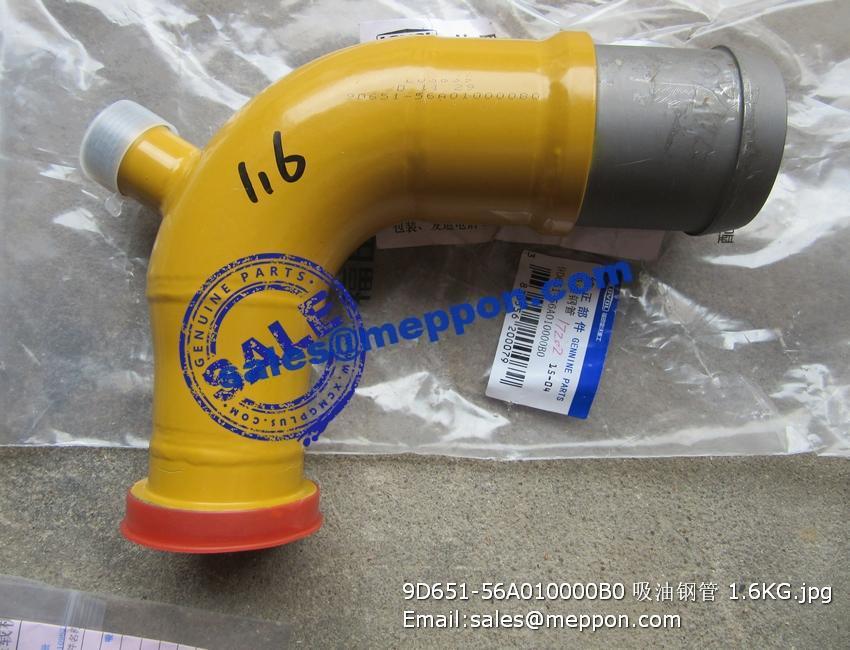

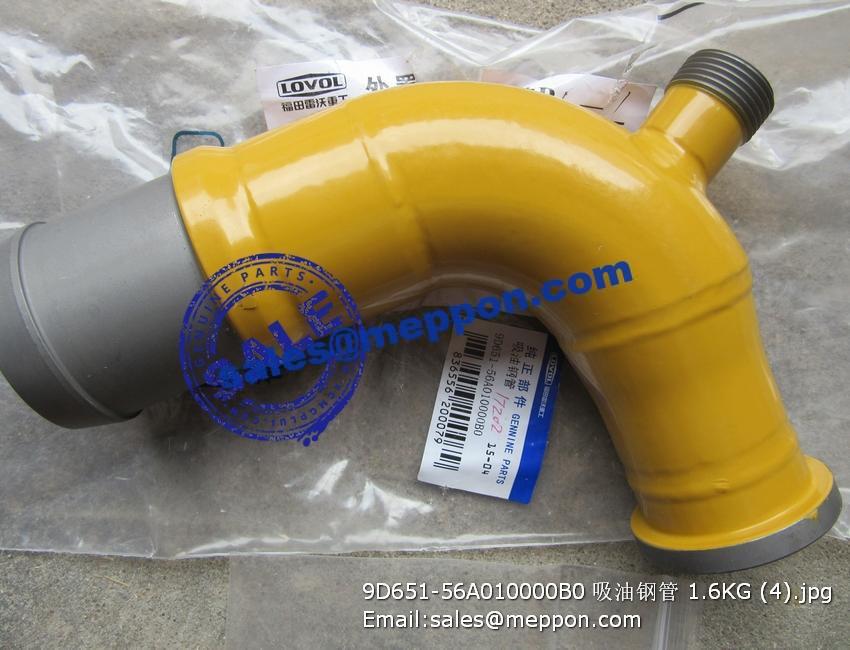

9D651-56A010000B0 Oil suction steel pipe FOTON LOVOL FL936F SPARE PARTS
1 QLWZG0 9-103636 Tee compound joint 1
2 9D650-56A000001A0 Flange 2
3 QLWZG080-003612 Straight flange joint 1
4 GBT 0.1-M8x30-8.8 Hexagon socket cap head screw 4
5 GBT93-8-A0P Standard spring washer 10
6 9D650-56A030000A0 Gear pump 1
GBT5 83-M12x30-8.8-A3L Hex bolt 4
8 GBT93-12-A0P Standard spring washer 4
9 9D651-56A010000B0 Oil suction steel pipe 1
10 IS03601-4 .22×3.53- 0 〇 0-ring 1
11 9D650-56A000002B0 Oil suction hose 1
12 =3488’0- 80 Hoop 4
13 GBT166 4.1-M12x30-8.8-A2L Hex flange bolt 4
15 9D650-56A000003A0 Flange 1
16 GBT 0.1-M8x20-8.8 Hexagon socket cap head screw 6
1 9D650-56A000004A0 Connecting sleeve 1
19 QLWZG090-024450 Separated flange 2
1 S00003086 淡水泵部件 WATER PUMP ASSY 1
2 S00003597 密封圈 O-RING 1
3 B00004885 六角法兰面螺栓 HEXAGON BOLTS 2
4 S00003915 机油泵部件 OIL PUMP ASSY 1
5 B00004991 六角法兰面螺栓 HEXAGON BOLTS 4
6 B00004646 内六角锥形螺塞 HEXAGON COUNTERSUNK CONE PIPE PLUG 1
7 B00004583 碗形塞片 PLUG 1
8 S00000949 定位套 DOWEL SLEEVE 2
9 S00004645 曲轴前油封 CRANKSHAFT FRONT SEAL 1
10 S00010434 前齿轮室罩盖维修组件 FRONT GEAR HOUSING COVER SERVICE GROUP 1
11 B00002147 螺栓-前齿轮室罩盖 BOLT 7
12 B00002139 螺栓-前齿轮室罩盖 BOLT 6
1 S00003834 排气管垫片 GASKET, EXHAUST MANIFOLD 6
2 S00010136 排气管 EXHAUST MANIFOLD 1
3 S00003833 排气管螺栓垫块 EXHAUST PIPE BOLT SPACER 12
4 D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 12
5 S00016464 排气管隔热套 HEAT SHIELD, EXHAUST MANIFOLD 1
6 S00011868 排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD 1
7 B00001998 六角法兰面螺栓 HEXAGON BOLTS 2
8 S00011855 排气管隔热罩 HEAT SHIELD, EXHAUST MANIFOLD 1
9 B00001995 六角法兰面螺栓 HEXAGON BOLTS 3
10 S00016475 中冷器进气管 AIR INLET PIPE, INTERCOOLER 1
11 D12B-001-900 夹箍部件 CLAMP ASSY 1
12 B00001541 弹簧卡箍 SPRING CLAMP 2
13 B00001626 橡胶软管 HOSE 1
14 S00011329 热交换器垫片 HEAT EXCHANGER GASKET 1
15 S00016604 热交换器海水进水管 HEAT EXCHANGER RAW WATER INLET TUBE 1
16 B00004884 六角法兰面螺栓 HEXAGON BOLTS 2
17 B00001573 喉箍 CLAMP 2
18 B00002402 橡胶水管 HOSE 1
19 S00016063 水空中冷器组件 AIR-TO-WATER INTERCOOLER GROUP 1
20 B00000846 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 8
21 S00018816 双头螺栓 STUD 4
22 S00018815 双头螺栓 STUD 4
23 S00016482 中冷器垫片 GASKET, INTERCOOLER 2
24 B00001724 六角头螺塞 HEXAGON PIPE PLUG 1
25 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1
26 S00005856 六角法兰面螺栓 HEXAGON BOLTS 12
27 S00011037 进气管盖板 COVER, AIR INTAKE PIPE 1
