Description

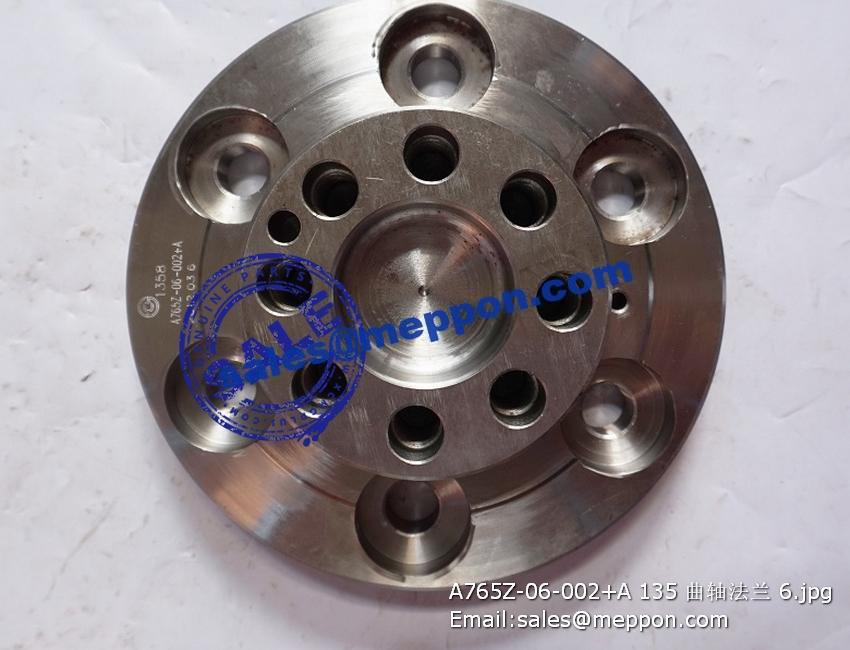

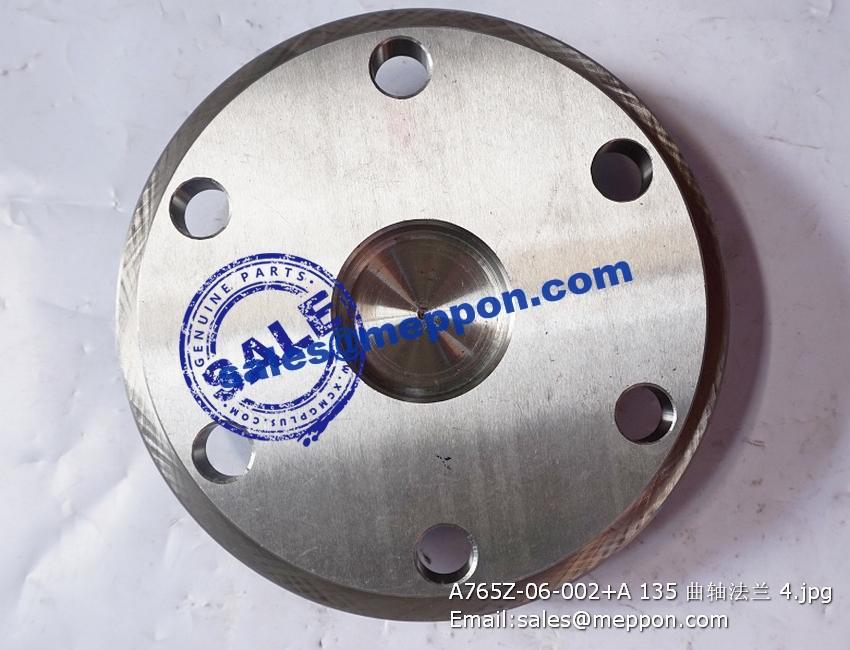

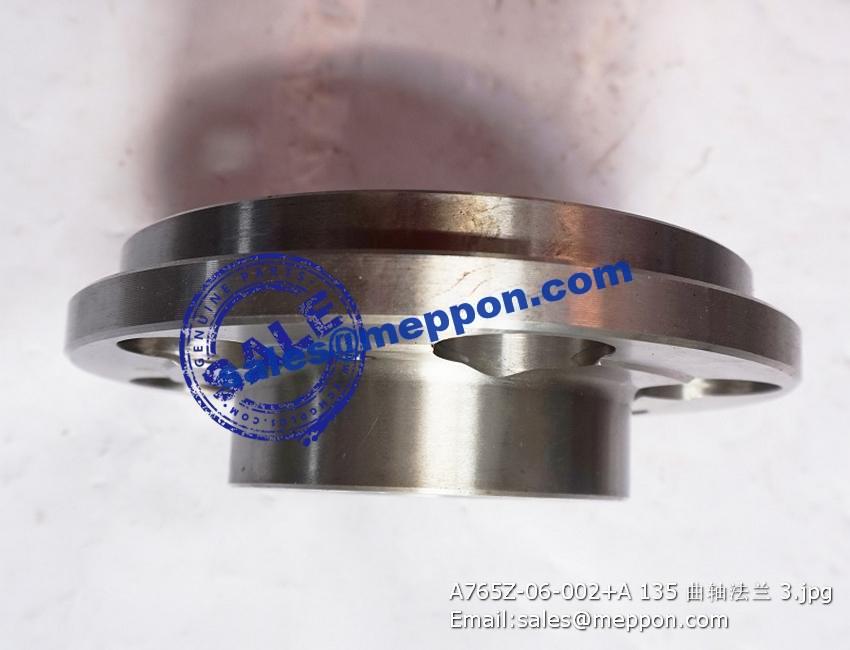

A765Z-06-002+A 135 CRANKSHAFT FLANGE PS08197
1 S00003492 分动箱壳体 HOUSING, PTO DEVICE 1
2 D02C-142-01A 端盖板垫片 GASKET, FRONT END COVER 1
3 D02C-121-30 前油封组件 PTO GEAR BOX COVER 1
4 前盖板维修组件 FRONT COVER SERVICE GROUP 1
D02C-124-30 前盖板 FRONT COVER 1
5 B00001999 六角法兰面螺栓 HEXAGON BOLTS 5 Q/SC622-M10*25
6 D02C-140-30 大盖板垫片 COVER BRACKET 1
7 D02C-114-30 过渡盘 FLYWHELL ADAPTOR PLATE 1
8 D02C-102-01 起动电机联接法兰 FLANCE,STARTER AND FLYWHEEL HOUSING 1
9 D02A-163-01 内六角螺塞(Z3/4) PLUG 1
10 D02C-153-02 O形橡胶密封圈 O-RING 1
11 D02A-161-30 闷头(φ20) PLUG 1
12 B00002058 六角法兰面螺栓 HEXAGON BOLTS 12 Q/SC622-M12*40-10.9
13 D02C-109-01 垫片 BRACKET 1
14 D02C-104-06 盖板 COVER 1
15 B00001547 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-14
16 D02A-166-01 螺塞(Z1/8) PLUG 5
17 B00001996 六角法兰面螺栓 HEXAGON BOLTS 1 Q/SC622-M10*20
18 D02C-143-01 指针 TIMEING POINTER 1
19 B00002134 六角法兰面螺栓 HEXAGON BOLTS 14 Q/SC622-M8*20
20 B00000846 六角法兰面螺母 HEXAGON NUT 1 GB/T6177-M8-Y
21 D02C-105-01 盖板垫片 GASKET,COVER 1
22 B00001549 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-18
23 B00002132 六角法兰面螺栓 HEXAGON BOLTS 2 Q/SC622-M8*16
24 B00001728 六角头螺塞 PLUG 1 Q/SC587.1-M18*1.5
25 D02C-125-34 后端盖 DEFAULT 1
26 B00001032 孔用弹性挡圈-A型 CIRCLIPS FOR BORES 1 GB/T893.1-110
27 B00002179 铰接螺栓 HINGE BOLT 1 Q/SC642.1-01-M14*1.5
28 D02C-125-39 后端盖 REAR COVER 1
29 D02A-161-01 闷头(φ20) PLUG A/R
30 D02C-145-01 回油接头 OIL RETURN CONNECTOR 1
31 B00000261 输出轴油封 ROLLING BEARING 1
32 D02C-004-01 分动箱回油管维修组件 OIL RETURN PIPE ASSY (WELDED)，PTO DEVICE SERVICE GROUP 1
D02C-004-01 分动箱回油管焊接部件 OIL RETURN PIPE ASSY (WELDED)，PTO DEVICE 1
33 B00000953 吊环螺钉 EYEBOLTS 1 GB/T825-M20-Y
34 D33-104-16 后支承 REAR SUPPORT 2
35 D02A-118-02B 曲轴后端油封 CRANKSHAFT SEAL, BACK 1
36 B00001856 铜垫圈 COPPER WASHER 8 Q/SC598-8*16
37 B00000631 六角头螺栓 HEXAGON HEAD BOLTS 7 GB/T5783-M8*20
38 B00002054 六角法兰面螺栓 HEXAGON BOLTS 12 Q/SC622-M12*35
39 B00001373 O形橡胶密封圈 DEFAULT 2 GB3452.1-128*3.55
40 B00001376 O形橡胶密封圈 O-RING 1 GB3452.1-145*5.3
41 B00002114 六角法兰面螺栓 HEXAGON BOLTS 8 Q/SC622-M6*16
42 后盖板维修组件 REAR COVER SERVICE GROUP 1
D02A-115-30 后盖板 REAR COVER 1
43 B00000919 内六角圆柱头螺钉 HEXAGON HEAD BOLTS 2 GB/T70-M8*80
44 D02C-139-01 惰轮轴螺栓 BOLT 4
45 B00002012 六角法兰面螺栓 HEXAGON BOLTS 6 Q/SC622-M10*45-ZN.D
46 主动齿轮装配部件 PTO DEVICE DRIVE GEAR ASSY （ASSEMBLED） 1
46.4 S00003683 主动齿轮 DRIVE GEAR 1
46.2 D04-133-01 闷头(φ58) PLUG 1
46.3 B00000103 圆柱销 PIN 1 GB/T119-A12*30
47 惰齿轮装配部件 PTO DEVICE IDLER GEAR ASSY (ASSEMBLED) 1
47.1 D02C-117-30A 惰齿轮 PTO DEVICE IDLER GEAR ASSY 1
47.2 S00003685 惰轮轴 PTO DEVICE IDLER SHAFT 1
47.3 D02C-130-01 锁紧垫片 GASKET 1
47.4 B00000509 六角头螺栓 HEXAGON HEAD BOLTS 2 GB/T5783-M10*30
47.5 D02C-154-01 双列圆锥滚子轴承 BEARING 1
47.6 D02C-155-01 挡圈 RETAINING RING 1
47.7 D02C-128-01 惰齿轮压板 SPACER 1
47.8 B00001050 孔用弹性挡圈-A型 CIRCLIPS FOR BORES 1 GB/T893.1-80
48 S00003684 分动箱工作泵传动齿轮 GEAR, WORKING PUMP-PTO DEVICE 1
49 D02C-125-32 后端盖盖板 TOP PLATE,REAR END COVER 1
50 B00002081 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M14*20
51 S00027599 飞轮与起动齿圈装配部件 FLYWHEEL AND RING GEAR ASSY 1
51.1 D06B-103-06 飞轮齿圈 FLYWHEEL RING GEAR 1
52 B00001281 平垫圈 PLAIN WASHERS 8 GB/T97.1-14-200HV-Y
53 B00000215 滚动轴承 ROLLING BEARING 1 GB/T276-6206-2RS
54 B00001045 孔用弹性挡圈-A型 CIRCLIPS FOR BORES 1 GB/T893.1-62
55 D06B-108-33 飞轮螺钉 BOLT, FLYWHEEL 8
56 起动机维修组件 STARTER SERVICE GROUP 1
S00012017 起动机 STARTER 1
57 B00001284 平垫圈 PLAIN WASHERS 3 GB/T97.1-16-200HV-Y
58 D02C-110-01 十二角头螺栓 BOLT 3
59 D02C-108-01 起动机垫片 GASKET,STARTER 1
60 D02C-142-30 后端盖垫片 BRACKET,REAR COVER 1
61 B00002001 六角法兰面螺栓 HEXAGON BOLTS 6 Q/SC622-M10*30
62 B00004830 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 GB/T16674.2-M14*1.5*30
