Description

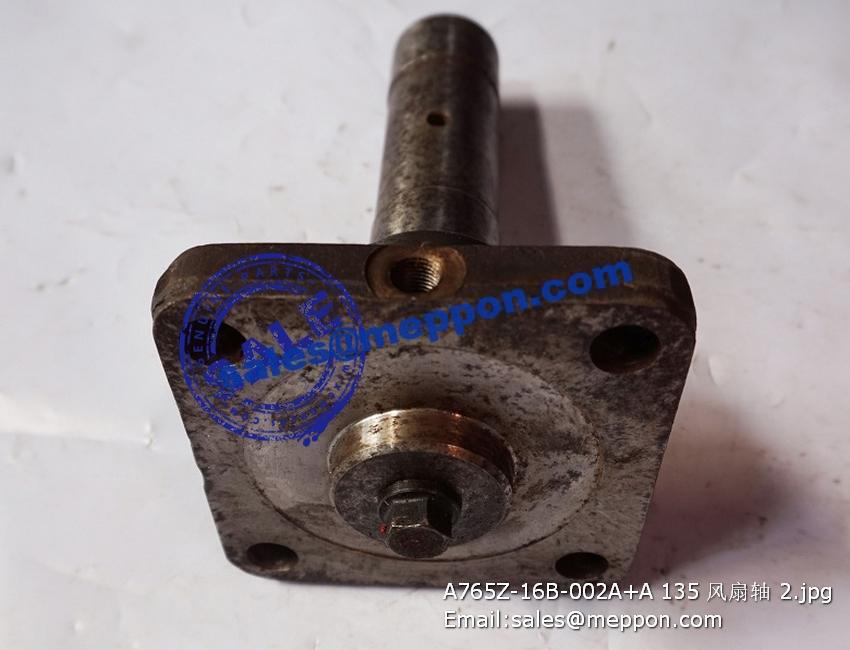

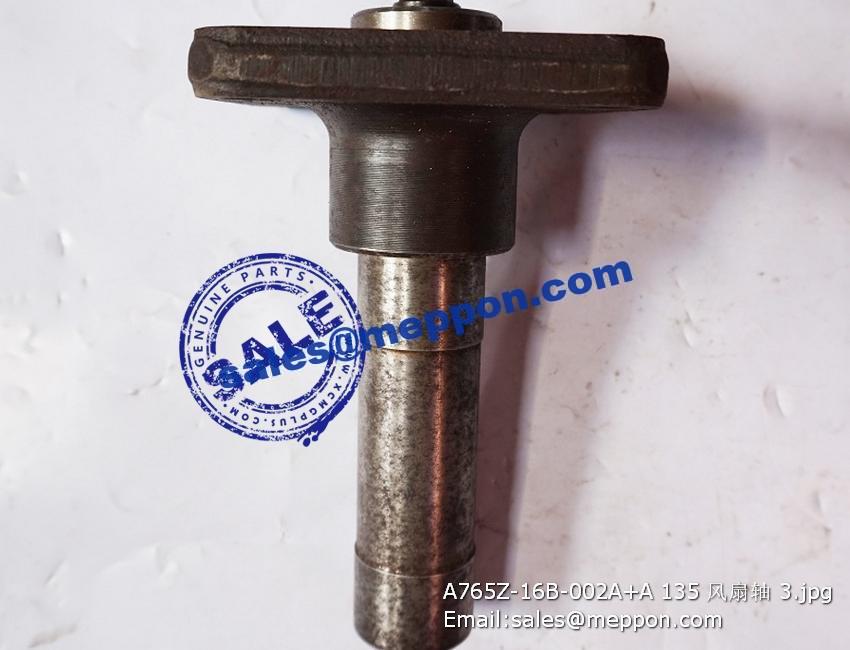

A765Z-16B-002A+A 135 FAN SHAFT PS08201

1 S00024081 消声器部件 MUFFLER ASSY 1
2 D00-187-02 垫块 SPACER 2
3 B00001998 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*20-ZN.D
4 B00002003 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 Q/SC622-M10*30-ZN.D
5 B00005094 加大毛垫圈 ENLARGED PLAIN WASHER 6 Q/SC597-10*26-HZN.D
6 B00000834 六角法兰面螺母 HEXAGON NUTS 6 GB/T6177-M10-Zn.D
7 空压机维修组件 AIR COMPRESSOR SERVICE GROUP 1
D47-000-23 空压机 AIR COMPRESSOR 1
7.1 B00001238 弹簧垫圈 SPRING WASHER 1 GB/T93-10-Zn.D
7.2 B00001276 平垫圈 PLAIN WASHER 1 GB/T97.1-10-200HV-ZN.D
7.3 B00000518 六角头螺栓 HEXAGON HEAD BOLT 1 GB/T5783-M10*40-ZN.D
8 D02B-106-01A PTO接口垫片 GASKET, PTO 1
9 B00001125 双头螺柱 STUD 2 GB/T899-GM12-M12*40-8.8-Y
10 B00000836 六角法兰面螺母 HEXAGON NUT 2 GB/T6177-M12-Y
11 D00-101-02B 空压泵支架 BRACKET, AIR COMPRESSOR 1
12 B00004351 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M10*25
13 D00-187-02 垫块 SPACER 2
14 B00002003 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*30-ZN.D
15 B00001998 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*20-ZN.D
16 S00024077 消声器支架 BRACKET, MUFFLER 1
17 B00001592 橡胶软管 HOSE 1 Q/SC1372-25*100
18 S00024827 夹箍 CLAMP 1
19 B00002133 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M8*16-ZN.D
20 S00025497 空气滤清器组件 AIR FILTER ASSY 1
20.1 KLG-14X-010 防雨帽 HOOD ASSY, AIR FILTER 1
20.2 S00022840 空滤器内滤芯部件 AIR FILTER ELEMENT (INNER) 1
20.3 S00022841 空滤器外滤芯部件 AIR FILTER ELEMENT (OUTER) 1
21 WG-08H-000 排气尾管部件 EXHAUST TAILPIPE ASSY 1
21.1 WG-08-001 卡箍 CLAMP 1
21.2 B00001279 平垫圈 PLAIN WASHER 1 GB/T97.1-12-200HV-ZN.D
21.3 B00001240 弹簧垫圈 SPRING WASHER 1 GB/T93-12-Zn.D
21.4 B00000773 I型六角螺母 HEXAGON NUTS 1 GB/T6170-M12-ZN.D
22 S00024085 空滤器支架焊接部件 AIR FILTER BRACKET ASSY (WELDED) 1
23 B00001567 喉箍 CLAMP 4 Q/SC1302-21~38
24 B00002006 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M10*35-ZN.D
25 S00024733 空压泵进气胶管 HOSE, AIR INLET-AIR COMPRESSOR 1
26 D00-105-50 空压泵进气口接头 JOINT, AIR INLET-AIR COMPRESSOR 1
27 S00025709 空压泵进气管 AIR INLET PIPE, AIR COMPRESSOR 1
32 B00001548 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 2 Q/SC1294-16
33 管接头维修组件 CONNECTOR SERVICE GROUP 2
D24B-106-60 管接头 CONNECTOR 2
34 弯管接头维修组件 ELBOW CONNECTOR SERVICE GROUP 1
D24B-104-55 弯管接头 ELBOW CONNECTOR 1
35 S00003174 矩形橡胶密封圈 RECTANGLE RUBBER SEALING RING 4
36 B00001545 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 4 Q/SC1294-10
37 B00002177 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M10*1
38 空压泵进油管维修组件 OIL INLET PIPE, AIR COMPRESSOR SERVICE GROUP 1
D00-106-11 空压泵进油管 OIL INLET PIPE, AIR COMPRESSOR 1
39 空压机进水管维修组件 WATER INLET PIPE, AIR COMPRESSOR SERVICE GROUP 1
D24B-001-81 空压机进水管部件 WATER INLET PIPE, AIR COMPRESSOR 1
40 空压机出水管维修组件 AIR COMPRESSOR WATER OUTLET TUBE SERVICE GROUP 1
D24B-002-81 空压机出水管部件 AIR COMPRESSOR WATER OUTLET TUBE 1
41 弯管接头维修组件 ELBOW CONNECTOR SERVICE GROUP 1
D24B-104-53 弯管接头 ELBOW CONNECTOR 1
