Description

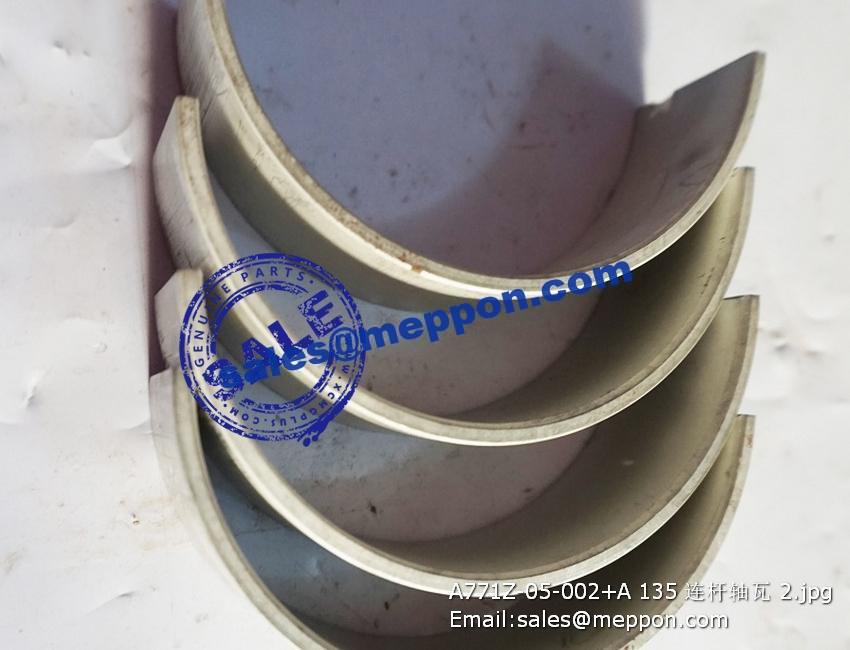

A771Z-05-002+A 135 BEARING CONNECTING ROD PS08260

1 机体维修组件 CYLINDER BLOCK SERVICE GROUP 1
2 D04-167-01A 闷头 PLUG 9
3 D02A-161-01 闷头 PLUG 1
4 D02A-113-01B 凸轮轴轴承 BUSHING, CAMSHAFT 7
5 D02A-161-31 闷头 PLUG 2
8 D04-166-01A 闷头 PLUG 2
9 S00017139 机体机加工部件 CYLINDER BLOCK ASSY SERVICE GROUP 1
10 S00014703 主轴承盖螺栓 BOLT, MAIN BEARING CAP 14
11 D02A-322-40 定位套筒 RETAINER SLEEVE 2
12 凸轮轴闷头维修组件 CAMSHAFT PLUG SERVICE GROUP 1
D02A-162-40 凸轮轴闷头 CAMSHAFT PLUG 1
13 D02A-324-40 O型圈 O-RING 1
14 油尺管维修组件 TUBE, OIL DIPSTICK SERVICE GROUP 1
D02A-142-05 油尺管 TUBE, OIL DIPSTICK 1
15 B00001546 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 2 Q/SC1294-12
16 D02A-170-01 螺塞 PLUG 2
17 D28-107-01 O型圈 O-RING 1
18 主轴瓦维修组件 MAIN BEARING, LOWER SERVICE GROUP 6
D02A-110-01A 主轴承上瓦 MAIN BEARING, UPPER 1
D02A-112-01 主轴承下瓦 MAIN BEARING, LOWER 1
19 曲轴推力轴承维修组件 MAIN BEARING, UPPER SERVICE GROUP 1
D02A-111-03 曲轴推力轴承(上) THRUST BEARING (UPPER), CRANKSHAFT 1
D02A-323-01C 曲轴推力轴承下瓦 THRUST BEARING (LOWER), CRANKSHAFT 1
20 D02A-310-01 闷头 PLUG 1
22 D02A-309-01 圆柱闷头 PLUG 1
23 B00004647 内六角锥形螺塞 HEXAGON COUNTERSUNK CONE PLUG SCREW 1 Q61902
