Description

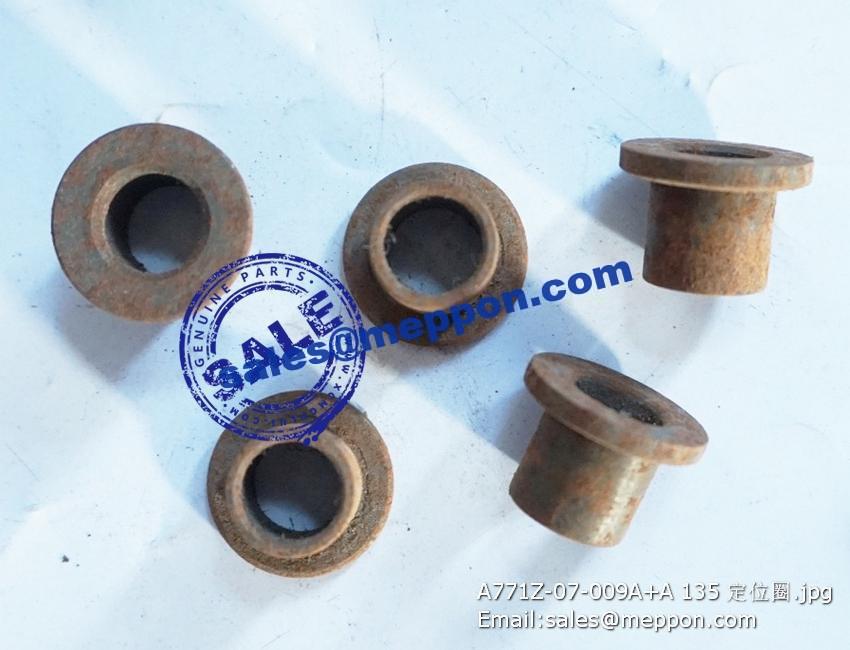

A771Z-07-009A+A 135 ring PS08269

1 排气管维修组件 EXHAUST MANIFOLD SERVICE GROUP 1
S00013227 排气管 EXHAUST MANIFOLD 1
2 D02A-166-01 螺塞(Z1/8) PLUG 2
3 D04-144-30 排气管垫片 GASKET, EXHAUST MANIFOLD 6
4 D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 12
5 S00018375 进气温度压力传感器 SENSOR, AIR INTAKE TEMPERATURE AND PRESSURE 1
6 进气管维修组件 AIR INTAKE PIPE SERVICE GROUP 1
S00022916 进气管 AIR INTAKE PIPE 1
7 D04-131-30 进气管垫片 GASKET, AIR INTAKE PIPE 6
8 D04-307-01A 进气管螺栓 BOLT, AIR INTAKE PIPE 6
9 B00002016 六角法兰面螺栓 HEXAGON BOLTS 6 Q/SC622-M10*55
10 D00-187-02 垫块 SPACER 2
11 B00002004 六角法兰面螺栓 HEXAGON BOLTS 2 Q/SC622-M10*35
12 电阻加热器维修组件 INTAKE AIR HEATER SERVICE GROUP 1
LQ02-015 电阻加热器部件 INTAKE AIR HEATER ASSY 1
13 B00000583 六角头螺栓 HEXAGON HEAD BOLT 1 GB/T5783-M4*16
14 D00-154-07 隔热板 HEAT SHIELD 1
16 D12-103-800 进气口垫片 GASKET, AIR INTAKE PIPE 1
17 D12-103-801 进气预热垫片 NTAKE AIR HEATER GASKET 2
18 进气接管(上)维修组件 ADAPTER, AIR INTAKE PIPE （TOP）SERVICE GROUP 1
D12-310-16 进气接管(上) ADAPTER, AIR INTAKE PIPE （TOP） 1
19 B00002136 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M8*20-ZN.D
20 B00002160 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M8*65-ZN.D
21 B00000847 六角法兰面螺母 HEXAGON NUTS 4 GB/T6177-M8-ZN.D
22 进气接管(下)维修组件 ADAPTER, AIR INTAKE PIPE （DOWN）SERVICE GROUP 1
S00024722 进气接管(下) ADAPTER, AIR INTAKE PIPE （DOWN） 1
