Description

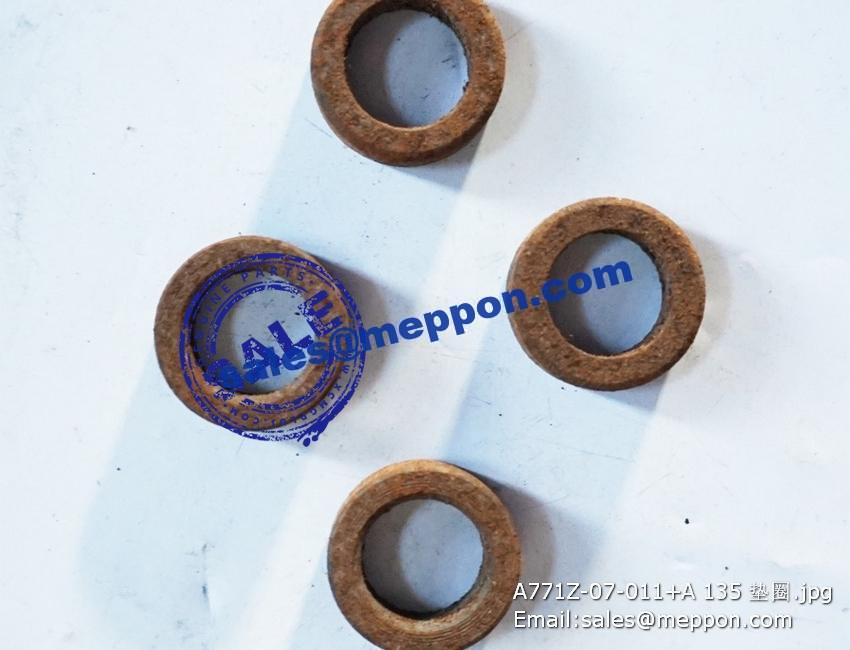

A771Z-07-011+A 135 washer PS08270

1 B00002178 铰接螺栓 HINGE BOLT 1 Q/SC642.1-01-M12*1.25
2 B00002193 垫圈 WASHER 2 Q/SC642.1-03-12
3 D19-110-01C 增压器进油管 OIL INLET PIPE,TURBOCHARGER 1
4 D19-118-01 接头 JOINT 1
5 D19-113-02 垫片 GASKET 1
7 B00001999 六角头螺栓 HEXAGON HEAD BOLTS-FULL THREAD 2 Q/SC622-M10*25
8 S00003138 增压器回油管焊接部件 OIL RETURN PIPE ASSY (WELDED), TURBOCHARGER 1
9 D02A-171-80 O型橡胶密封圈 O-RING 2
10 S00024691 增压器部件 TURBOCHARGER ASSY 1
11 D13-102-30B 涡轮进口垫片 GASKET,INLET-TURBINE 1
12 D13-103-01 双头螺栓 STUD 4
13 D13-304-01 增压器接口螺母 NUT, FLANGE-TURBOCHARGER 4
14 D13-113-01 涡轮出口盖板垫片 GASKET,OUTLET-TURBINE COVER 1
15 D13-114-04A 涡轮出口盖板 COVER,OUTLET-TURBINE 1
16 D13-303-01 双头螺栓 STUD 6
17 D13-108-50 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 6
18 D00-121-01 密封环 SEAL RING 2
19 D00-118-25A 排气弯管 EXHAUST ELBOW 1
20 D00-220-03 垫片 GASKET 1
21 B00002000 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 7 Q/SC622-M10*25-ZN.D
22 S00024058 排气接管支架 EXHAUST PIPE ADAPTER BRACKET 1
23 B00002003 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M10*30-ZN.D
24 B00000834 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 1 GB/T6177-M10-Zn.D
25 D00-206-15 橡胶连接管 HOSE 1
26 B00001533 弹簧卡箍 SPRING CLAMP 1 Q/SC1092-135
27 B00001531 弹簧卡箍 SPRING CLAMP 1 Q/SC1092-100
