Description

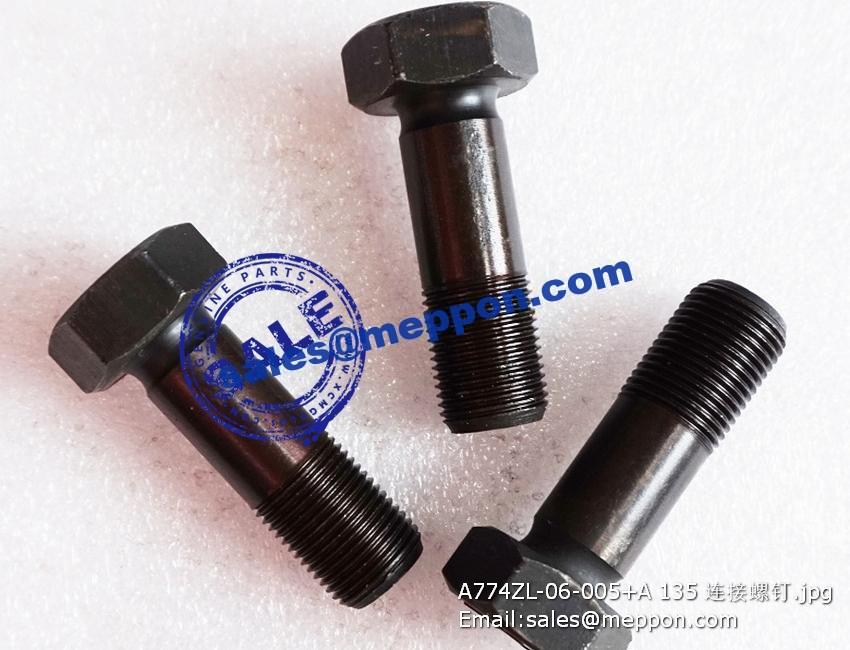

A774ZL-06-005+A 135 bolt PS08339

1 D16A-106-30 风扇胶带 BELT, FAN 1
2 D16A-107-15 风扇胶带轮 PULLEY, FAN 1
3 D16A-136-02 输出带轮 PULLEY, FRONT END 1
4 B00002031 六角法兰面螺栓 HEXAGON BOLTS 1 Q/SC622-M10*80-10.9
5 D16A-003-03 张紧轮部件 TENSIONER ASSY 1
6 D16A-010-30A 风扇轴承座压装部件 BASE ASSY (PRESSED), FAN BEARING 1
7 B00002001 六角法兰面螺栓 HEXAGON BOLTS 1 Q/SC622-M10*30
8 B00000631 六角头螺栓 HEXAGON BOLTS 2 GB/T5783-M8*20
9 B00002147 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M8*45
10 D16A-121-38B 张紧轮固定板 MOUNTING PLATE,TENSIONER 1
11 D11-105-30A 撑条 LINK 1
12 D11-104-01 隔套 SPACER 2
13 B00001990 六角法兰面螺栓 HEXAGON BOLTS 1 Q/SC622-M10*100-10.9
14 D11-103-30C 发电机支架 ALTERNATOR BRACKET 1
15 D11-102-09 整体式交流发电机 ALTERNATOR 1
16 D06A-109-30 减振器螺栓 CRANKSHAFT DAMPER BOLT 4
17 D06A-002-34B 扭振减振器 CRANKSHAFT DAMPER 1
18 D00-108-24 曲轴前端带轮 PULLEY, CRANKSHAFT 1
27 D16A-128-01 风扇垫块 SPACER, FAN 1
28 B00002065 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M12*50-ZN.D
35 S00023380 右前支承 RIGHT FRONT ENGINE SUPPORT ASSY 1
36 S00021068 风扇组件(吸风式) FAN GROUP, INFLOW TYPE 1
37 D16A-111-01A 压板 CLAMP 2
38 D33-102-16 左前支承 LEFT FRONT ENGINE SUPPORT ASSY 1
39 B00002047 六角法兰面螺栓 HEXAGON BOLTS 8 Q/SC622-M12*25
40 B00005511 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 GB/T16674.1-M10*30-DAC
