Description

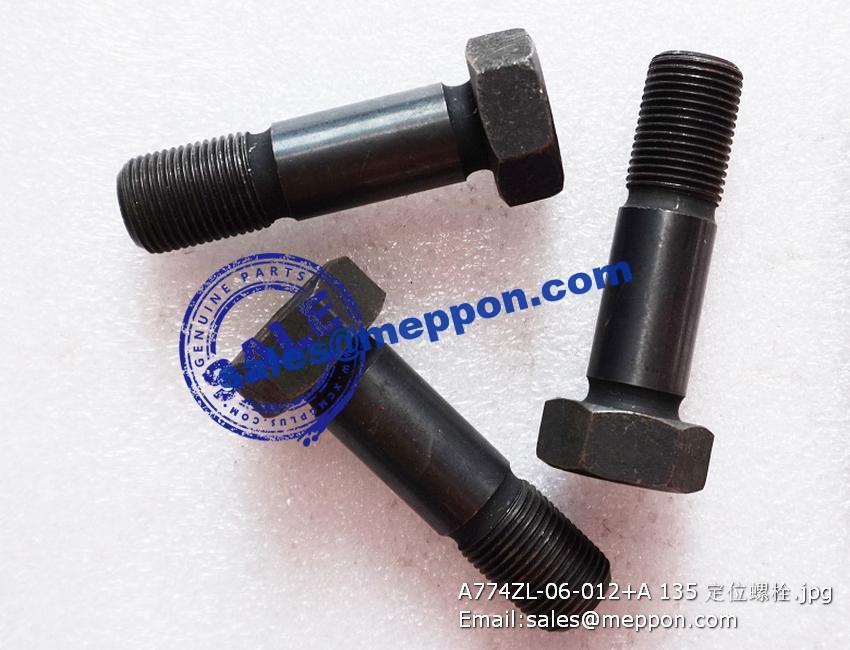

A774ZL-06-012+A 135 bolt PS08345
1 XSB-08M-000 消声器部件 MUFFLER ASSY 1
2 S00000926 消声器支架双头螺柱 MUFFLER BRACKET STUD 1
3 B00005507 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M10*20-DAC
4 B00005558 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 GB/T16674.1-M8*20-DAC
5 S00000925 消声器支架焊接部件 BRACKET ASSY (WELDED), MUFFLER 1
6 B00001287 平垫圈 PLAIN WASHER 1 GB/T97.1-20-200HV-ZN.D
7 空压机维修组件 AIR COMPRESSOR SERVICE GROUP 1
D47-000-24 空压机 AIR COMPRESSOR 1
8 D02B-106-01A PTO接口垫片 GASKET, PTO 1
9 B00001123 双头螺柱 STUD 2 GB/T899-GM12-M12*30-8.8-Y
10 B00000836 六角法兰面螺母 HEXAGON NUT 2 GB/T6177-M12-Y
11 D00-101-04 空压泵支架 BRACKET, AIR COMPRESSOR 1
12 B00001996 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*20
14 D52-000-07 转向泵组件 STEERING PUMP ASSY 1
15 D02B-115-03 转向泵垫片 GASKET, STEERING PUMP 1
16 B00001246 弹簧垫圈 SPRING WASHER 1 GB/T93-20
17 S00018119 空压泵进气胶管 HOSE, AIR INLET-AIR COMPRESSOR 1
20 S00023876 空气滤清器组件 AIR FILTER ASSY 1
20.1 C14AL-KBZ-2A 指示器 SERVICE INDICATOR, AIR FILTER 1
20.2 S00022840 空滤器内滤芯部件 AIR FILTER ELEMENT (INNER) 1
20.3 S00022841 空滤器外滤芯部件 AIR FILTER ELEMENT (OUTER) 1
20.4 S00022927 空滤器精滤器部件 FINE AIR FILTER ASSY 1
20.5 KLG-14V-010 空滤器防雨帽部件 HOOD ASSY, AIR FILTER 1
21 WG-08C-000 排气尾管部件 EXHAUST TAILPIPE ASSY 1
21.1 WG-08-001 卡箍 CLAMP 1
21.2 B00001279 平垫圈 PLAIN WASHER 1 GB/T97.1-12-200HV-ZN.D
21.3 B00001240 弹簧垫圈 SPRING WASHER 1 GB/T93-12-Zn.D
21.4 B00000773 I型六角螺母 HEXAGON NUTS 1 GB/T6170-M12-ZN.D
22 S00024282 空滤器支架焊接部件 AIR FILTER BRACKET ASSY (WELDED) 1
23 B00001567 喉箍 CLAMP 4 Q/SC1302-21~38
24 B00005556 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 GB/T16674.1-M8*16-DAC
25 B00002337 橡胶水管 RUBBER HOSE, WATER 1
26 D00-105-50 空压泵进气口接头 JOINT, AIR INLET-AIR COMPRESSOR 1
27 S00025508 空压泵进气管 AIR INLET PIPE, AIR COMPRESSOR 1
28 B00000781 I型六角螺母 HEXAGON NUTS 1 GB/T6170-M20-ZN.D
29 B00001276 平垫圈 PLAIN WASHER 4 GB/T97.1-10-200HV-ZN.D
30 B00000667 六角头螺栓 HEXAGON HEAD BOLTS 4 GB/T5786-M10*1*30-ZN.D
31 B00002053 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M12*30-ZN.D
32 B00001548 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 2 Q/SC1294-16
33 管接头维修组件 CONNECTOR SERVICE GROUP 2
D24B-106-60 管接头 CONNECTOR 2
34 弯管接头维修组件 ELBOW CONNECTOR SERVICE GROUP 1
D24B-104-55 弯管接头 ELBOW CONNECTOR 1
35 S00003174 矩形橡胶密封圈 RECTANGLE RUBBER SEALING RING 4
36 B00001545 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 4 Q/SC1294-10
37 B00002177 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M10*1
38 空压泵进油管维修组件 OIL INLET PIPE, AIR COMPRESSOR SERVICE GROUP 1
D00-106-11 空压泵进油管 OIL INLET PIPE, AIR COMPRESSOR 1
39 空压机进水管维修组件 WATER INLET PIPE, AIR COMPRESSOR SERVICE GROUP 1
D24B-001-71 空压机进水管部件 WATER INLET PIPE, AIR COMPRESSOR 1
40 空压机出水管维修组件 AIR COMPRESSOR WATER OUTLET TUBE SERVICE GROUP 1
D24B-002-71 空压机出水管部件 AIR COMPRESSOR WATER OUTLET TUBE 1
41 弯管接头维修组件 ELBOW CONNECTOR SERVICE GROUP 1
D24B-104-53 弯管接头 ELBOW CONNECTOR 1
