Description

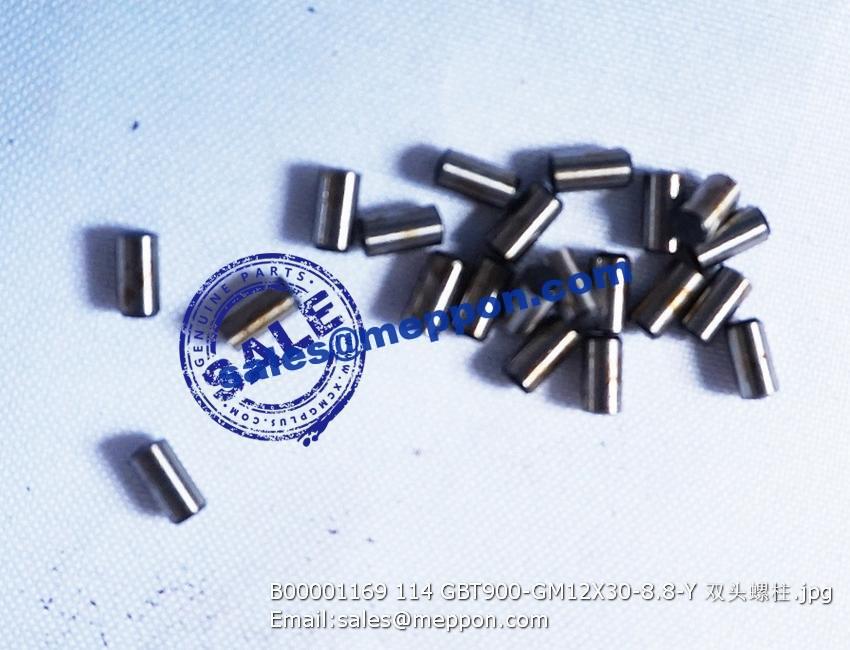

B00001169 114 GBT900-GM12X30-8.8-Y pin PS08566

1 D04-144-30 排气管垫片 GASKET, EXHAUST MANIFOLD 6
2 S00013227 排气管 EXHAUST MANIFOLD 1
3 D04-145-30A 排气管螺栓 BOLT EXHAUST MANIFOLD 12
4 D02A-166-01 螺塞(Z1/8) SCREW PLUG(Z1/8) 2
5 B00000847 六角法兰面螺母 HEXAGON NUTS 4 GB/T6177-M8-ZN.D
6 S00024218 进气接管(上) ADAPTER, AIR INTAKE PIPE （TOP） 1
7 D12-103-801 进气预热垫片 INTAKE AIR HEATER GASKET 2
8 LQ02-015 电阻加热器部件 INTAKE AIR HEATER ASSY 1
9 B00000583 六角头螺栓 HEXAGON HEAD BOLTS-FULL THREAD 1 GB/T5783-M4*16
10 S00018375 进气温度压力传感器 SENSOR, AIR INTAKE TEMPERATURE AND PRESSURE 1
11 D00-187-02 垫块 SPACER 2
12 B00002004 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 Q/SC622-M10*35
13 D12-103-800 进气口垫片 GASKET, AIR INTAKE PIPE 1
14 S00024722 进气接管(下) ADAPTER, AIR INTAKE PIPE （DOWN） 1
15 B00002136 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M8*20-ZN.D
16 B00002160 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M8*65-ZN.D
17 D04-307-01A 进气管螺栓 BOLT, AIR INTAKE PIPE 6
18 B00002016 六角法兰面螺栓 HEXAGON BOLTS 6 Q/SC622-M10*55
19 S00022916 进气管 AIR INTAKE PIPE 1
20 D04-131-30 进气管垫片 GASKET, AIR INTAKE PIPE 6
21 D00-154-07 隔热板 HEATER SHIELD 1
22 排气管维修组件 EXHAUST MANIFOLD SERVICE GROUP
23 进气管维修组件 AIR INTAKE PIPE SERVICE GROUP
24 进气接管(下）维修组件 ADAPTER, AIR INTAKE PIPE （DOWN）SERVICE GROUP
25 电阻加热器维修组件 INTAKE AIR HEATER ASSY SERVICE GROUP
26 进气接管(上）维修组件 ADAPTER, AIR INTAKE PIPE （UPPER) SERVICE GROUP
27 B00001543 弹簧卡箍 SPRING CLAMP 4 Q/SC1092-90
28 D12B-106-01 橡胶连接管 RUBBER CONNECTING PIPE 1
29 S00025450 中冷器出气管 AIR OUTLET PIPE, INTERCOOLER 1
30 S00017181 进气管橡胶连接管 AIR INTAKE HOSE 1
31 S00026671 电源线束 HARNESS, BATTERY 1
32 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M8*16
