Description

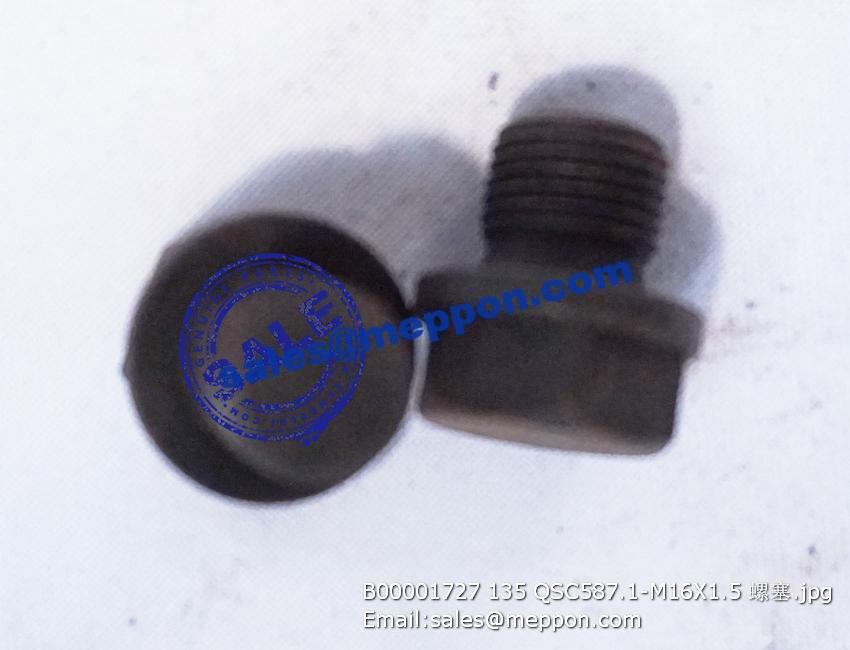

B00001727 135 QSC587.1-M16X1.5 PLUG 4110000036080 PS08706 4110000997067

1 D18-101-30A 进油口垫片 GASKET, FUEL INLET 1
2 机油冷却器芯子维修组件 CORE ASSY, OIL COOLER SERVICE GROUP 1
D18-002-40 机油冷却器装配部件 OIL COOLER ASSY 1
3 机油冷却器维修组件 OIL COOLER COVER SERVICE GROUP 1
D18-000-160 机油冷却器组件 OIL COOLER GROUP 1
4 D18-102-30A 出油口垫片 GASKET, OIL OUTLET-OIL COOLER 1
5 D17-105-02 滤芯接头 JOINT, OIL FILTER ELEMENT 1
6 B00000846 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 4 GB/T6177-M8-Y
7 D17-002-02 机油滤清器 OIL FILTER 1
8 D02A-306-01A 六角法兰面螺栓 HEXAGON BOLTS 6
9 D02A-133-30A 机油冷却器垫片 GASKET, OIL COOLER 1
10 机油滤清器座维修组件 BASE ASSY, OIL FILTER SERVICE GROUP 1
D17-030-42 机油滤清器座部件 BASE ASSY, OIL FILTER 1
11 D02A-311-01 六角法兰面螺栓 HEXAGON BOLTS 2
12 B00002153 六角法兰面螺栓 HEXAGON BOLTS 4 Q/SC622-M8*55
13 D17-001-04 旁通阀装配部件 BYPASS VALVE ASSY 2
14 压力调节阀维修组件 PRESSURE REGULATING VALVE SERVICE GROUP 1
D17-102-30A 压力调节阀体 BODY, PRESSURE REGULATING VALVE 1
15 D17-103-01 压力调节阀弹簧 SPRING, PRESSURE REGULATING VALVE 1
16 B00001552 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-24
17 D17-110-01 螺塞 PLUG 1
18 D17-108-01 O型圈 O-RING 1
