Description

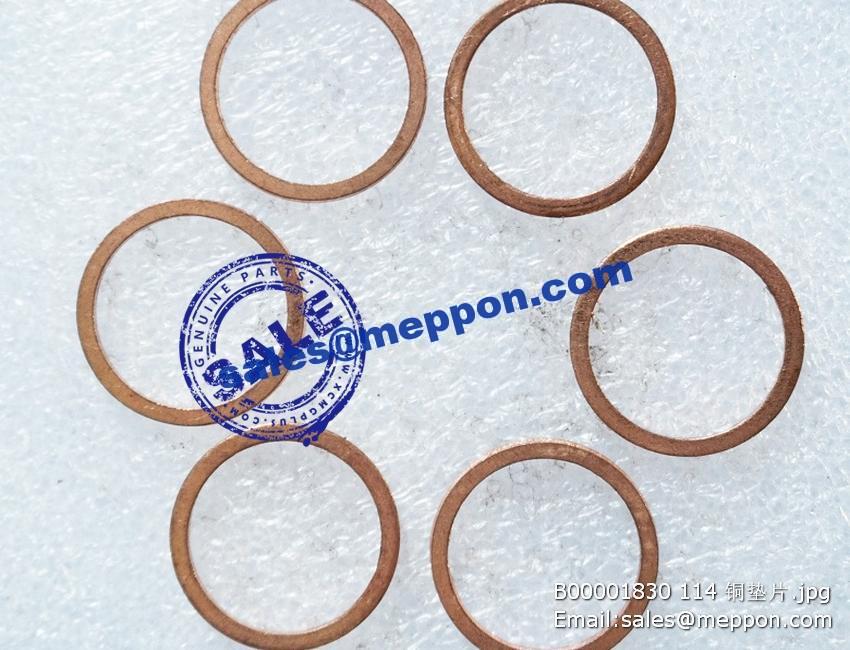

B00001830 114 PS08751 washer

1 D00-105-20 空压泵进气口接头 JOINT, AIR INLET-AIR COMPRESSOR 1
2 B00002347 橡胶水管 RUBBER HOSE, WATER 1 Q/SC646-25*1500
4 B00001123 双头螺柱 STUD 2 GB/T899-GM12-M12*30-8.8-Y
5 空压机维修组件 AIR COMPRESSOR SERVICE GROUP 1
D47-000-27 空压机组件 AIR COMPRESSOR GROUP 1
5.1 B00000518 六角头螺栓 HEXAGON HEAD BOLT 1 GB/T5783-M10*40-ZN.D
5.2 B00001276 平垫圈 PLAIN WASHER 1 GB/T97.1-10-200HV-ZN.D
5.3 B00001238 弹簧垫圈 SPRINIG WASHER 1 GB/T93-10-Zn.D
6 D02B-106-40 PTO接口垫片 GASKET, PTO 1
7 空压机进油管维修组件 OIL INLET PIPE, AIR COMPRESSOR SERVICE GROUP 1
D00-106-11 空压机进油管 OIL INLET PIPE, AIR COMPRESSOR 1
8 B00001545 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 4 Q/SC1294-10
9 B00002177 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M10*1
10 管接头维修组件 CONNECTOR SERVICE GROUP 2
D24B-106-60 管接头 PIPE JOINT 1
11 B00001548 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 2 Q/SC1294-16
12 S00003174 矩形橡胶密封圈 RECTANGLE RUBBER SEALING RING 4
13 空压机出水管维修组件 AIR COMPRESSOR WATER OUTLET TUBE SERVICE GROUP 1
D24B-002-80 空压机出水管部件 AIR COMPRESSOR WATER OUTLET TUBE ASSY 1
14 弯管接头维修组件 ELBOW CONNECTOR SERVICE GROUP 1
D24B-104-53 弯管接头 JOINT ELBOW 1
15 空压泵进水管维修组件 WATER INLET PIPE, AIR COMPRESSOR SERVICE GROUP 1
D24B-001-80 空压泵进水管 AIR COMPRESSOR WATER INLET TUBE 1
16 弯管接头维修组件 ELBOW CONNECTOR SERVICE GROUP 1
D24B-104-55 弯管接头 JOINT ELBOW 1
17 B00000836 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 2 GB/T6177-M12-Y
18 D00-101-40A 空压泵支架 BRACKET, AIR COMPRESSOR 1
19 B00004351 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 GB/T16674.1-M10*25
