Description

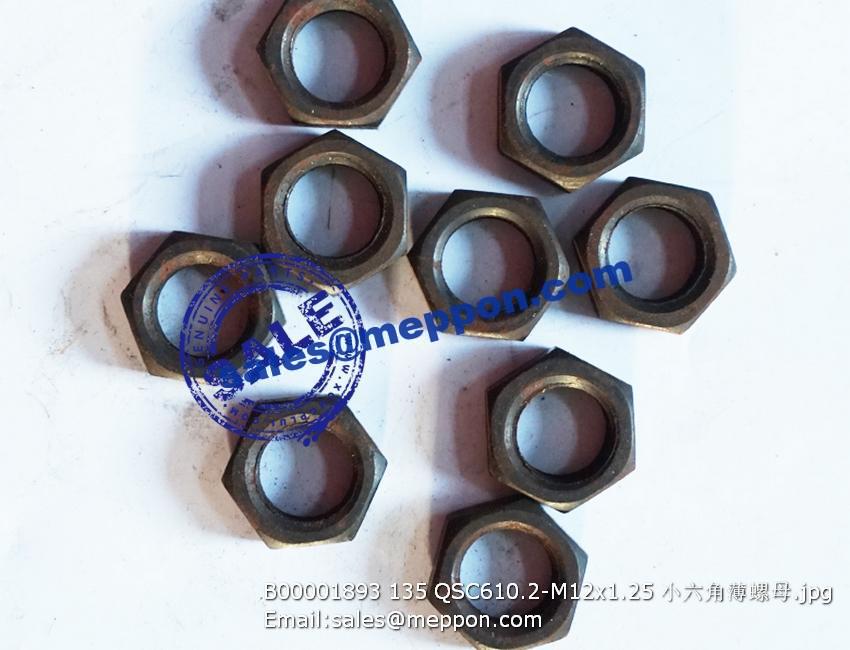

B00001893 135 QSC610.2-M12x1.25 NUT PS08779

1 S00013514 凸轮轴 CAMSHAFT 1
2 D06A-110-01 圆柱销 PARALLEL PIN 1
3 B00000632 六角头螺栓 HEXAGON HEAD BOLT 2 GB/T5783-M8*20-10.9
4 D02A-114-01C 凸轮轴推力板 THRUST PLATE, CAMSHAFT 1
5 D02A-030-03 活塞冷却喷嘴部件 ORIFICE ASSY, PISTON COOLING JET 6
6 D02A-104-41 气缸套 CYLINDER LINER 6
7 D02A-171-30A 缸套封水圈 SEAL, CYLINDER LINER 18
8 B00002045 六角法兰面螺栓 HEXAGOB BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M12*20
9 S00004614 加油盖 COVER, OIL FILLER 1
10 D02A-328-01 加油盖密封圈 SEAL RING, OIL FILLER 1
11 S00018250 加油管 PIPE, OIL FILLER 1
12 B00000301 O形橡胶密封圈 O-RING 2 GB/T3452.1-26.5*2.65
13 D02A-313-801 内六角螺塞 HEX SOCKET PIPE PLUG 1
14 S00018001 油尺部件 OIL DIPSTICK 1
15 D02A-168-01 六角头螺塞 HEXAGONAL SOCKET HEAD PLUG 1
16 B00001378 O形橡胶密封圈 O-RING 1 GB3452.1-16*2.65
17 B00001996 六角法兰面螺栓 HEXAGON BOLTS 2 Q/SC622-M10*20
18 D02A-013-36 油泵固定支架焊接部件 BRACKET ASSY (WELDED), FUEL INJECTION PUMP 1
19 B00001724 六角头螺塞 HEXAGONAL SOCKET HEAD PLUG 2 Q/SC587.1-M10*1
20 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-10
21 D02A-166-01 螺塞(Z1/8) PLUG 2
