Description

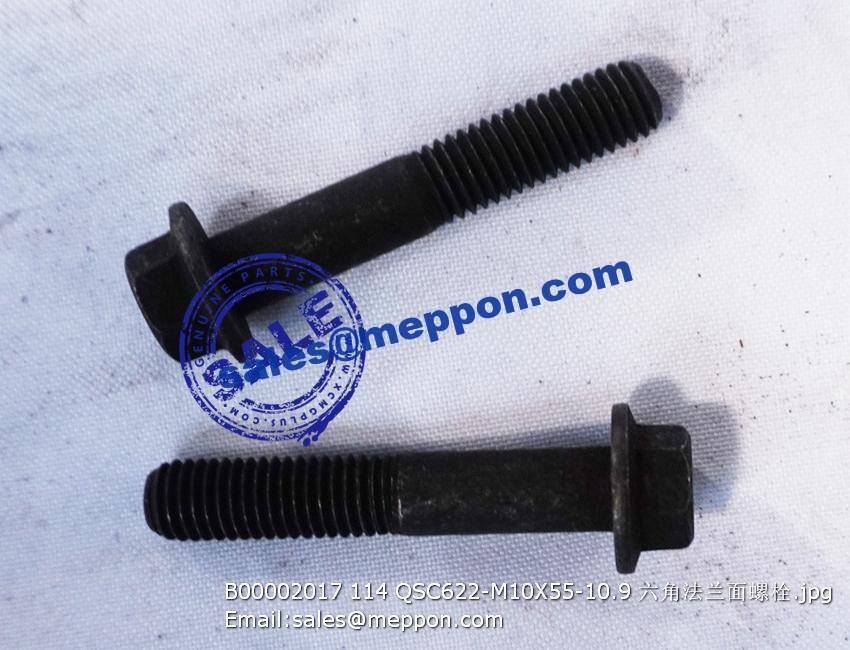

B00002017 114 QSC622-M10X55-10.9 bolt PS14534

1 D04-127-30C 挺柱 TAPPET 12
2 D04-128-30A 推杆 PUSH ROD 12
3 D04-007-32 摇臂总成 ROCKER ARM ASSY 6
4 B00001062 轴用弹性挡圈 A型 CIRCLIPS FOR SHAFT TYPE A 2 GB/T894.1-22
5 D04-124-01 摇臂推力板 THRUST PLATE，ROCKER ARM 2
6 D04-129-01 波形弹性垫片 WAVE SPRING WASHER 2
7 D04-122-32 摇臂 ROCKER ARM 2
8 D04-123-30A 摇臂调节螺钉 ADJUSTING SCREW, ROCKER ARM 2
9 D04-162-01A 小六角螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 2
10 D04-120-30 遥臂轴紧固螺栓 BLOT,ROCKER ARM SHAFT 6
11 B00002148 六角法兰面螺栓 HEXAGON BOLTS 12 Q/SC622-M8*45-10.9
12 D04-134-33 气缸盖罩壳 VALVE COVER 1
13 D04-135-32 气缸盖罩壳垫片 GASKET, VALVE COVER 1
14 D04-138-01A 加油盖 COVER, OIL FILLER 1
15 D04-139-02 加油盖密封垫片 GASKET, OIL FILLER COVER 1
16 D04-136-30B 缸盖罩壳螺栓 BOLT, VALVE COVER 6
17 D04-301-01 罩壳螺栓密封圈垫圈 SEAL RING GASKET, BOLT-VALVE COVER 6
18 D04-300-01A 罩壳螺栓密封圈 SEAL RING, BOLT-VALVE COVER 6
19 D04-352-01 铰接螺栓 BANJO BOLT 1
20 B00001553 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-27
21 B00005556 六角法兰面螺栓 HEXAGON BOLTS 1 GB/T16674.1-M8*16-DAC
22 D04-313-01 夹箍 CLAMP 1
23 S00001204 通气管 TUBE ASSY, FUMES DISPOSAL 1
24 B00001565 喉箍 CLAMP 2 Q/SC1302-18~32
25 S00004033 油气分离器橡胶弯管 OIL SEPARATOR RUBBER ELBOW 1
