Description

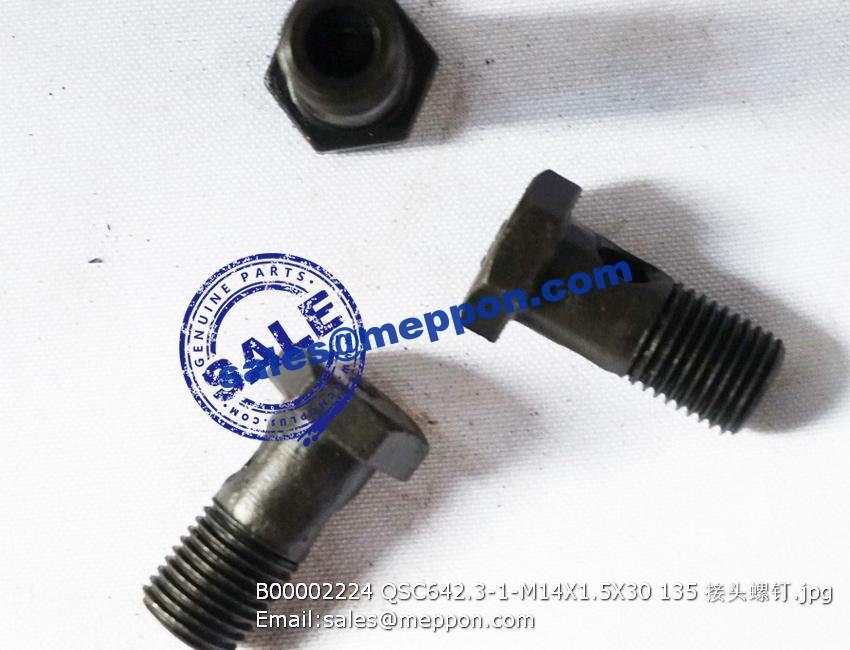

B00002224 QSC642.3-1-M14X1.5X30 135 bolt PS08912

1 B00001727 六角头螺塞 HEXAGONAL HEAD SCREW PLUG 1 Q/SC587.1-M16*1.5
2 D03-110-01 复合式密封硬垫圈 COMPOSITED HARD SEAL WASHER 1
3 B00001728 六角头螺塞 HEXAGONAL HEAD SCREW PLUG 1 Q/SC587.1-M18*1.5
4 D03-110-02 复合式密封硬垫圈 COMPOSITED HARD SEAL WASHER 1
5 D03-001-30B 油底壳焊接部件 OIL PAN ASSY(WELDED) 1
6 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 32 Q/SC622-M8*16
7 B00002111 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 Q/SC622-M6*12
8 D19-105-30 吸油管支架 BRACKET,OIL INLET PIPE 1
9 B00000843 六角法兰面螺母 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 GB/T6177-M6-Y
10 B00002116 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M6*16-10.9/A1
11 D19-001-42 吸油管焊接部件 OIL SUCTION PIPE ASSY (WELDED), OIL SUCTION PUMP 1
12 B00003351 内六角圆柱头螺钉 HEXAGON SOCKET HEAD CAP SCREWS 2 GB/T70.1-M6*20
13 D19-114-01A 吸油管法兰垫片 GASKET,PIPE FLANGE-OIL SUCTION PUMP 1
14 B00002143 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 4 Q/SC622-M8*35-10.9
15 D15-000-41 机油泵组件 OIL PUMP ASSY 1
16 B00005551 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 GB/T16674.1-M6*20-DAC
17 D42-001-30A 油分离器部件 CRANKCASE VENT FILTER ASSY 1
18 B00001567 喉箍 CLAMP 2 Q/SC1302-21~38
19 D42-500-01 油分离器出气管 AIR OUTLET PIPE,CRANKCASE VENT 1
20 D42-107-31 夹箍 CLAMP 1
21 S00002731 油气分离器回油管 OIL RETURN PIPE, CRANKCASE VENT FILTER 1
22 B00001563 喉箍 CLAMP 1 Q/SC1302-16~25
23 B00005549 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 GB/T16674.1-M6*12-DAC
24 D04-313-01 夹箍 CLAMP 1
