Description

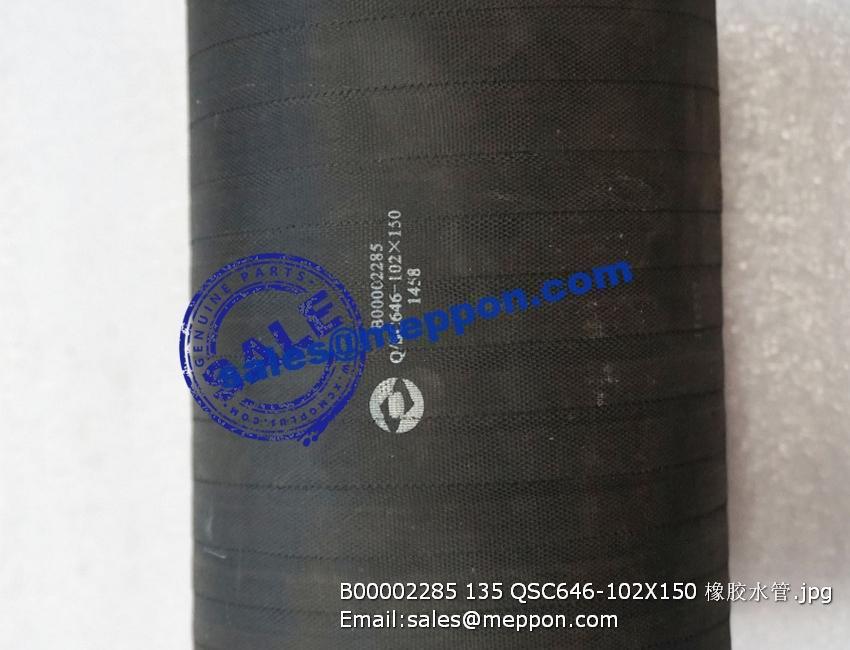

B00002285 135 QSC646-102X150 rubber hose PS08923

1 D16A-111-01A 压板 CLAMP 1
2 S00013038 风扇部件(吸风式) FAN ASSY, INFLOW TYPE 1
3 S00021518 六角法兰面螺栓 HEXAGON BOLTS 4
4 D16A-128-37 风扇垫块 SPACER,FAN 1
5 D16A-128-35 风扇垫块 SPACER,FAN 1
6 D16A-106-05 风扇胶带 BELT,FAN 1
7 B00002031 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M10*80-10.9
8 D16A-003-03 张紧轮部件 TENSIONER ASSY 1
9 B00000631 六角头螺栓 HEXAGON HEAD BOLTS-FULL THREAD 2 GB/T5783-M8*20
10 D16A-121-45 张紧轮固定板 FIXING PLATE,TENSIONER 1
11 D16A-136-01 输出带轮 PULLEY,FRONT END 1
12 D16A-107-14 风扇胶带轮 PULLEY,FAN 1
13 B00002147 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 4 Q/SC622-M8*45
14 D16A-010-01A 风扇轴承座压装部件 BASE ASSY(PRESSED),FAN BEARING 1
15 D06A-109-30 减振器螺栓 BOLT,CRANKSHAFT DAMPER 4
16 S00030105 减振器部件 NATURAL GAS CRANKSHAFT DAMPER ASSY 1
17 D06A-111-30 多楔带轮 MICRO-V,PULLY 1
18 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M10*30
19 D11-105-30A 发电机撑条 BRACE,ALTERNATOR 1
20 D11-102-09 发电机 ALTERNATOR 1
21 D11-103-30C 发电机支架 ALTERNATOR BRACKET 1
22 D11-104-01 隔套 SPACER 1
23 B00001990 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M10*100-10.9
