Description

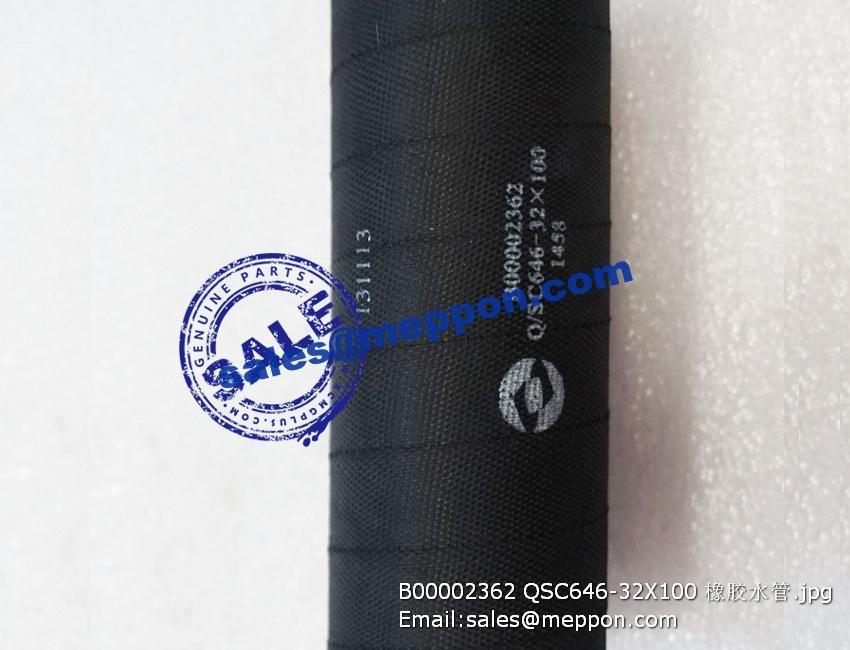

B00002362 QSC646-32X100 rubber hose PS08938
1 D06B-108-33 飞轮螺钉 BOLTS,FLYWHEL 8
2 B00001281 平垫圈 PLAIN WASHERS-NORMAL SERIES-PRODUCT GRADE A 8 GB/T97.1-14-200HV-Y
3 B00001045 孔用弹性挡圈-A型 CIRCLIPS FOR BORE TYPE-A 1 GB/T893.1-62
4 B00000234 滚动轴承 ROLLING BEARING-DEEP GROOVE BALL BEARINGS BOUNDARY 1 GB/T276-6305-2RS
5 D06B-001-31 飞轮与启动齿圈装配部件 FLYWHEEL AND GEAR RING ASSY 1
6 D06B-103-06 飞轮齿圈 FLYWHEEL GEAR RING 1
7 D02C-149-03 飞轮壳开口盖板 OPENING PLATE,FLYWHEEL HOUSING 1
8 B00002113 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 4 Q/SC622-M6*12-ZN.D
9 B00002058 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 12 Q/SC622-M12*40-10.9
10 D02C-101-19C 飞轮壳 FLYWHEEL HOUSING 1
11 D02A-163-02 内六角螺塞(Z3/4) HEXAGON SOCKET SCREW PLUG 1
12 B00002147 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 Q/SC622-M8*45
13 D02C-103-01 指针 POINTER 1
14 B00000846 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 1 GB/T6177-M8-Y
15 D02C-105-01 盖板垫片 GASKET,COVER 1
16 D02C-104-01 盖板 COVER 1
17 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 Q/SC622-M8*16
18 B00000300 O形橡胶密封圈 O-RING 1 GB/T3452.1-23.6*3.55
19 D02C-106-01 盘车孔塞 PLUG，BORE FOR BARRING 1
20 B00000102 圆柱销 PARALLEL PINS 2 GB/T119-A12*24
21 D02A-116-01 后盖板O型密封圈 O-RING,REAR COVER 1
22 D02A-118-07 曲轴后油封 REAR OIL RING,CRANKSHAFT 1
23 B00002114 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 8 Q/SC622-M6*16
24 D02A-115-01B 后盖板 REAR COVER 1
25 D02C-108-02 启动电机垫片 GASKET,STARTER 1
26 D02C-102-07 启动电机连接法兰 CONNECTING FLANGE,STARTER 1
27 D02C-109-02 垫片 GASKET 1
28 B00005110 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 1 GB/T16674.1-M6*10-10.9-HDAC
29 S00013524 起动机 STARTER 1
30 B00005113 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 GB/T16674.1-M6*20-HDAC
31 D11-115-02 起动继电器支架 BRACKET,STARTER 1
32 S00021203 起动继电器 STARTING RELAY 1
33 B00005106 六角法兰面螺母 HEXAGON NUTS WITH FLANGE-FINE PITCH THREAD 2 GB/T6177.1-M6-HDAC
34 B00005642 平垫圈 PLAIN WASHERS-NORMAL SERIES-PRODUCT GRADE A 3 GB/T97.1-16-200HV-DAC
35 D02C-110-01 十二角头螺栓 DODECAGON HEAD BOLTS 3
B00001549 复合式密封硬垫圈 COMPOSITE HARD SEAL GASKET 1 Q/SC1294-18
B00001728 六角头螺塞 HEXAGON HEAD SCREW PLUG 1 Q/SC587.1-M18*1.5
