Description

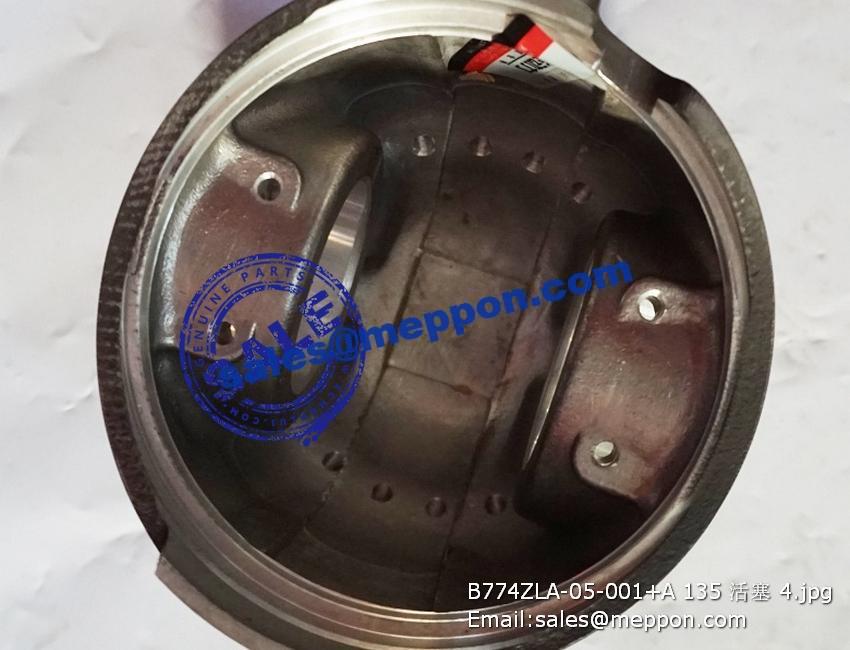

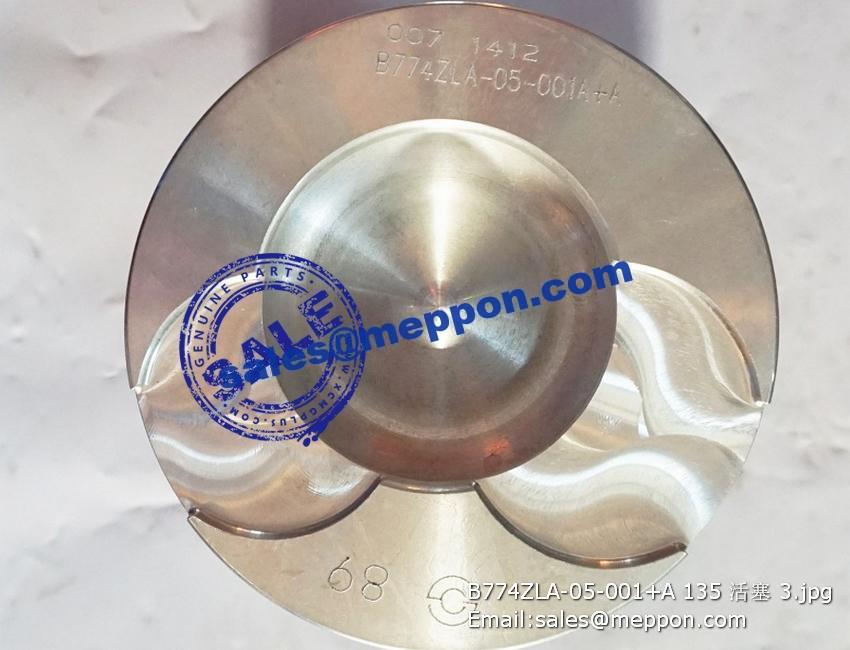

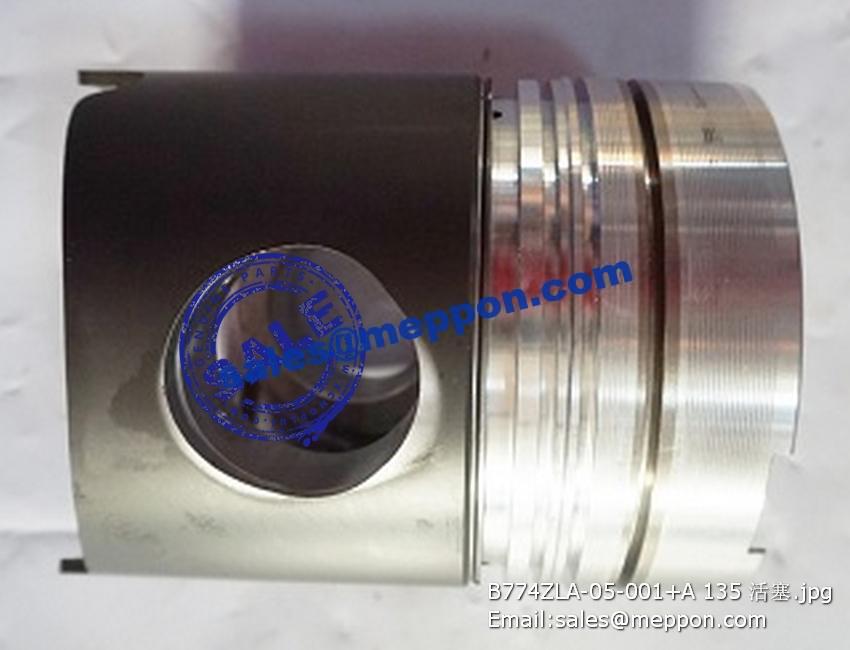

B774ZLA-05-001+A 135 piston PS09070 PS09071

1 D22-102-900 调温器 THERMOSTAT 1

1 D24A-130-901 弯管接头 JOINT ELBOW 1
2 D00-290-01 放气接头 BLEEDING JOINT 1
3 D24A-003-900 出水管焊接部件 WATER OULET TUBE ASSY (WELDED) 1
4 D24A-134-900 出水管垫片 WATER OUTLET PIPE GASKET 1
5 D02A-163-01 内六角螺塞(Z3/4) HEXAGONAL SOCKET HEAD PLUG 1
6 D04-309-01 内六角螺塞(Z3/8) HEXAGONAL SOCKET HEAD PLUG 1
7 S00008978 节温器座 BASE, THERMOSTAT 1
8 B00002134 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 4 Q/SC622-M8*20
9 D02A-164-01 内六角螺塞(Z1/2) HEXAGONAL SOCKET HEAD PLUG 1

1 D24B-106-33 管接头 PIPE JOINT 1
2 B00001829 铜垫圈 COPPER WASHER 1 Q/SC598-16*24
4 B00002111 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M6*12
5 D24B-003-30 内压片焊接部件 INSIDE CLAMP ASSY (WELDED AND ASSEMBLED) 1
6 D24B-119-30 夹箍 CLAMP 1
7 D24B-001-904 空压机进水管 AIR COMPRESSOR WATER INLET TUBE 1
8 D24B-002-904 空压机回水管 WATER OUTLET PIPE , AIR COMPRESSOR 1
9 D24B-104-902 弯管接头 JOINT ELBOW 1
10 B00001239 弹簧垫圈 SINGLE COIL SPRING LOCK WASHERS, NORMAL TYPE 1 GB/T93-12
11 D24B-117-900 夹箍 CLAMP 1
12 B00002047 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M12*25
13 B00002195 垫圈 WASHER 4 Q/SC642.1-03-16
14 B00002180 铰接螺栓 HINGE BOLT 2 Q/SC642.1-01-M16*1.5
15 D24B-131-900 接头 CONNECTOR 1
