Description

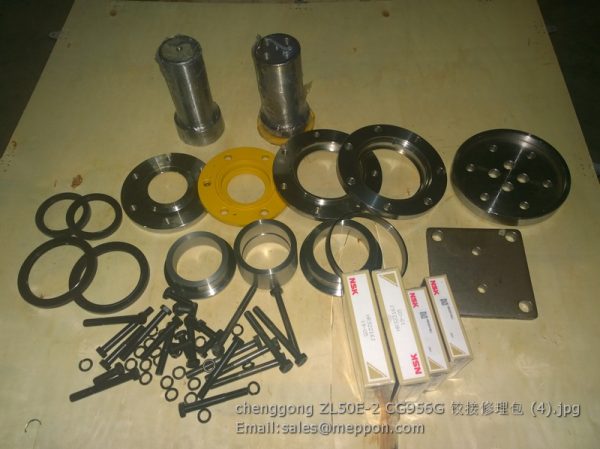

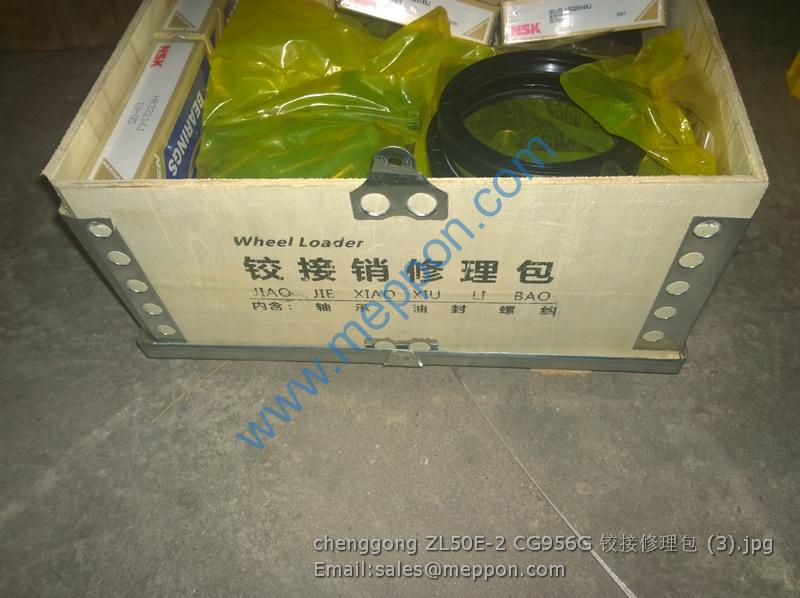

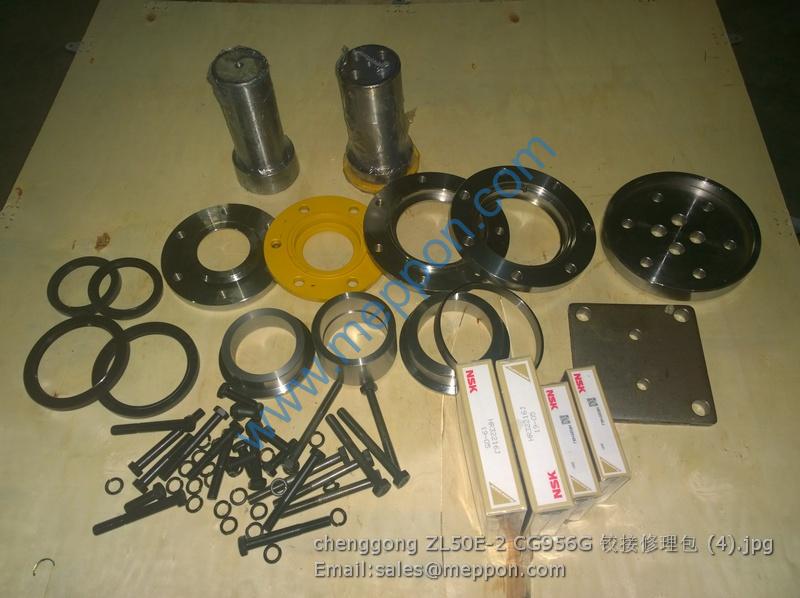

chenggong ZL50E-2 CG956G CG50.12-5 Z5E2120000007 joint pin kits CG50.12-9

Z5E2120000007 下铰接销轴 Lower Pin Shaft 1
CG50.12-10 挡环 Snap Ring 1
CG50.12-11 下铰接轴承 上盖 Lower Bearing Cover 1
CG50.12-12 上调整垫片 Upper Adjusting Shim 1组
CG50.12-13 挡环 Snap Ring 1
CG50.12-14 下铰接轴承 下盖 Lower Bearing Cover 1
CG50.12-15 挡环 Snap Ring 1
CG50.12-17 调整垫片 Adjusting Shim 1组
CG50.12-16 孔板 Hole Plate 1
CG50.12-26 止动垫圈 Thrust Washer 1
Z50E120000001 插销 Pin 1
Z5E21208T21 后车架 Rear Frame 1
GB/T5782-2000 螺栓M12×110 Bolt M12×110 7
GB/T93-1987 垫圈12 Washer 12 13
GB/T13871-1992 油封 100×125×12 Oil Seal 100×125×12 2
GB/T297-1994 轴承32216 Bearing 32216 2
GB/T5783-2000 螺栓M16×45 Bolt M16×45 4
GB/T5783-2000 螺栓M12×35 Bolt M12×35 6
GB/T91-1986 销4×20 Pin 4×20 1
GB/T97.1-2002 垫圈20 Washer 20 4
DTF-CO 螺母M22×1.5 Nut M20×1.5 4
GB/T5785-2000 螺栓M22×1.5×170 Bolt M20×1.5×160 4
GB/T97.1-2002 垫圈18 Washer 18 4
DTF-CO 螺母M18×1.5 Nut M18×1.5 4
GB/T5785-2000 螺栓M18×1.5×160 Bolt M18×1.5×160 4

CG50.12-3 压板 Plate 1
CG50.12-5 上铰接销轴 Upper Hinge Pin 1
CG50.12-4 锥形环 Cone-Shaped Ring 1
CG50.12-6 上铰接轴承 上盖 Bearing Cover 1
CG50.12-7 调整垫片 Adjusting Shim 1组
CG50.12-8 上铰接轴承 下盖 Lower Bearing Cover 1
Z50F1202 提升油缸 销轴总成 Pin Shaft 2
Z50F1203 动臂油缸 销轴总成 Pin Shaft 2
Z50F1211 翻斗油缸 销轴总成 Pin Shaft 1
Z5E21202T8 左前护泥总成 Left Front Fender Assembly 1
Z5E21203T8 右前护泥总成 Right Front Fender Assembly 1
Z50E120000005 垫片 Shim 1组
Z50E120000002 轴 Shaft 2
Z5E2120000004T8 锁紧杆 Lock Rod 1
Z5E21201T21 前车架总成 Front Frame 1
ZL40.14-1 垫圈 Washer 5
GB/T5782-2000 螺栓 M12×70 Bolt M12×70 4
GB/T93-1987 垫圈12 Washer 12 17
HG4-692-67 油封 PD70×90×12
Oil Seal PD70×90×12 2
GB/T297-1994 轴承32014 Bearing 32014 2
GB/T5783-2000 螺栓 M12×55 Bolt M12×55 2
GB/T5782-2000 螺栓 M12×90 Bolt M12×90 6
GB/T91-1986 销10×60 Pin 10×60 2
JB/T7940.1-1995 油杯M10×1 Grease Cup M10×1 7
GB/T5783-2000 螺栓 M12×25 Bolt M12×25 5
GB/T5783-2000 螺栓 M20×40 Bolt M20×40 6
GB/T93-1987 垫圈20 Washer 20 6
GB/T97.1-2002 垫圈20 Washer 20 6
