Description

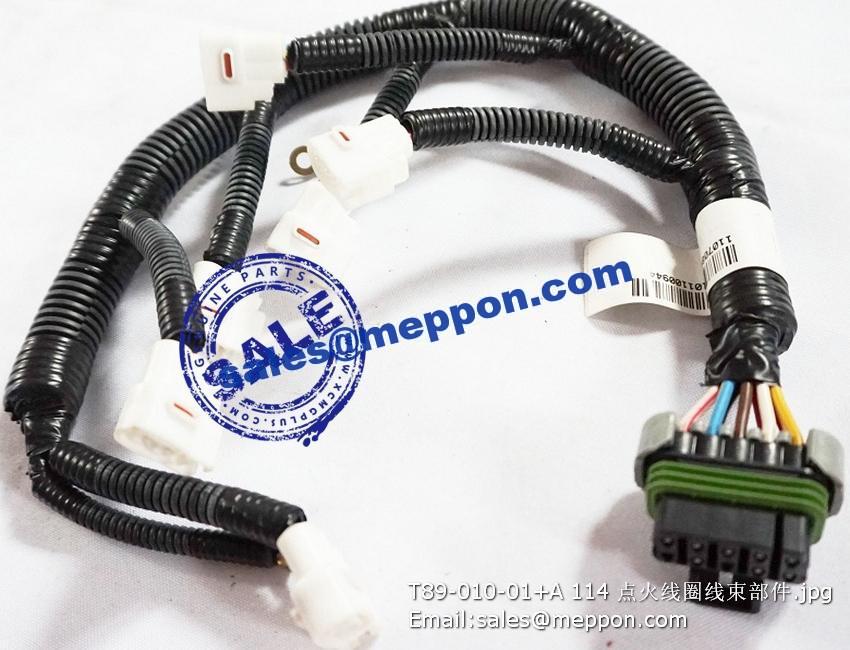

coil assy,ignit cables T89-010-01+A 114 PS13805
1 S00023804 发电机支架 ALTERNATOR BRACKET 1
2 B00004452 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 GB/T16674.1-M10*50-10.9
3 B00002003 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 3 Q/SC622-M10*30-ZN.D
4 W02F-115-01 活节螺栓 ADJUSTING BOLT 1
5 B00002000 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 2 Q/SC622-M10*25-ZN.D
6 B00000772 I型六角螺母 HEXAGON NUTS, STYLE 1 2 GB/T6170-M12-Y
7 G11-107-01 撑杆套 ROD SLEEVE 1
8 B00002139 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M8*30
9 W11B-000-02 发电机 ALTERNATOR 1
10 B00000834 六角法兰面螺母 HEXAGON NUTS WITH FLANGE 1 GB/T6177-M10-Zn.D
11 S00024848 发动机支架 ALTERNATOR BRACKET 1
12 B00002044 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 1 Q/SC622-M12*150-10.9-ZN.D
13 S00024618 多楔带 MICRO-V BELT 1
14 S00007895 惰轮部件 IDLER ASSY 1
15 W06E-102-03 皮带轮 PULLEY 1
16 W06D-000-01 减振器组件 CRANKSHAFT DAMPER GROUP 1
17 W06E-101-05 风扇胶带轮 PULLEY, FAN 1
18 B00000837 六角法兰面螺母 HEXAGON NUTS WITH FLANGE 1 GB/T6177-M12-Zn.D
20 B00001286 平垫圈 PLAIN WASHER 6 GB/T97.1-20-200HV-Y
21 B00004168 六角头螺栓 HEXAGON HEAD BOLTS 6 GB/T5782-M20*120-10.9
22 W16B-001-02 风扇轴承座压装部件 BASE ASSY (PRESSED), FAN BEARING 1
23 W16B-104-02 风扇皮带轮 PULLEY, FAN 1
24 B00005150 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 8 GB/T16674.1-M16*160-10.9-ZN.D
25 W16B-105-02 风扇连接法兰 FLANGE, FAN 1
26 B00005149 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 GB/T16674.1-M12*65-10.9-ZN.D
27 W16B-114-02 风扇胶带 BELT, FAN 1
28 W16R-001-01 风扇部件(吹风式) FAN ASSY, BLOW TYPE 1
29 B00002056 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 6 Q/SC622-M12*35-ZN.D
1 B00002084 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 9 Q/SC622-M14*35
2 W09A-104-01 六角头螺栓 HEXAGON HEAD BOLTS 2
3 W09A-109-01 定位销 DOWEL PIN 1
4 W07A-108-01 盖板 PLATE 1
5 W02A-133-01 曲轴后油封 CRANKSHAFT SEAL, BACK 1
6 W07A-102-01 中间齿轮 GEAR 1
7 W07A-105-01 凸轮轴齿轮 GEAR, CAMSHAFT 1
8 W07A-001-01 惰齿轮装配部件 IDLER GEAR ASSY 1
9 W07A-101-01 主动齿轮 DRIVE GEAR 1
10 W07A-104-01 喷油泵齿轮 GEAR, FUEL INJECTION PUMP 1
11 W07A-106-01 惰齿轮轴 SHAFT, IDLER GEAR 1
12 B00002082 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE 7 Q/SC622-M14*30
13 W02A-103-01 机体后端面钢板 REAR CYLINDER BLOCK PLATE 1
14 B00004990 圆柱销 PARALLEL PINS 2 GB/T119-A20*35
