Description

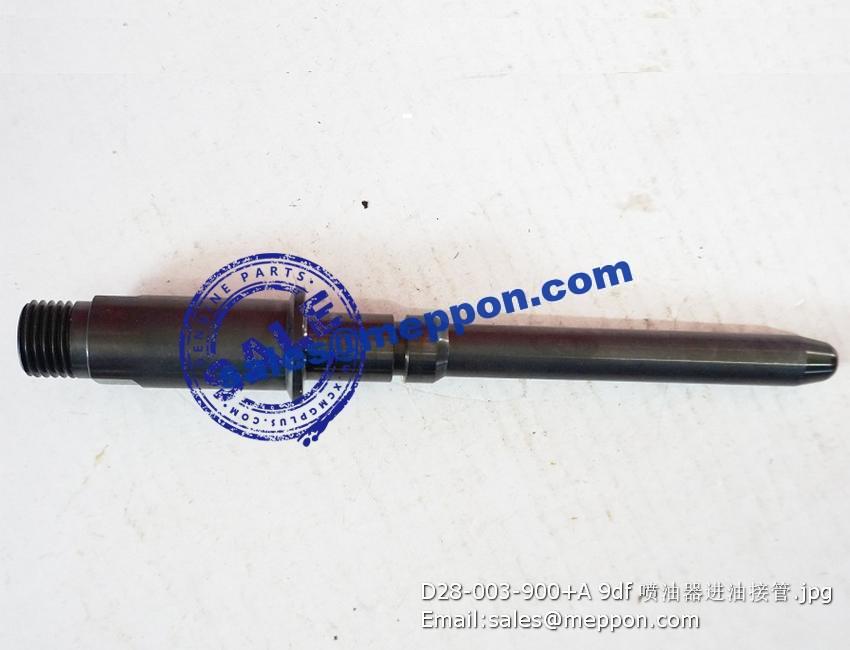

D28-003-900+A 9df injector housing PS12392
3 锁紧螺母 LOCKNUT C13BL-2N2766+A 12
4 平垫圈 WASHER U382A-2S6160+A 11
5 高温锥形锁紧螺栓 STUD C13BL-6V1426+A 9
6 高温锥形锁紧螺栓 STUD C13BL-6V1427+A 2
7 平垫圈 WASHER U382A-5M2894+A 2
8 隔圈 SPACER C13BL-1M7643+B 1
9 隔圈 SPACER C13BL-6B7469+B 1
10 锥度锁紧双头螺栓 STUD-TAPERLOCK U321B-1061793+A 1
11 平垫圈 WASHER U382A-9M6527+A 1
12 隔热板 SHEELD-HEAT C13BL-4P3306+A 1
1 空气滤清器组件 AIR CLEANER AS. KLB-14-000+A 1
2 Q/SC1302-40~64:喉箍 HOOP B00001573 2
3 引射管焊接部件 EJECTOR PIPE AS. C14BB-14BB003+A 1
4 橡胶钢丝软管 RUBBER HOSE WITH STEEL WIRE WGC-08-004+A 1
5 夹箍 CLAMP C14BL-7L6326+A 1
6 GB/T5783-M10*30:六角头螺栓 BOLT B00000511 2
*1 机油泵部件 PUMP GP-ENGINE OIL (TWO SECTION GEAR) C15AB-6N2642+A 1
2 吸油管 ELBOW-SCAVENGE LINE C15AL-4N5353+A 1
3 垫片 GASKET C15AL-2P8746+B 1
4 六角头螺栓 BOLT U311A-0S1590+A 3
5 六角头螺栓 BOLT U311A-0S1619+A 1
6 六角头螺栓 BOLT U311A-3B1915+A 2
7 平垫圈 WASHER U382A-5M2894+A 4
**8 机油泵试验部件 ENGINE OIL PUMP AS. C15AB-4W2448+A 1
**9 驱动齿轮 GEAR-OIL PUMP DRIVE C15AL-7W0507+A 1
**10 半圆键 KEY-WOODRUFF-10 U351A-8M5599+A 1
**11 六角头螺栓 BOLT U311A-0S1590+A 1
**12 垫圈 WASHER-HARD U382A-1P7346+A 1
***13 吸油泵体部件 BODY ASSEMBLY-SCAVENGE PUMP C15AB-4W2321+A 1
***14 泵体部件 BODY AS．-OIL PUMP C15AB-4W2322+A 1
***15 主动轴部件 DRIVE SHAFT AS. C15AB-2P6245+A 1
***16 从动轴部件 SHAFT ASSEMBLY-OIL PUMP C15AB-8S0493+A 1
***17 吸油泵齿轮 GEAR-OIL PUMP(GEAR-SCAVENGE PUMP) C15AL-2P2546+A 1
***18 机油泵隔板 SPACER-OIL PUM C15AL-2P1781+A 1
***19 半圆键 KEY-WOODRUFF-10 U351A-1B8709+A 1
***20 GB/T5782-M10*90:六角头螺栓 BOLT B00000412 3
***21 卸压阀部件 PRESSURE RELIEF VALVE AS. C15AB-4N8385+A 1
***22 卸压阀盖 COVER-OIL PUMP BYPASS VALVE C15AL-4N3732+A 1
***23 GB/T5782-M8*50:六角头螺栓 BOLT B00000485 1
***24 GB/T97.1-8-200HV-Y:垫圈 WASHER-HARD B00001299 1
(25) 吸油泵体 BODY-SCAVENGE PUMP C15AL-4N4054+A 1
(26) 轴套 BEARING-SLEEVE C15AL-8S6511+A 4
(27) 泵体 BODY-OIL PUMP C15AL-8N8635+A 1
(28) GB/T308-10:钢球 STEEL BALL B00000273 1
*(29) 惰齿轮轴部件 SHAFT ASSEMBLY-OIL PUMP IDLER GEAR C15AB-2P1170+A 1
(30) 主动轴 DRIVE SHAFT C15AL-2P0691+A 1
(31) 机油泵齿轮 GEAR-OIL PUMP C15AL-2P2545+A 2
(32) 从动轴 SHAFT-OIL PUMP C15AL-8S0490+A 1
(33) 惰齿轮轴 SHAFT-OIL PUMP IDLER GEAR C15AL-2P1169+A 1
(34) GB/T308-8:钢球 STEEL BALL B00000284 1
(35) 圆柱销 DOWEL U362A-1F1006+A 1
***36 GB/T97.1-10-200HV-Y:垫圈 WASHER B00001275 3
***37 GB/T93-10:弹簧垫圈 SPRING WASHER B00001237 3
(38) 定位套 RETAINER C15AL-15AL001+A 2
