Description

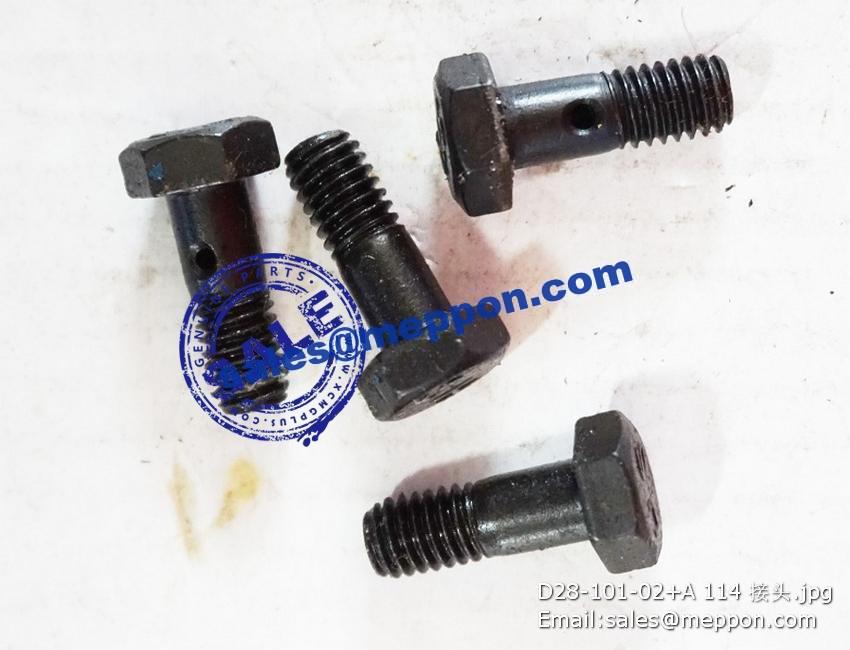

D28-101-02+A 114 joint 4110000036377 PS12394 4110000997389 W47008212 860123896

*1 机油冷却器芯子机加工部件 CORE AS．-OIL COOLER C18AB-7N0165+A 1
*2 机油滤清器座装配部件 BASE GP-FILTER (OIL) C18AB-8N4457+A 1
3 机油滤清器部件 FILTER AS-OIL C18AB-2P4004+A 1
5 垫片 GASKET C18AL-2W4561+B 1
6 六角头螺栓 BOLT U311A-3B1915+A 1
7 硬垫片 WASHER-HARD U382A-5M2894+A 6
9 六角头螺栓 BOLT U311A-1D4540+A 1
10 水泵出水管 PIPE-PUMP OUTLET C18AL-2W5240+A 1
11 垫片 GASKET C18AL-5S6051+B 1
12 O型密封圈 SEAL-O RING U641A-8M4432+A 2
13 内方头锥管螺塞 PLUG-PIPE (SQUARE COUNTERSUNK) U561C-1B5174+A 1
14 六角锥管螺塞 PLUG-PIPE U562A-3J5390+A 1
15 内方头锥管螺塞 PLUG-PIPE (SQUARE COUNTERSUNK) U561C-3B0551+A 4
16 盖板 COVER C18AL-4N3840+B 1
17 垫片 WASHER C18AL-4N3841+B 1
18 端盖 BONNET C18AL-6N0122+A 1
23 六角头螺栓 BOLT U311A-1B9575+A 3
U311A-1B2790+A 2
U311A-0S1618+A 2
U311A-0S1617+A 2
25 十二角头螺栓 BOLT-12 POINT HEAD C18AL-1T0765+A 1
26 六角头螺栓 BOLT U311A-0L2070+A 1
28 硬垫片 WASHER-HARD U382A-9M1974+A 10
29 六角头螺栓 BOLT U311A-1A2029+A 6
30 六角头螺栓 BOLT U311A-0S1591+A 1
(34) 壳体 SHELL-CORE C18AL-7S6394+A 1
(35) 管束部件 BUNDLE AS．-TUBE C18AB-18AB005+A 1
(36) 机油滤清器座 BASE AS．-OIL FILTER C18AL-9Y7149+A 1
(37) 六角头螺栓 BOLT U311A-0S1588+A 3
(39) 六角头螺栓 BOLT U311A-0L1352+A 1
(43) 盖 COVER C18AL-9Y6859+A 1
(44) 垫片 GASKET C18AL-9Y6860+A 1
(45) 弹簧 SPRING C18AL-8M3182+A 2
(46) 阀体 PLUNGER-OIL COOLER PELIEF VALVE C18AL-9M0853+A 2
(47) 螺套内接头 TIE-IN C18AL-2P2537+A 1
1 机油滤清器机油管焊接部件 TUBE AS. C19AB-8N7318+B 1
2 机油滤清器机油管焊接部件 TUBE AS. C19AB-8N7315+A 1
3 机油泵吸油网焊接部件 BELL AS. C19AB-19AB001+A 1
4 机油泵油管加工部件 TUBE AS. C19AB-2P1739+A 1
5 夹头 CLIP C19AL-4L3641+A 1
6 活塞冷却喷嘴 ORIFICE C19AL-2S1541+A 6
7 O型密封圈 SEAL U641A-1142687+A 3
8 垫片 GASKET C19AL-2M5407+B 1
9 垫片 GASKET C19AL-8M0904+B 1
10 隔圈 SPACER C19AL-1L5081+A 1
11 六角头螺栓 BOLT U311A-0S1571+A 1
12 平垫圈 WASHER U382A-5M2894+A 1
13 垫片 GASKET C19AL-7F7590+B 1
14 六角头螺栓 BLOT U311A-0S1594+A 3
15 六角头螺栓 BLOT U311A-0T0102+A 2
16 单耳止动垫片 LOCK C19AL-0L0364+A 1
17 单耳止动垫片 LOCK C19AL-5H3204+A 1
18 六角头螺栓 BLOT U311A-0L2070+A 1
19 六角头螺栓 BLOT U311A-1A2029+A 1
20 止动垫片 LOCK C19AL-8S8874+A 1
